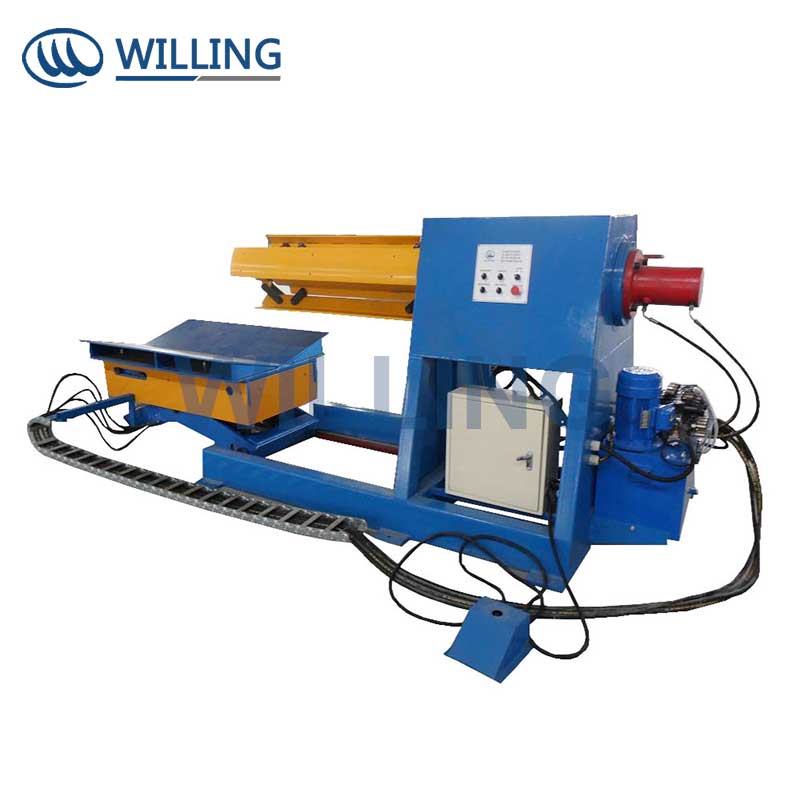

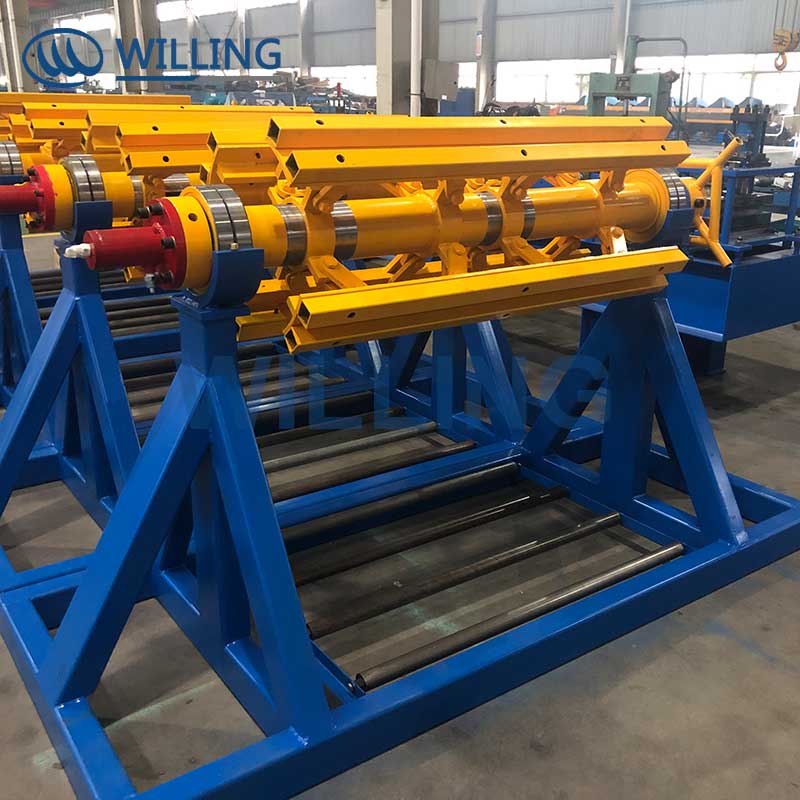

Hydraulic Coil Unwinder
This hydraulic uncoiler efficiently unwinds metal coils with precision. Its robust design includes hydraulic expansion for secure gripping and adjustable speed control for smooth material feeding.
Technical Specifications
Overview
Hydraulic Coil Unwinder System
This industrial-grade hydraulic coil unwinder is designed for efficient and safe material handling in metal processing lines. The system integrates a lifting dolly, a robust uncoiler with a pressing arm, and a precision hydraulic system to ensure smooth, controlled coil feeding. It is engineered to minimize material pendant and maximize productivity for roll forming and stamping applications.
Lifting Dolly Specifications
- Max Capacity
- 10 tons
- Operating Speed
- 6 m/min
- Max Lifting Height
- 550 mm
- Max Moving Distance
- 3000 mm
Uncoiler Specifications
- Max Load Capacity
- 10 tons
- Compatible Inner Diameters
- 508mm610mm
- Max Coil Width
- 1500 mm
- Max Center Adjustment
- 250 mm
Hydraulic System
System Performance
16 Mpa
Max Pressure
10.5 KW
Motor Power
0.9 Mpa
Air Pressure
