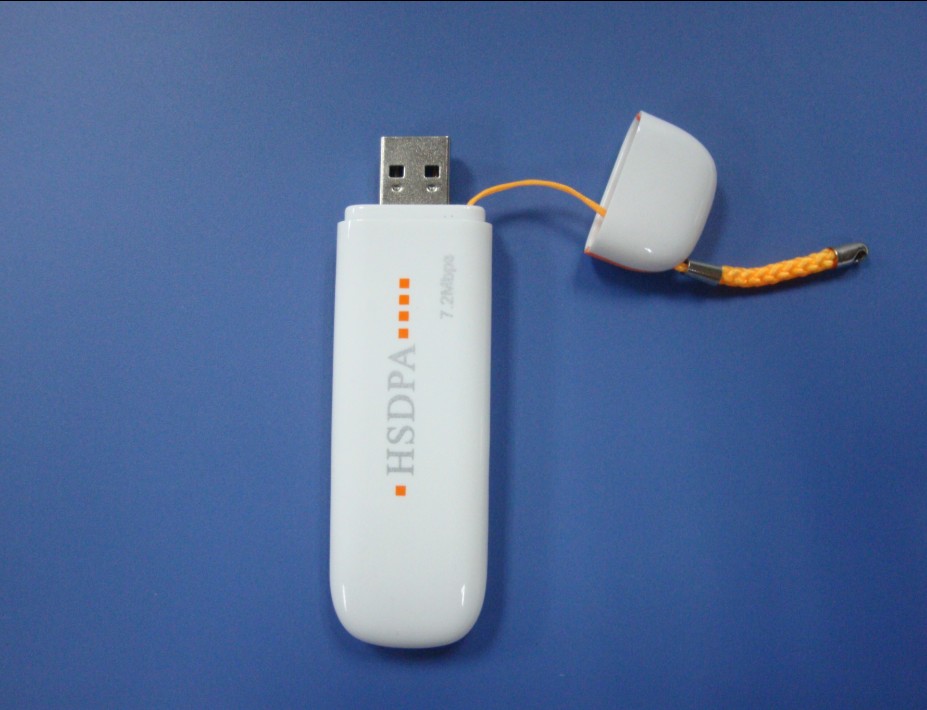

HSDPA/UMTS 900/2100 MHz 7.2 Mbps USB Modem
This high-speed HSDPA/UMTS modem operates on 900/2100 MHz frequencies, achieving data rates up to 7.2 Mbps. It supports Windows CE 5.0 and 6.0 operating systems and provides mobile broadband access through a USB interface.
Technical Specifications
Overview
High-Speed Mobile Connectivity
This HSDPA/UMTS USB modem provides reliable wireless internet access with downlink speeds of up to 7.2 Mbps. Designed for versatility, it supports a wide range of frequency bands including UMTS and GSM/GPRS/EDGE, ensuring broad network compatibility. The device features plug-and-play functionality with auto-installation, making it an efficient solution for mobile data communication needs.
Performance
Data Transmission Rates
7.2 Mbps
HSDPA Downlink
384 Kbps
UMTS Uplink
384 Kbps
EDGE Uplink
Technical Specifications
- Hardware Features
- USB 2.0 InterfaceMicro SD SlotSMS SupportVoice Call Facility (Optional)USSD Function (Optional)
- Chipset
- Qualcomm MSM 6280
Compatibility
Supported Operating Systems
- Windows 2000
- Windows XP
- Windows Vista
- Windows 7
- Windows 8
- Windows CE
- Ubuntu 8.04
- Mac OS X 10.4 or later
Frequency Bands
Supported Network Bands
| Network Type | Frequencies (MHz) |
|---|---|
| UMTS | 850/900/1900/2100 |
| GSM/GPRS/EDGE | 850/900/1800/1900 |
Environmental & Physical
Dimensions & Weight
88 mm
Length
26 mm
Width
10 mm
Height
22 g
Weight
Operating Conditions
- Operation Temperature: -20 to 55°C
- Storage Temperature: -30 to 65°C
- Humidity: Up to 93%
- Vibration Resistance: 15g peak (10-500Hz)
