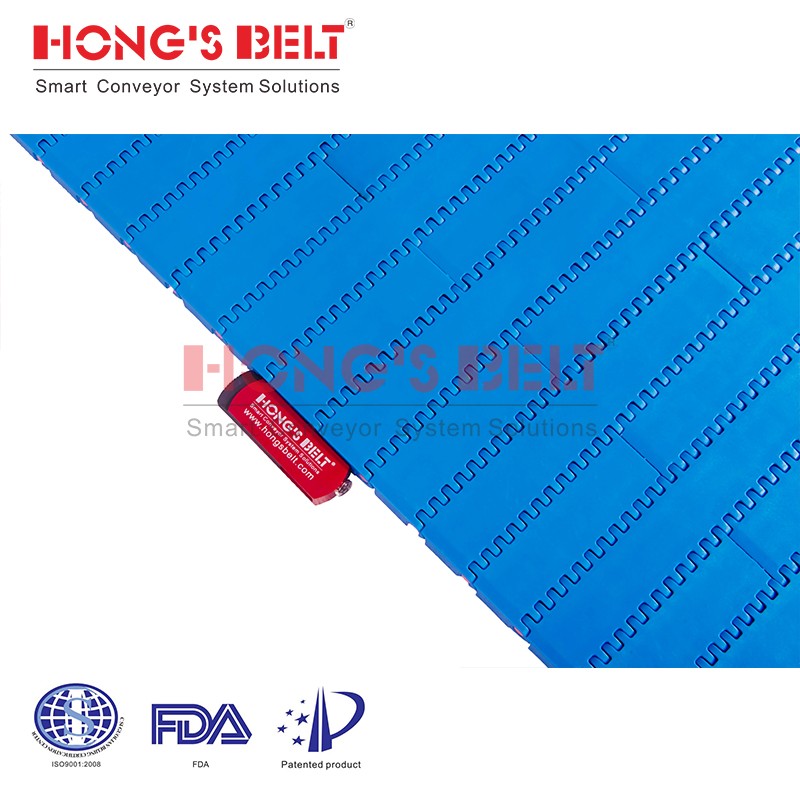

HS-4800A Modular Plastic Conveyor Belt
The HS-4800A modular plastic conveyor belt is designed for heavy-duty use, particularly in the corrugated industry. Its modular design allows for easy assembly, customization, and maintenance.
Technical Specifications
Overview
Modular Plastic Conveyor Belt HS-4800A
The HS-4800A is a robust modular plastic conveyor belt specifically engineered for heavy-duty applications in the corrugated industry. Its modular design facilitates easy assembly, maintenance, and customization, significantly reducing operational downtime. Built from high-quality materials, this belt offers excellent resistance to wear, chemicals, and temperature variations, ensuring consistent performance in demanding industrial environments.
Technical Specifications
Maximum Load Capacity
1.2 tons/m²
Max Load
- Pitch
- 25.4 mm
- Thickness
- 12.5 mm
- Minimum Width
- 76 mm
- Rod Diameter
- 4.9 mm
- Open Area
- 0%
- Working Temperature
- -40°C to 260°C
Configuration & Materials
Available Colors
WhiteBlueGrayNatureDark-brown

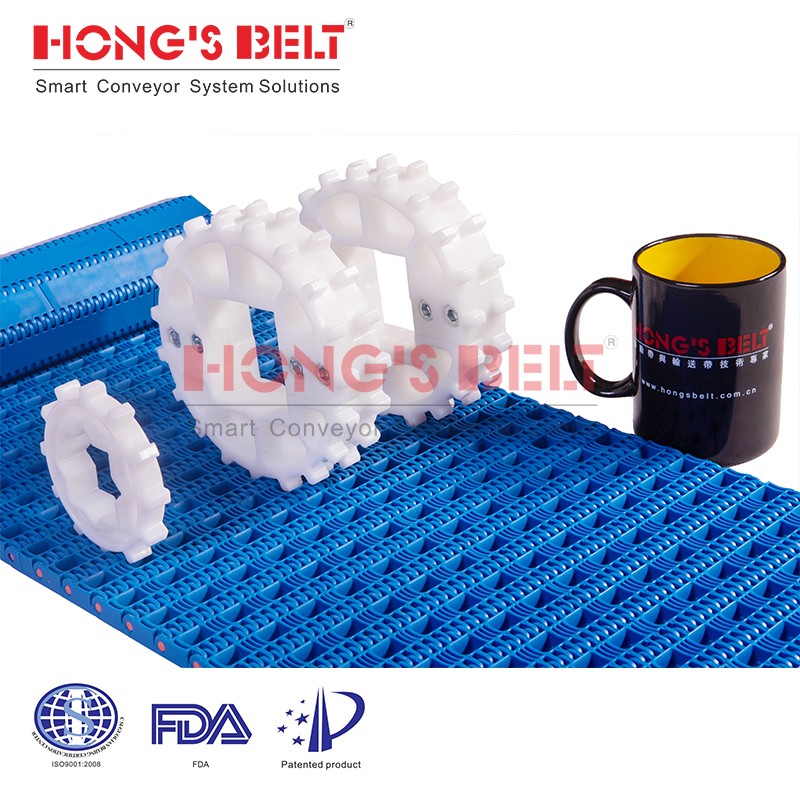

Sprocket Specifications
- Sprocket Sizes: 12T, 15T, 19T-Split
- Bore Types: Square bore and round bore
- Materials
- PPPOMPEPA
Features
Key Features
- Floating in water
- Food defrosting capable
- Maintenance-free design
- Easy to clean
- High load capability
- Certifications
- FDAEU
Applications
Industry Applications
| Sector | Industries |
|---|---|
| Food Industry | Meat, Poultry, Sea Food, Bakery, Snack Food, Fruit & Vegetables |
| Non-food Industry | Automotive, Tire, Packaging, Printing/Paper, Postal, Corrugated Cardboard, Can/PET Manufacturing, Textile |
