HRC Industrial Fuse
This HRC fuse is lightweight and small in size, offering a high breaking capacity. It is designed for reliable quality and performance in a variety of industrial applications.
Technical Specifications
Product Overview
Industrial HRC Fuse Links

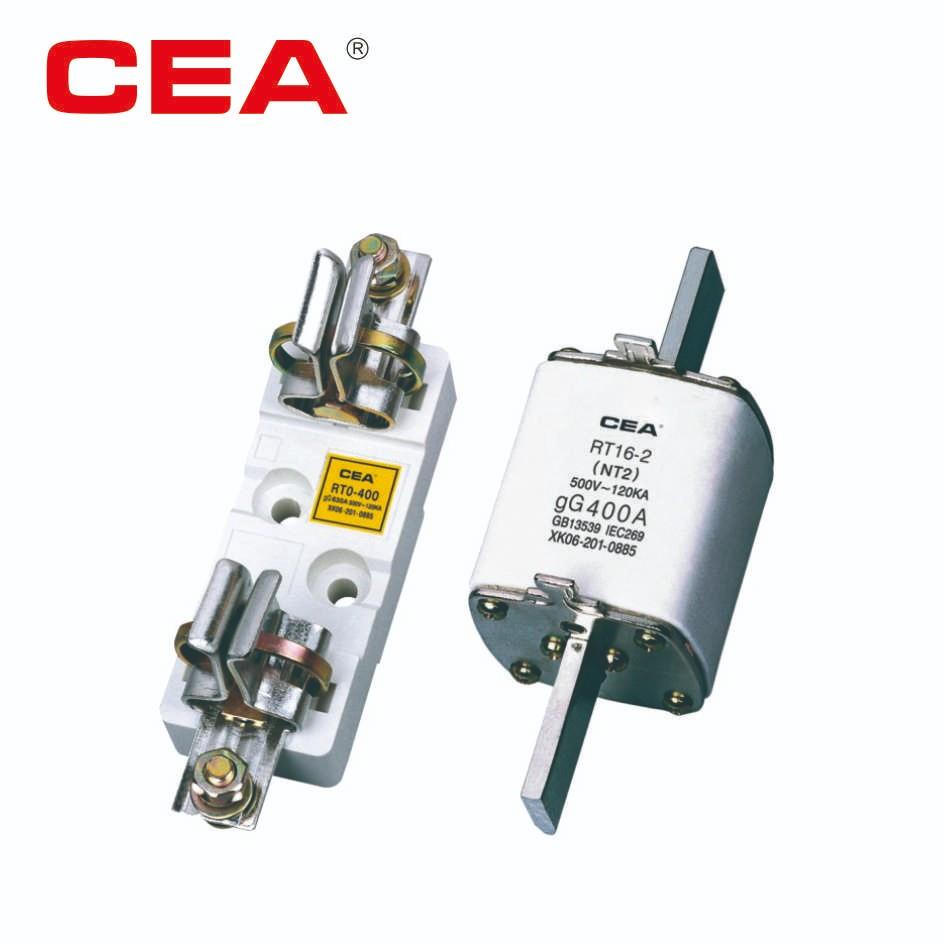

These industrial HRC (High Rupturing Capacity) fuse links are designed for robust overcurrent protection in demanding electrical environments. Featuring a durable porcelain body with copper clamps and blades, they offer reliable performance and high breaking capacity. The square-bodied design includes a double indicator system, allowing for easy circuit monitoring and maintenance in distribution boxes and grid applications.
Technical Specifications
Standards Compliance
IEC60269-2-1VDE0636
- Rated Voltage
- 500 VAC / 250 VDC
- Operating Frequency
- 45-62 Hz
- Available Sizes
- NH00NH0NH1NH2NH3NH4
Materials & Construction
Materials
- Porcelain body
- Copper clamp
- Copper blades
Performance Metrics
Available Current Ratings
- 2
- 4
- 6
- 10
- 16
- 20
- 25
- 32
- 35
- 40
- 50
- 63
- 80
- 100
- 125
- 160
- 200
- 224
- 315
- 350
- 400
- 630
- 800
- 1,000
- 1,250
Applications
- Typical Use Cases
- Distribution BoxesDisconnectorsState Grid
