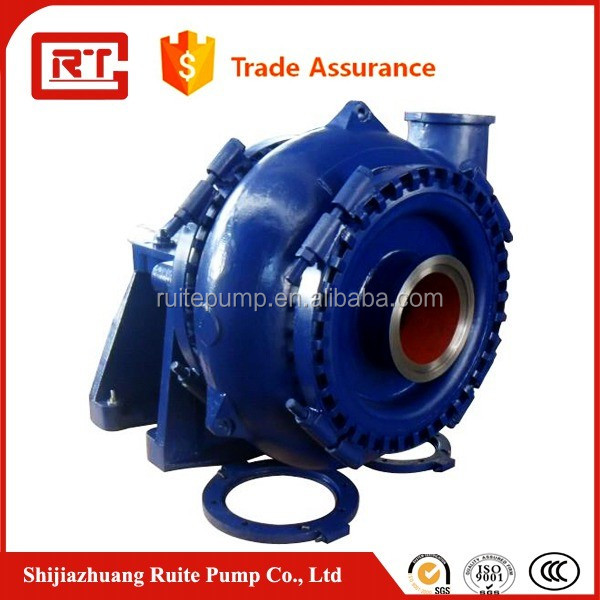

Horizontal Sand Gravel Pump
This single-stage, centrifugal horizontal pump is designed for handling sand and gravel. Its large flow path allows for the passage of large particle solids.
Technical Specifications
Product Overview
High-Performance Sand & Gravel Pumping
The RGM series is a single-stage, single-casing centrifugal horizontal pump specifically engineered for dredging and industrial slurry applications. Its large flow path is designed to handle extraordinarily large particle solids without clogging, ensuring continuous operation in harsh environments. Constructed with high-chrome alloy liners, this pump offers an extended service life and simplified maintenance for professional B2B operations.
Technical Performance
Key Performance Metrics
1,500 l/s
Maximum Flow Rate

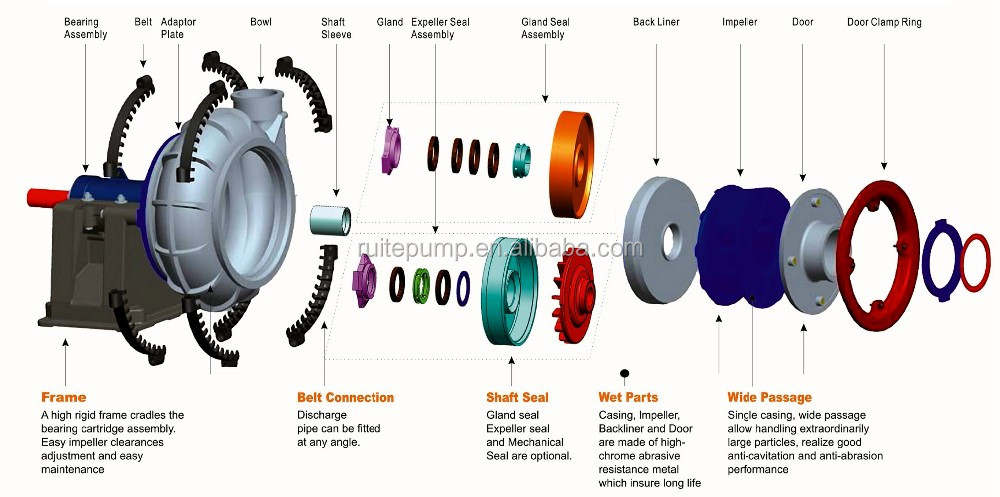

Design & Construction
Design Characteristics
- Single stage, single casing centrifugal design
- Horizontal cantilevered construction
- Wide flow passage for large particle handling
- High rigid frame cradling the bearing cartridge
- Flexible belt connection for adjustable discharge angles
Materials & Durability
- Wear-Resistant Materials
- High Chrome (A05, A07, A33, A49)Stainless Steel (SS304, SS316)RubberCeramic
Components & Maintenance
Replaceable Wet Parts
- Slurry pump impeller
- Slurry pump liner
- Throat bush
- FPL insert
- Casing
- Back liner
- Door

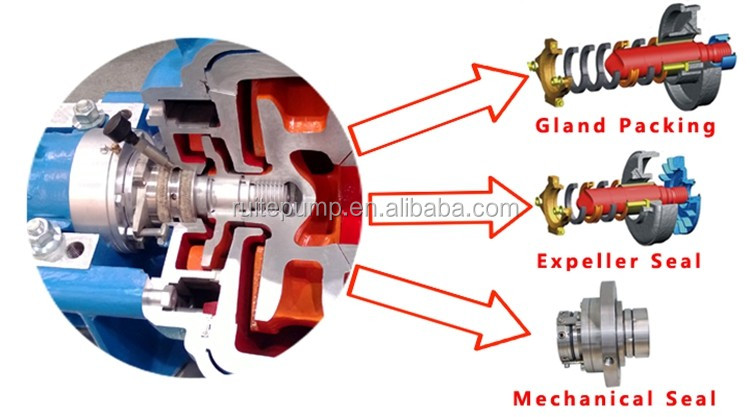

Sealing Options
Shaft Seal Configurations
Gland SealExpeller SealMechanical Seal
Applications
Primary Applications
- River sand pumping
- Mining and mineral processing
- Dredging operations
- Heavy-duty slurry transfer
- Corrosive fluid handling
Model Specifications
THG Series Dimensional Data
| Model | A (mm) | B (mm) | C (mm) | Weight (kg) |
|---|---|---|---|---|
| 6/4D-THG | 1,006 | 492 | 432 | 460 |
| 8/6E-THG | 1,286 | 622 | 546 | 1,120 |
| 10/8F-THG | 1,591 | 857 | 762 | 2,250 |
| 12/10G-THG | 2,010 | 1,207 | 851 | 4,450 |
| 16/14TU-THGH | 2,367 | 1,460 | 1,200 | 12,247 |
Certifications
- Quality Assurance
- ISO 9001SGS CertifiedOEM Parts Compatible
