High Chrome Slurry Pump for Dredging and Mining
This slurry pump is designed for transporting abrasive slurries containing solid particles in industries like mining and metallurgy. It is suitable for applications such as metallurgical mill pulp conveying, hydraulic ash thermal power plants, and river dredging.
Technical Specifications
Product Overview
Heavy-Duty Slurry Pump Solution
This high-performance centrifugal slurry pump is engineered for demanding industrial applications, including mining, dredging, and power generation. Featuring a robust double-casing horizontal design, it excels at transporting abrasive solid particles and corrosive slurries. Built with high-chrome alloy or rubber wet-end components, the pump offers exceptional durability, wear resistance, and operational flexibility for heavy-duty environments.
Technical Specifications
Bearing Assembly Features
- High rigidity shaft for heavy-duty conditions
- Cartridge bearing assembly
- Grease-lubricated bearings
- Labyrinth seals to prevent contamination
- Stainless steel shaft sleeve with O-rings

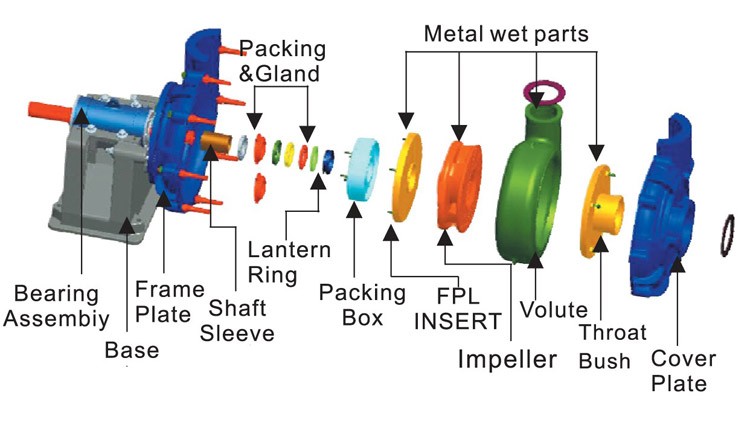

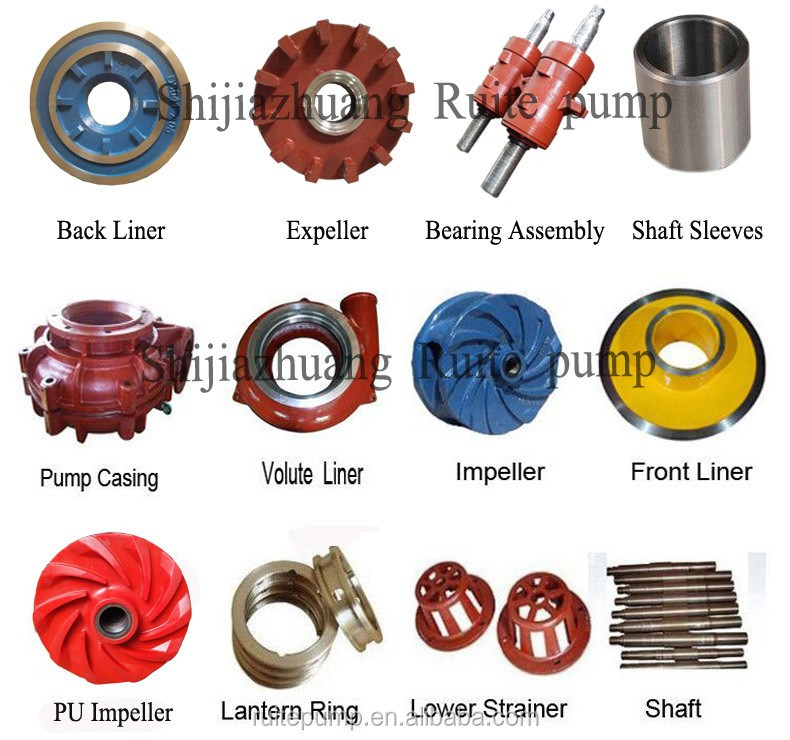

Key Components
- Impeller with pump-out vanes
- Adjustable bearing assembly
- Reinforced casing with ribs
- Interchangeable wet ends
- Pump Type
- Single stage, single suction, centrifugal, double-casing horizontal pump
- Construction Materials
- High-Chrome AlloyRubberGray IronDuctile IronStainless Steel
Applications
Suitable Industries
MiningElectric PowerMetallurgyCoal ProcessingEnvironmental ProtectionChemical IndustryDredging
Performance Data
Performance Metrics (Representative)
| Model | Max Power (kW) | Efficiency (%) |
|---|---|---|
| 1.5/1B-TH | 15 | 40 |
| 3/2C-TH | 30 | 55 |
| 6/4E-TH | 120 | 65 |
| 8/6R-TH | 300 | 71 |
| 16/14TU-TH | 1,200 | 80 |
