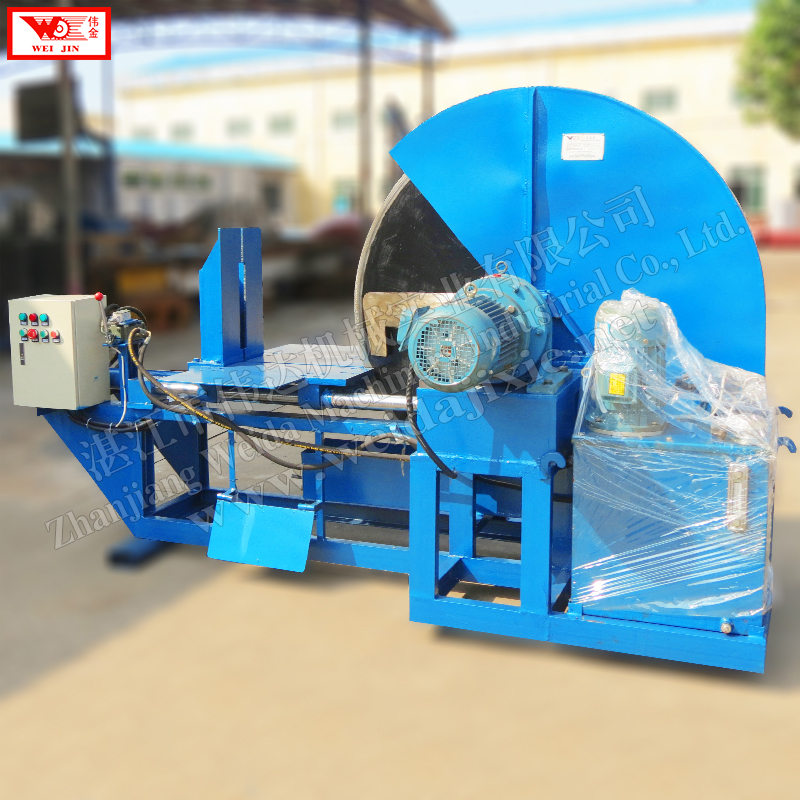

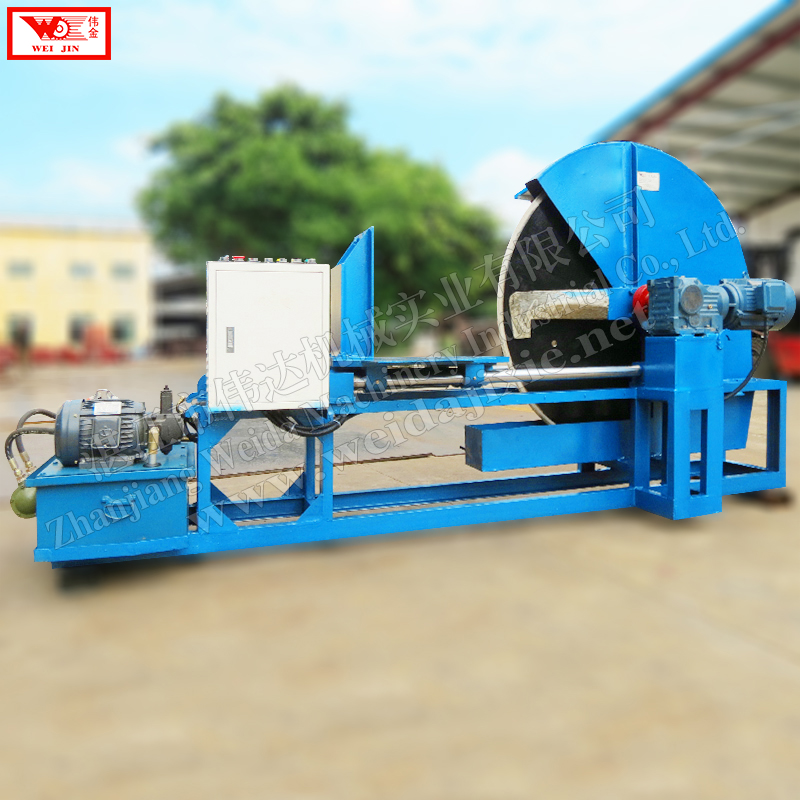

Horizontal Rubber Block Cutting Machine

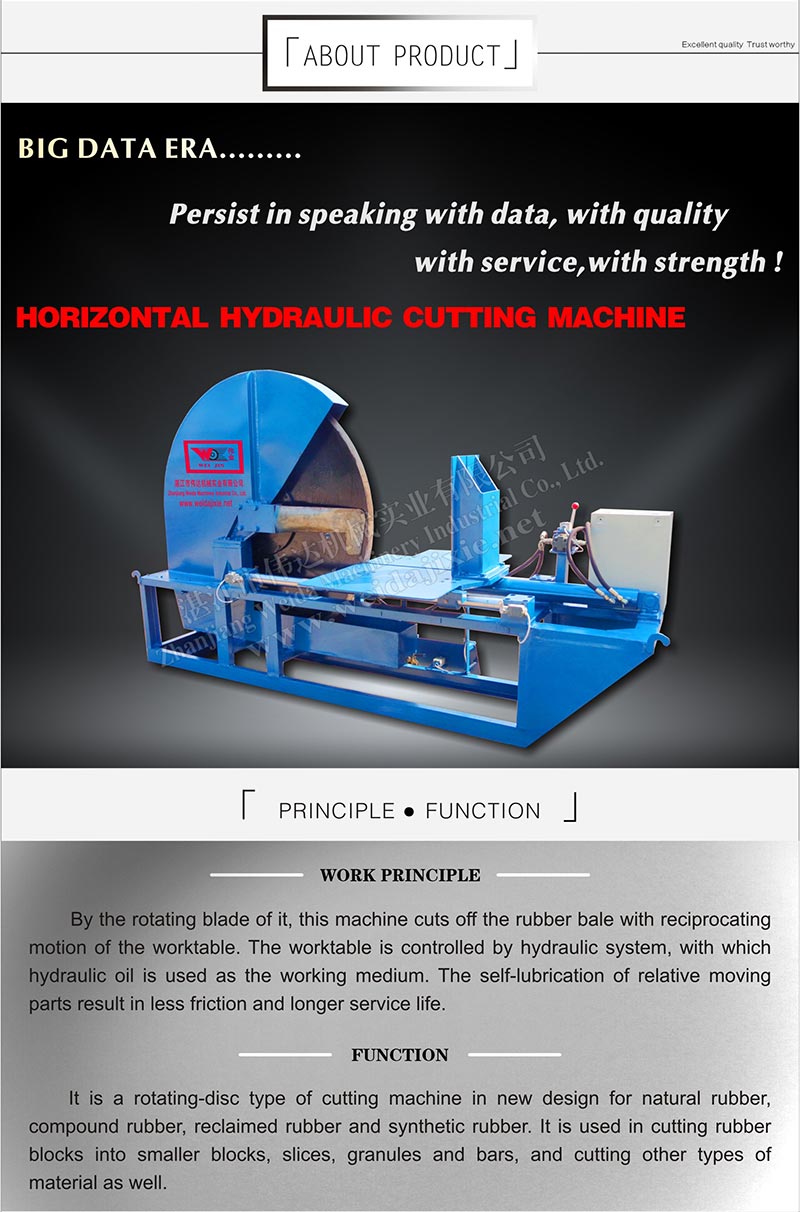

This rotating-disc cutting machine is designed for processing natural, compound, reclaimed, and synthetic rubber. It cuts rubber blocks into smaller blocks, slices, granules, and bars.
Technical Specifications
Product Overview
Horizontal Rubber Block Cutting Machine
This horizontal rubber block cutting machine is a specialized, rotating-disc type cutter designed for high-efficiency processing of various rubber materials, including natural, compound, reclaimed, and synthetic rubber. It is capable of reducing rubber blocks into smaller, manageable forms such as slices, granules, bars, and blocks, making it a versatile tool for industrial rubber processing lines. With robust construction and hydraulic control, the machine ensures consistent performance, durability, and precise material handling for demanding production environments.
Technical Specifications
Main Technical Specifications
| Specification | WQJ-1000 | WQJ-1300 |
|---|---|---|
| Blade Diameter | 1000mm | 1300mm |
| Rotational Speed | 50r/min | 50r/min |
| Power | 4+2.2kw | 4+2.2kw |
| Working Pressure | 5Mpa | 5Mpa |
| Production Capacity | 2t/h | 3t/h |
Capabilities
- Compatible Materials
- Natural RubberCompound RubberReclaimed RubberSynthetic Rubber
- Output Forms
- BlocksSlicesGranulesBars
Operational Features
Performance Metrics
- Hydraulic Operation
- Yes
