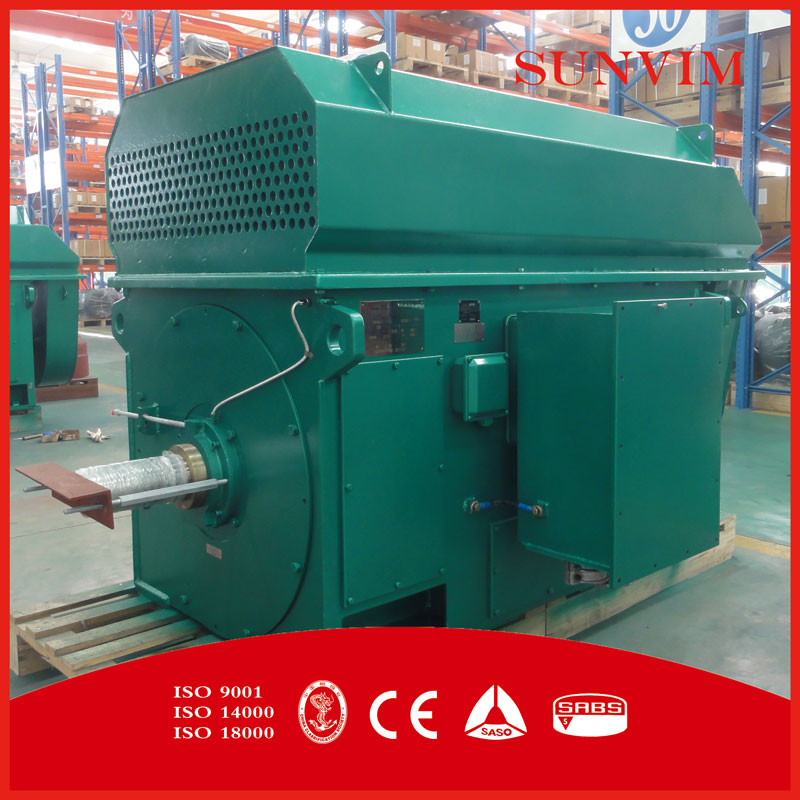

High Voltage Three-Phase Asynchronous Motor
This high voltage three-phase asynchronous motor is designed for heavy-duty industrial applications. It is available in both 6kV and 10kV configurations.
Technical Specifications
Product Overview
Industrial High Voltage Power
The YKK series is a high-performance squirrel-cage induction motor engineered for heavy-duty industrial environments. Featuring a robust box-type construction, this motor offers exceptional rigidity and efficient operation with minimal noise and vibration. Designed for reliability, it provides an ideal solution for demanding applications in mining, metallurgy, and power generation sectors.
Technical Specifications
- Rated Voltage
- 6KV10KV
- Protection Class
- IP44/IP54
- Cooling Method
- IC611
- Insulation Class
- F
- Mounting Arrangement
- IMB3
Quality & Standards
Certifications
ISO 9001ISO 14000ISO 18000CESABS

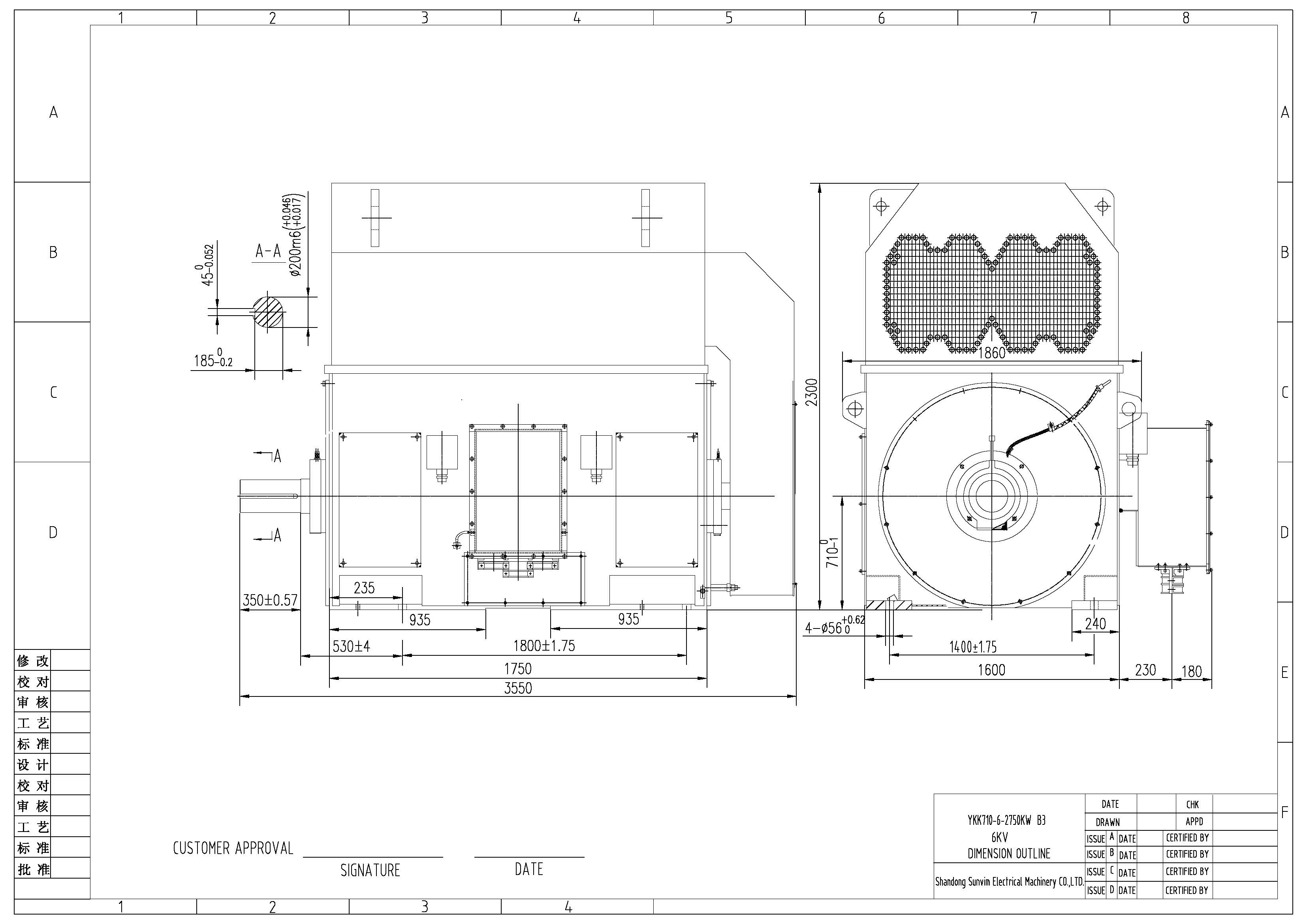

Physical Dimensions
Key Physical Dimensions
| Parameter | Value | Unit |
|---|---|---|
| Total Length | 3,550 | mm |
| Stator Diameter | 1,600 | mm |
| Height | 2,300 | mm |
