Technical Specifications
Product Overview
High Voltage Overcurrent Protection

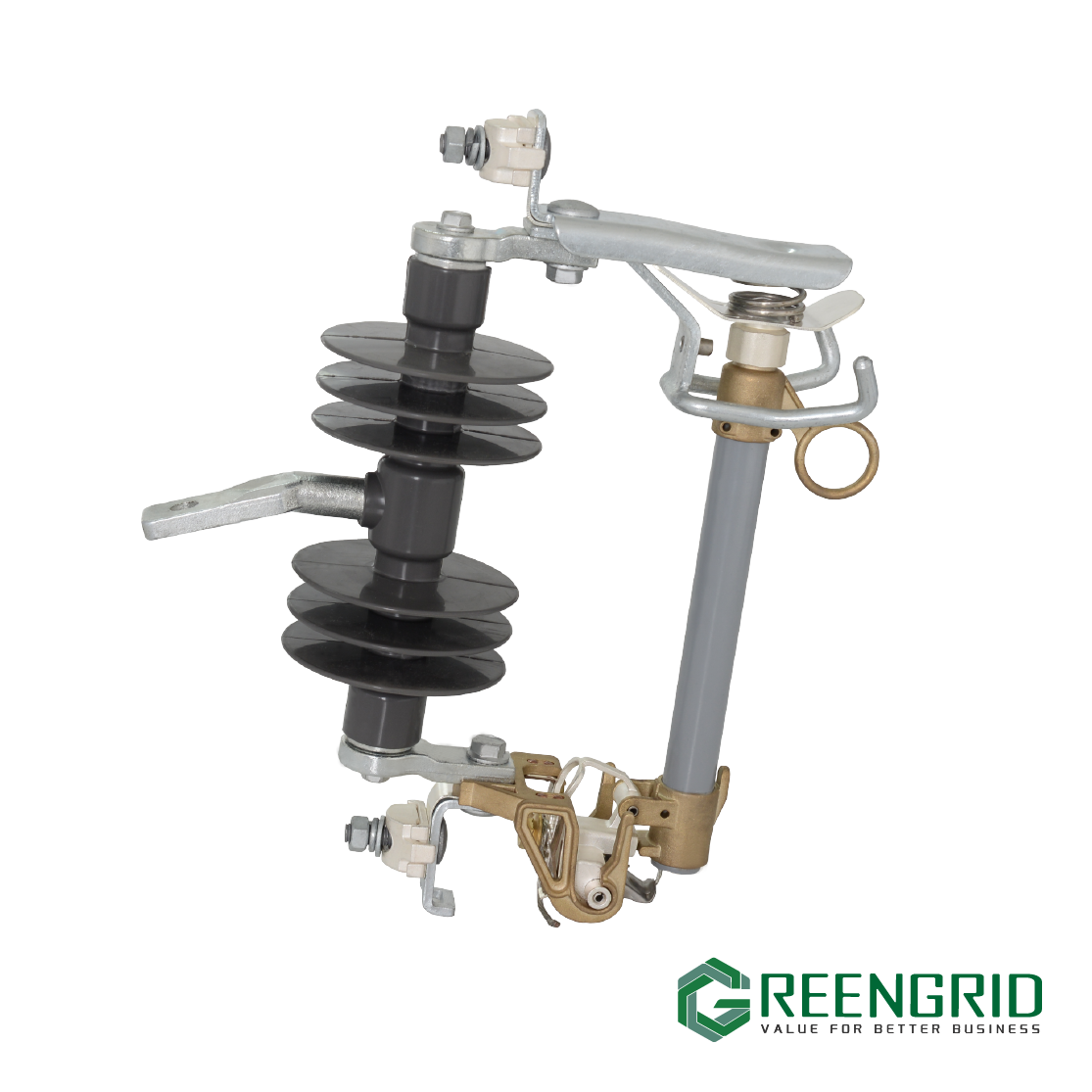

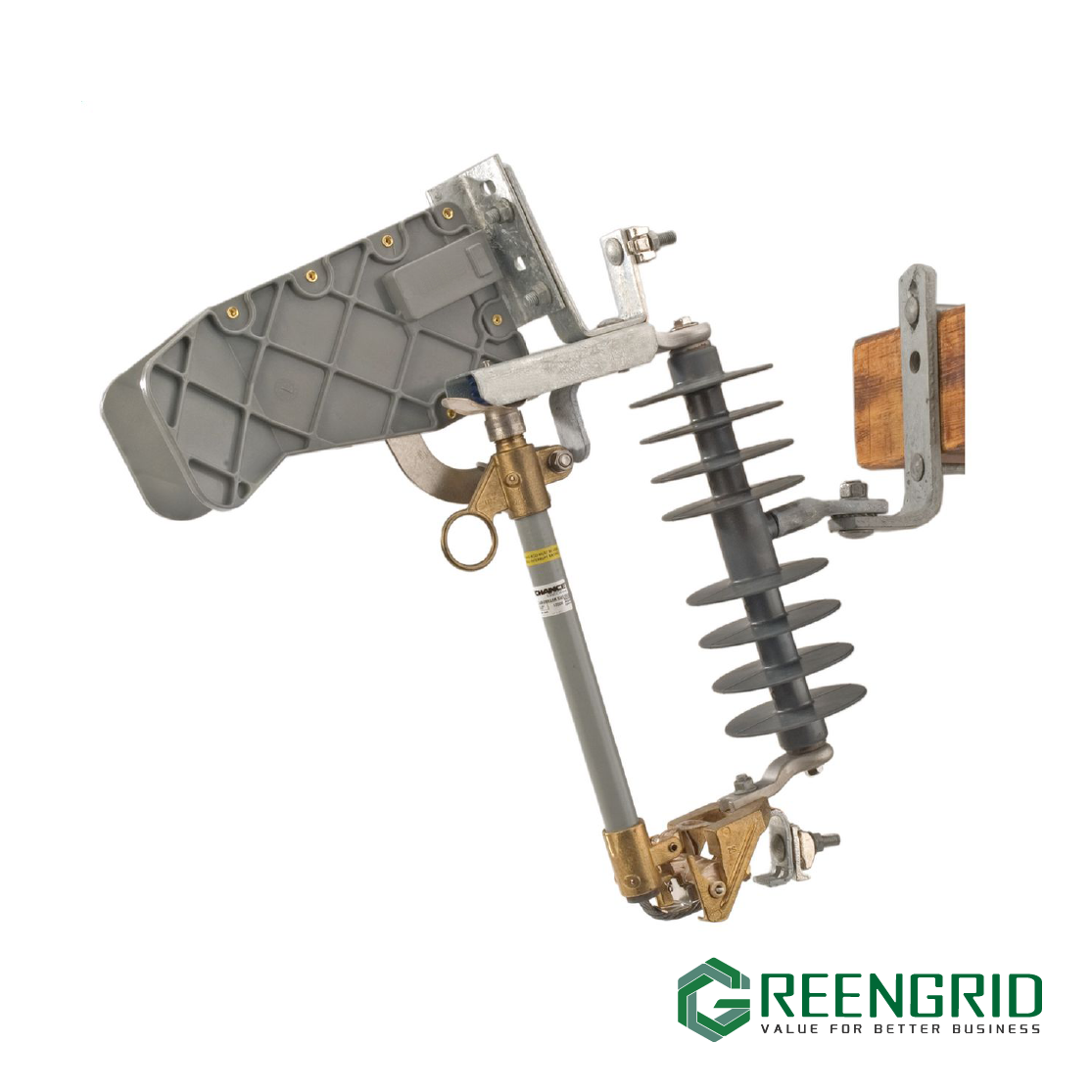

These fuse cutouts provide reliable overcurrent protection for primary distribution systems, including overhead transformers, capacitors, cables, and lines. Designed to safeguard electrical systems from excessive currents caused by line faults, equipment overloads, or failures, they ensure full-range protection. Available in both polymer and porcelain designs, these units are engineered for robust performance in outdoor distribution environments.
Technical Specifications
Fuse Holder Current Ratings
- 100
- 200
- Maximum Voltage Rating
- 36 kV
- Disconnect Blade Rating
- 300 A
Construction & Design
Design Features
Galvanized steel hardwareCorrosion-resistantSpring-loaded expulsion mechanismHinged fuse holder
- Insulator Material Options
- PolymerPorcelain
- Mounting Configuration
- Crossarm or pole-mounted
Application Details
Primary Applications
- Overhead transformers
- Capacitor banks
- Distribution cables
- Overhead power lines
