Technical Specifications
Product Overview

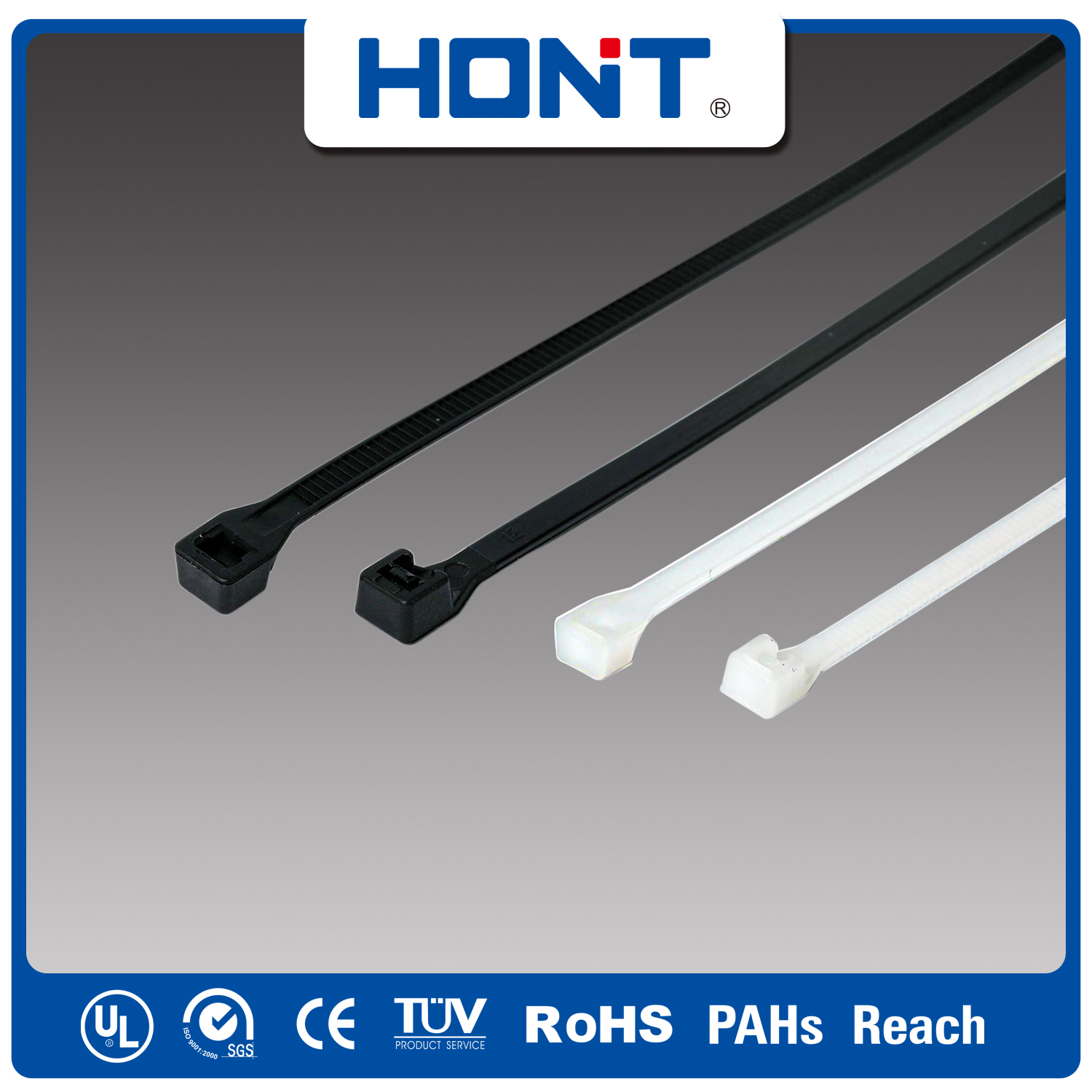

Tensile Enhanced Nylon Cable Ties
These self-locking nylon cable ties are engineered for superior performance with 30% higher tensile strength than standard models. Featuring a patented design that reduces insertion resistance by 50%, they provide increased efficiency for electrical, automotive, and industrial bundling applications. Built from UL-certified Nylon 66, they offer excellent heat resistance, erosion control, and long-term durability.
Technical Specifications

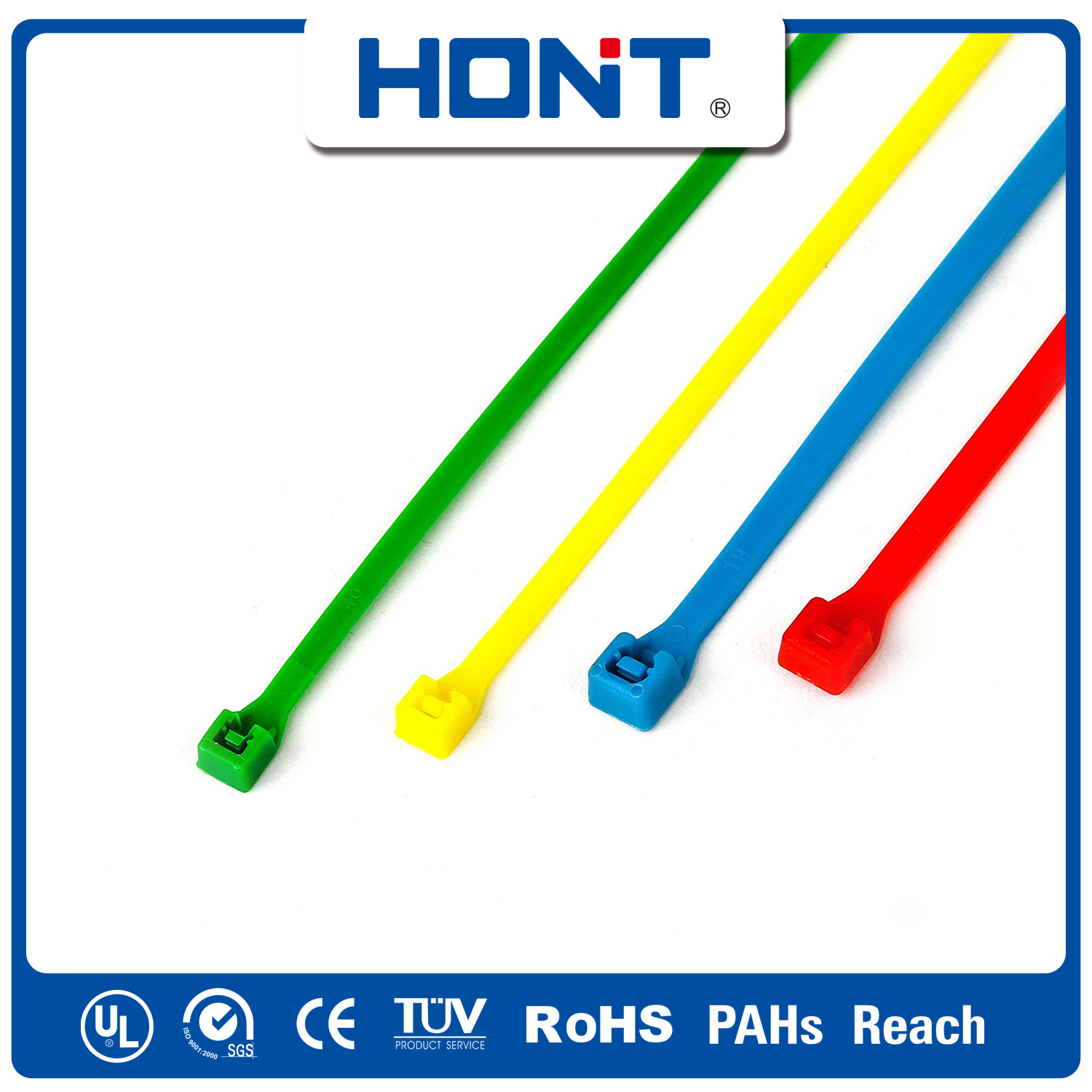

Available Colors
Natural (White)UV BlackCustom Colors
- Material Composition
- Nylon 66 (UL 94V-2 rated)
- Temperature Resistance
- -40°C to 80°C (Short term up to 140°C)
- Global Certifications
- ISO 9001ULCERoHSREACH
Performance
Key Performance Benefits
30 %
Tensile Strength Increase
50 %
Insertion Resistance Reduction
Product Dimensions
Available Specifications
| Item No. | Length (mm) | Width (mm) | Bundle Diameter (mm) |
|---|---|---|---|
| HTA-2.5X60 | 60 | 2.5 | 2-11 |
| HTA-2.5X80 | 80 | 2.5 | 2-16 |
| HTA-2.5X100 | 100 | 2.5 | 2-24 |
