Technical Specifications
Product Overview

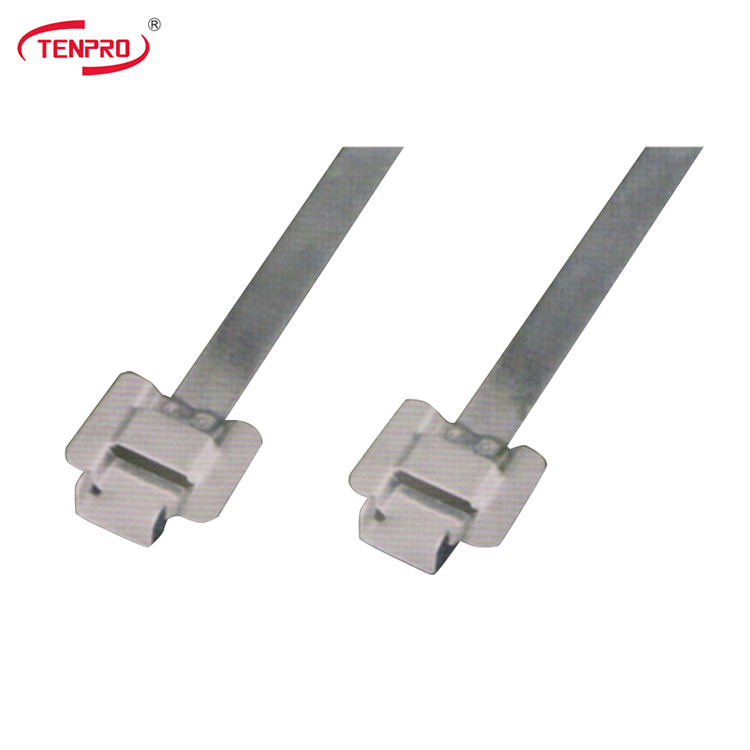

Professional Stainless Steel Cable Ties
These high-quality releasable cable ties feature a specialized dental lock mechanism for secure, reliable fastening in both indoor and outdoor environments. Constructed from corrosion-resistant 304 or 316 stainless steel, they provide exceptional tensile strength and durability. The design allows for easy, quick operation and reusability, making them an ideal solution for industrial cable management and bundling needs.
Technical Specifications
- Material Composition
- Stainless steel 304 or 316
- Locking Type
- Dental lock type
- Operating Temperature
- -60°C to 300°C
- Packaging
- 100 pieces per sachet
- Key Characteristics
- Acid-proofCorrosion ResistantHigh Tensile StrengthReleasableReusable
Dimensional Data
Standard Sizes and Capacity
| Model | Length (mm) | Max Diameter (mm) | Thickness (mm) |
|---|---|---|---|
| TSD-8 | 200 | 50 | 0.3 |
| TSD-8 | 250 | 63 | 0.3 |
| TSD-8 | 300 | 76 | 0.3 |
| TSD-12 | 350 | 89 | 0.3 |
| TSD-12 | 400 | 102 | 0.3 |
| TSD-12 | 450 | 115 | 0.3 |
| TSD-15 | 500 | 128 | 0.3 |
| TSD-15 | 550 | 141 | 0.3 |
| TSD-19 | 600 | 145 | 0.3 |
| TSD-19 | 700 | 180 | 0.3 |
| TSD-19 | 800 | 193 | 0.3 |
| TSD-19 | 900 | 200 | 0.3 |
| TSD-19 | 1,000 | 206 | 0.3 |
