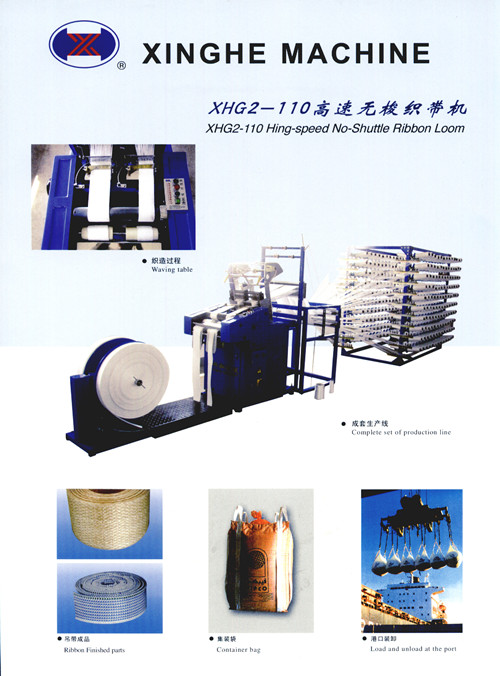

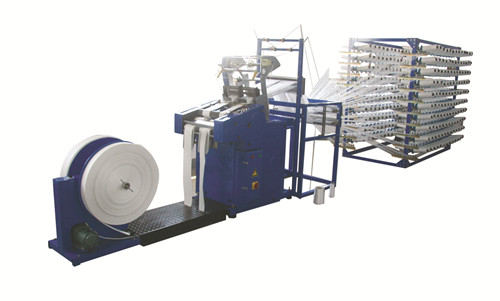

High-Speed No-Shuttle Ribbon Loom
This high-speed, no-shuttle loom efficiently weaves ribbons for applications like container bags. It features automated controls, reduced noise, and low energy consumption.
Technical Specifications
Product Overview
High-Speed No-Shuttle Ribbon Loom
This high-speed no-shuttle ribbon loom is engineered for the efficient and precise weaving of ribbons and webbings, specifically optimized for heavy-duty industrial applications like container bags. It features robust construction for continuous high-volume production while maintaining low energy consumption and minimal operational noise. Equipped with advanced tension control and user-friendly interface systems, this machine ensures consistent output quality and reliable, long-term performance.
Key Performance Metrics
Core Operational Data
150 m/h
Max Ribbon Speed
100 mm
Max Ribbon Width
1.1 kW
Main Motor Power
900 kg
Total Weight
Technical Specifications
Detailed Machine Specifications
| Parameter | Value |
|---|---|
| Number of ribbons | 2 |
| Ribbon speed | 125-150 m/h |
| Ribbon weight range | < 100 g/m |
| Number of organzine threads | 520 |
| Warp thread specification | 3300±100 D |
| Weft thread specification | 800-1000 D |
| Locking thread specification | 600-800 D |
| Winding engine torque | 12 Nm |
| Overall dimensions (LxWxH) | 8000 x 1500 x 1900 mm |
Key Features
- Operational Advantages
- High-speed operationLow energy consumptionLow noise levelSmooth runningAdvanced tension controlHigh automation degreeHeavy-duty construction
