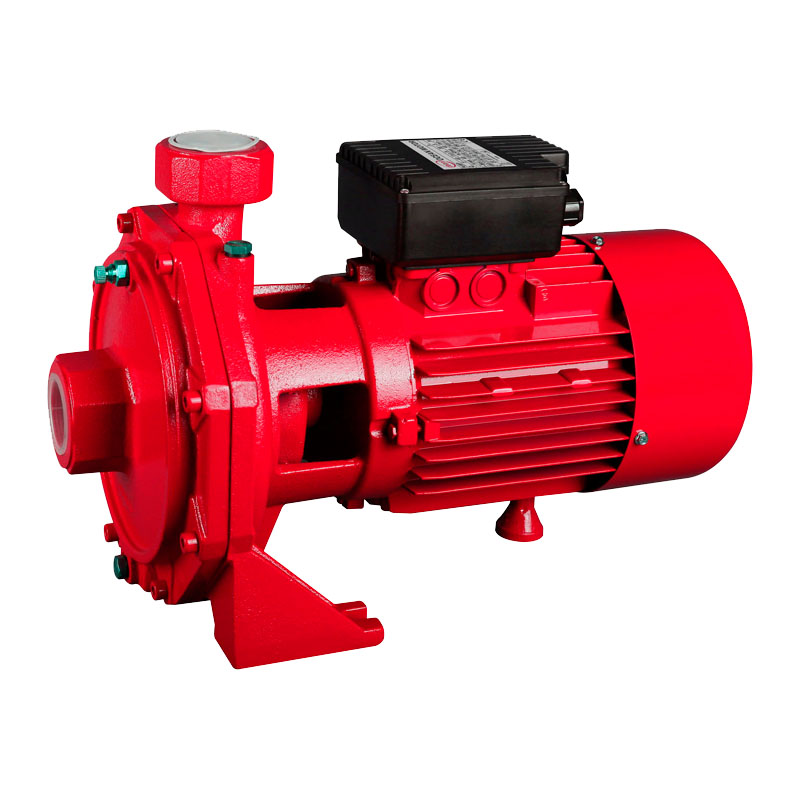

High Pressure Centrifugal Pump
This centrifugal pump is engineered with back-to-back impellers for high head applications, exceeding the capabilities of single impeller pumps. It is suitable for pumping clean water and non-aggressive liquids in industrial, civil, and domestic settings, particularly for pressure boosting and boiler feeding.

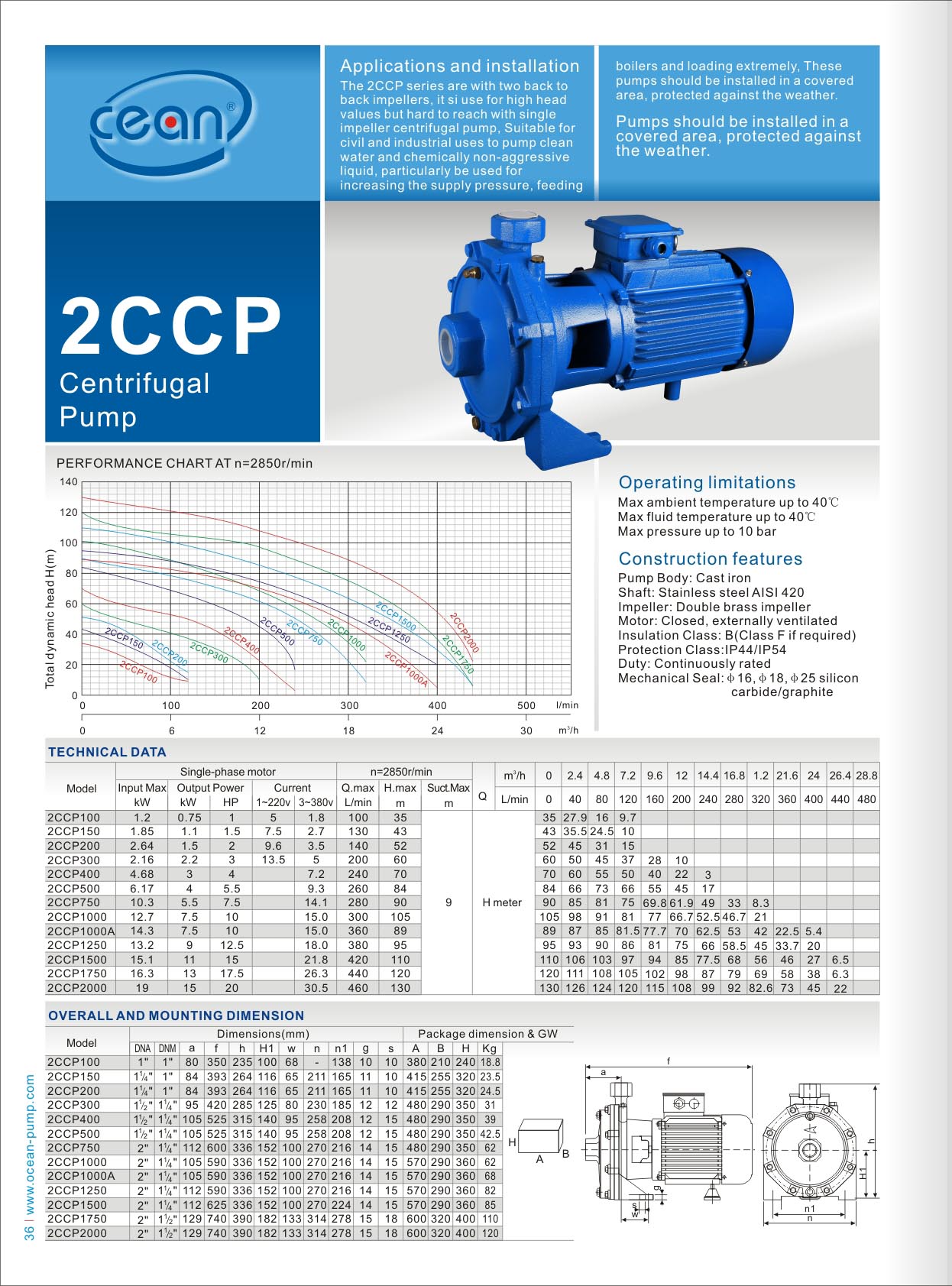

Technical Specifications
Overview
High-Performance Dual-Impeller Centrifugal Pump
The 2CCP series features a robust design with two back-to-back impellers, specifically engineered to deliver higher head pressure than standard single-impeller pumps. These units are ideal for demanding applications including pressure boosting, industrial water supply, and fire-fighting systems. Built for reliability and efficiency, they handle clean water and non-aggressive liquids across civil, agricultural, and industrial sectors.
Performance Highlights
Key Performance Metrics
10 bar
Max Operating Pressure
40 °C
Max Fluid Temp
2,850 r/min
Rated Speed
Applications
Recommended Uses
- Pressure boosting washing systems
- Fire-fighting units and cooling systems
- Industrial water supply
- Horticultural and agricultural irrigation
- Boiler, chiller, and refrigeration systems
- Civil and domestic water transfer
Construction Materials
Material Specifications
| Component | Material |
|---|---|
| Pump Body | Cast Iron |
| Impeller | Double Brass |
| Motor Housing | Aluminum or Cast Iron |
| Shaft | 45# Steel / Stainless Steel AISI 420 |
| Mechanical Seal | Ceramic steatite / Metalized carbon / Silicon carbide |
Technical Standards
Protection & Insulation
IP44IP54Class B InsulationClass F InsulationContinuously Rated Duty
Operating Limits
Environmental Limits
- Maximum ambient temperature: 40°C
- Maximum fluid temperature: 40°C
- Maximum operating pressure: 10 bar
- Installation: Covered area protected against weather
Motor Specifications
Motor Features
- Closed construction
- Externally ventilated cooling
- High-efficiency performance
- Thermal overload protection (select models)
