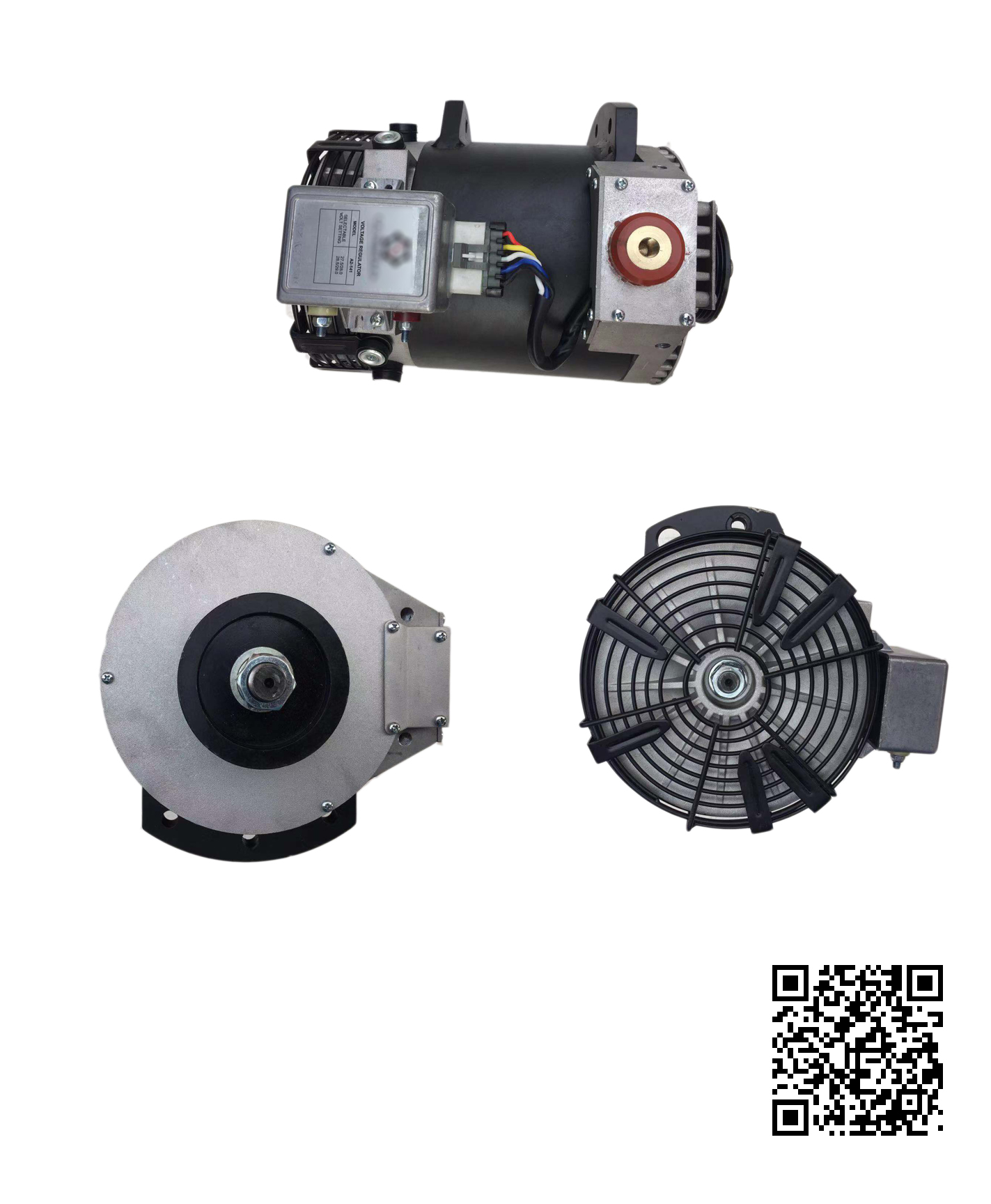

High-Performance Vehicle Alternator
This high-performance alternator is designed for demanding applications. Its features include robust construction, an efficient cooling system with fan, and advanced voltage regulation.
Technical Specifications
Overview
High-Performance Power Generation
This high-performance alternator is engineered for demanding heavy-duty applications, ensuring reliable power delivery under rigorous operating conditions. Designed with robust construction and an efficient cooling system, it provides stable voltage and current output for optimal electrical system performance. It is an ideal solution for heavy-duty vehicles and industrial equipment requiring consistent and durable power generation.
Technical Specifications
Voltage Settings
28.5 V
Voltage Setting
Model Compatibility & Ratings
| Model ID | Voltage | Amperage |
|---|---|---|
| ACE186 IR | 28V | 225A |
| ACE187 IR | 28V | 260A |
| ACE188 IR | 14V | 430A |
| ACE189 IR | 28V | 370A |
| ACE190 IR | 14V | 400A |
| ACE191 IR | 28V | 525A |
- Compatible Part Numbers
- C530C653C680C736C714C840D
Features
Design Highlights
- Robust construction for heavy-duty use
- Integrated efficient cooling system with fan
- Advanced voltage regulation
- Includes terminal connections and mounting hardware
