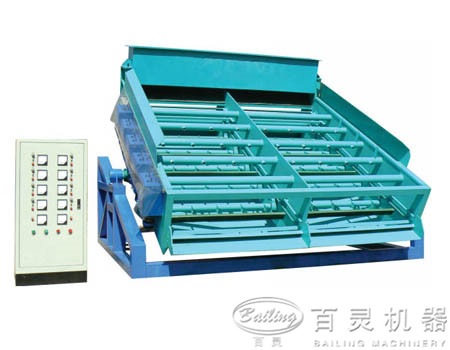

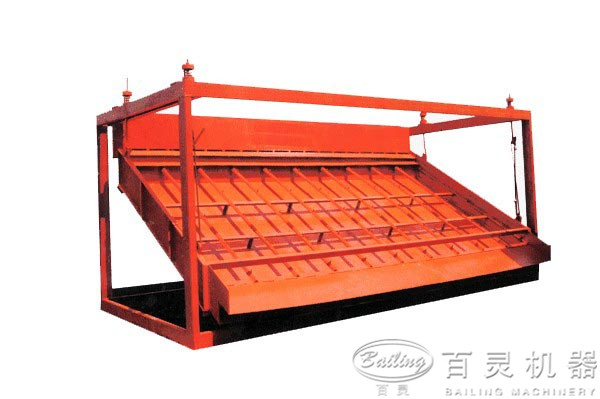

High Frequency Vibrating Screen
This high frequency mineral screen features a small amplitude and high screening efficiency. It is designed to operate with low noise.
Technical Specifications
Product Overview
High-Efficiency Screening Solution
This high-frequency vibrating screen is engineered for precision separation across diverse industries, including food processing, pharmaceuticals, chemical manufacturing, and powder metallurgy. It features a robust design with a vibration frequency reaching up to 3,000 times per minute, ensuring effective sifting of fine-grained and high-viscosity materials. The unit is built for ease of use, with a unique mesh structure that allows for rapid screen changes in just 3 to 5 minutes, facilitating simple cleaning and maintenance.
Performance Metrics
Vibration Frequency
3,000 Times/min
Frequency
- Key Advantages
- High EfficiencyHigh PrecisionEasy MaintenanceStainless Steel ConstructionQuick Mesh Change
Technical Specifications
Model Specifications
| Model | Mesh Size (mm) | Max Feed Size (mm) | Screen Slope (°) | Motor Type | Power (kw) |
|---|---|---|---|---|---|
| 1200x2000 | 0.15-0.25 | <1 | 15-55 | Y100L-4 | 2x2.2 |
| 1500x3000 | 0.15-0.25 | <1 | 15-55 | Y100L2-4 | 2x3 |
Design Features
- Construction Material
- Stainless steel (excluding electrical components)
- Mobility
- Yes
