Heavy Duty Wire Stripping Pliers
These heavy-duty pliers are designed for stripping and cutting wires. They feature an adjustable pressure screw for handling different cable sizes without damaging the conductor cores.
Technical Specifications
Overview

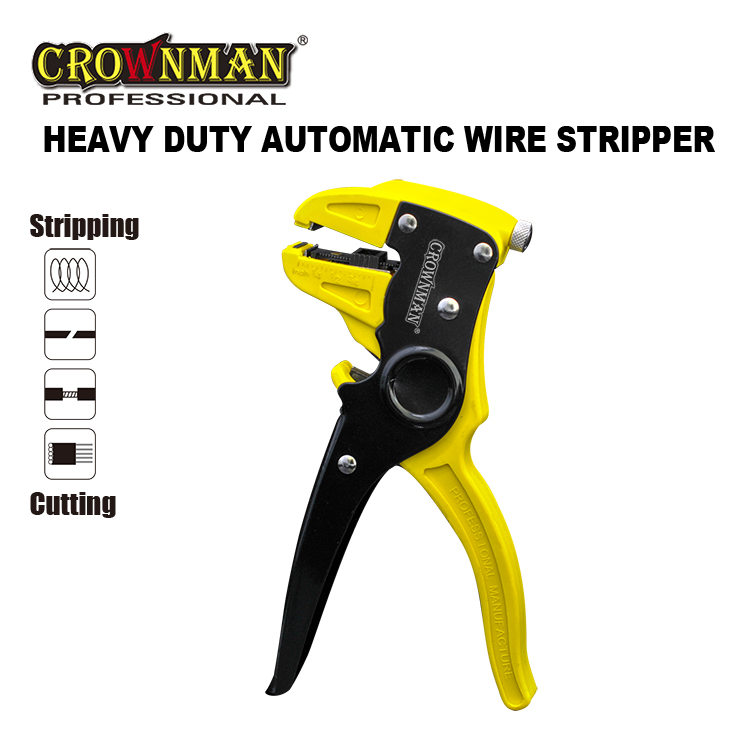

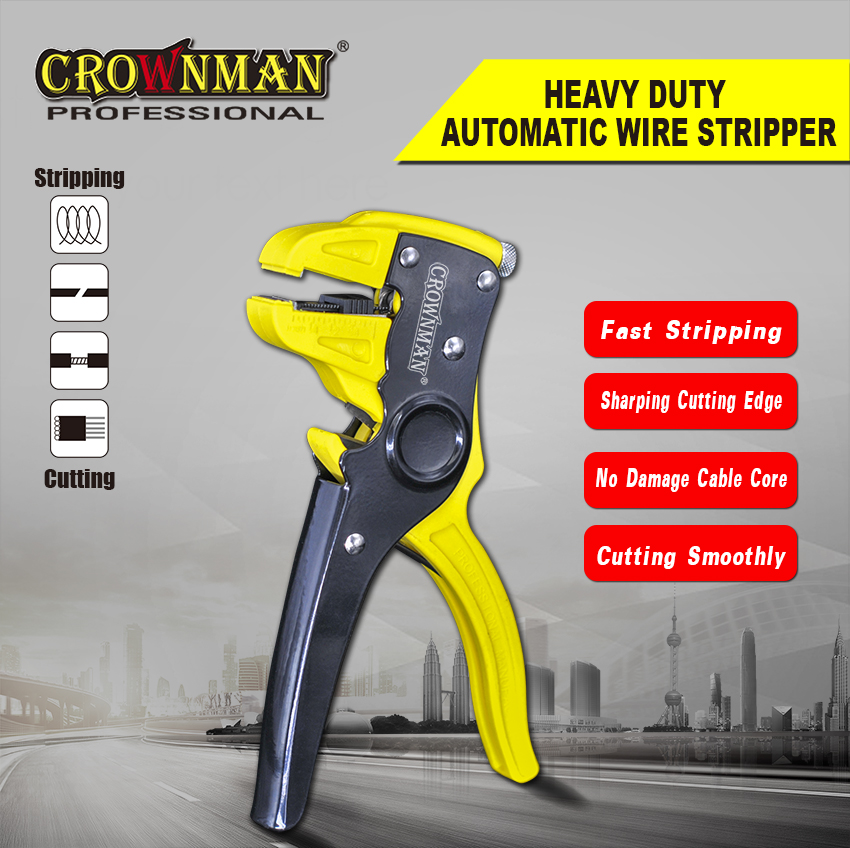

Professional 2-in-1 Wire Stripping and Cutting Tool
This heavy-duty automatic wire stripper is designed for high-precision electrical work, combining stripping and cutting functions into a single efficient tool. It features a specialized pressure adjustment screw and an adjustable length stop to ensure clean results without damaging conductor cores. Constructed from a durable blend of carbon steel and nylon, it offers a lightweight yet robust solution for professional cable management and DIY projects.
Key Performance Metrics
Core Capabilities
5.5 mm²
Max Stripping
3.5 mm²
Max Cutting
Technical Specifications
Operational Range
| Cable Type | Stripping Size (mm²) | Cutting Size (mm²) |
|---|---|---|
| Single Wire Cable | 0.2 - 3.3 | 0.08 - 2.0 |
| Multi-Wire Cable | 0.2 - 5.5 | 0.09 - 3.5 |
| Flat Cable | 0.2 - 0.5 | 8mm (max) |

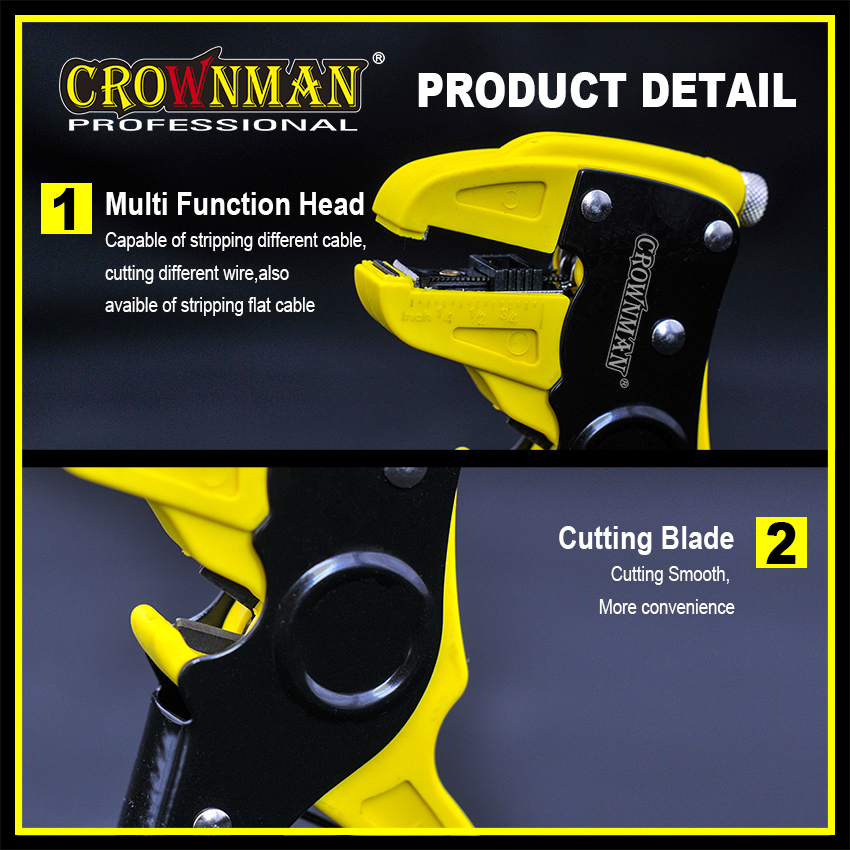

Design & Features
Functional Highlights
- 2-in-1 Multi-stripping and cutting functionality
- Precise blade design to protect conductor cores
- Pressure adjustment screw for various cable sizes
- Adjustable length stop for consistent stripping results
- Integrated spring return mechanism for rapid reset
- Automatic stripping mechanism for fast operation
- Build Components
- Metal Riveter ConnectionStripping Length GaugerPreset SpringAdjustment Button

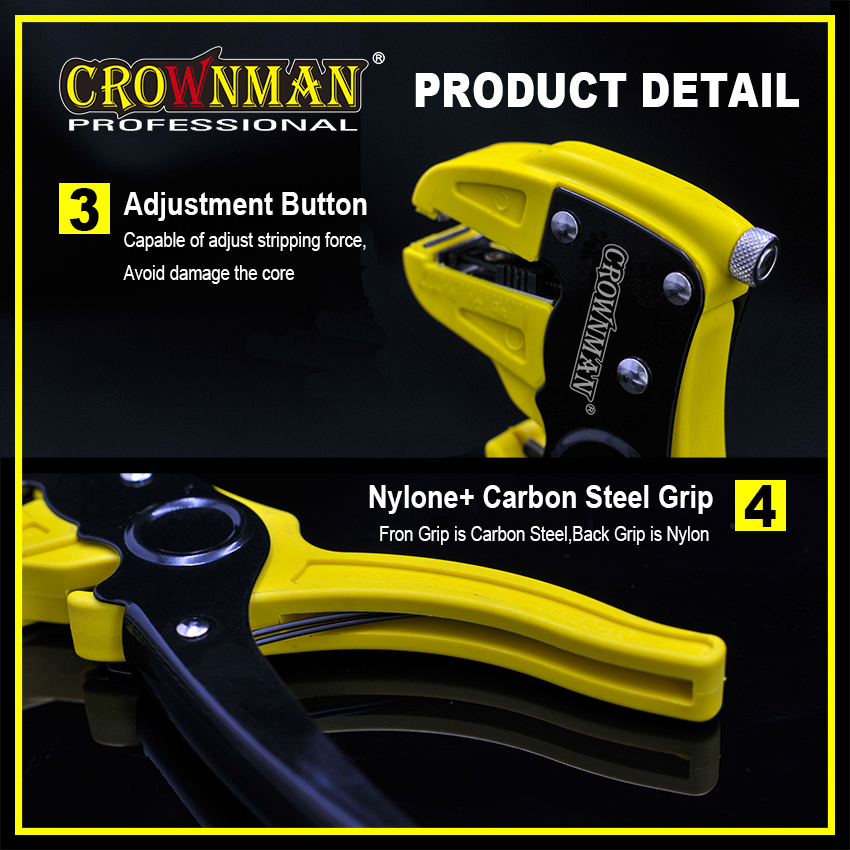

Material & Construction
Blade Treatment
Heat TreatedCarbon Steel
- Body Material
- Steel and Nylon
- Grip Design
- Carbon Steel front grip with Nylon back grip

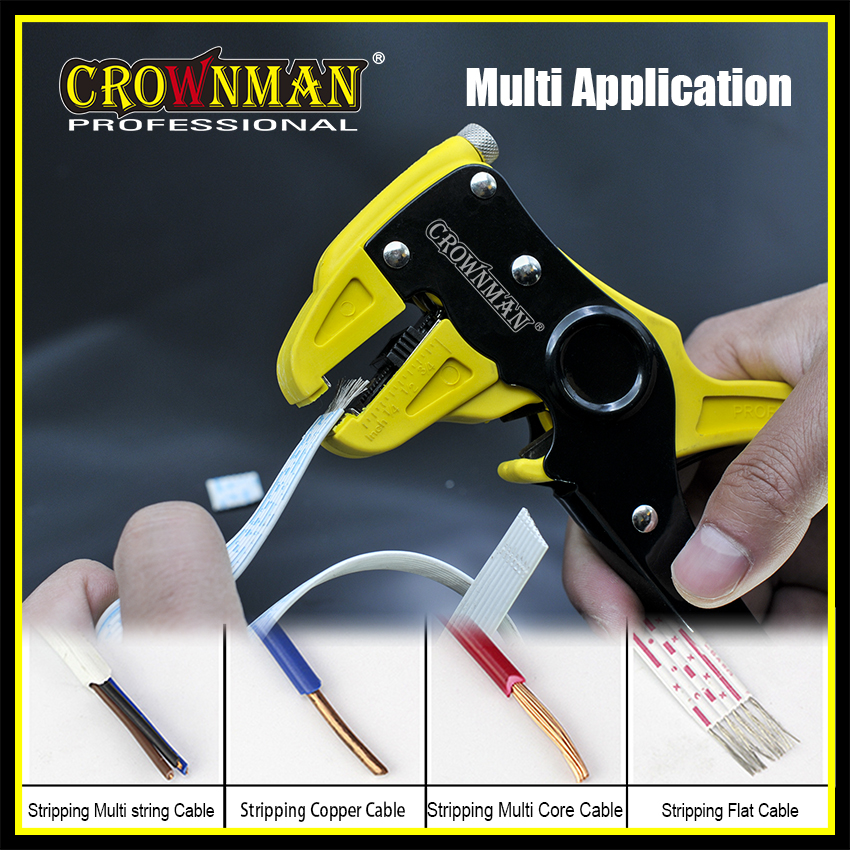

Applications
- Compatible Cable Types
- Multi-string CableCopper CableMulti-core CableFlat CableSingle Wire Cable
