Technical Specifications
Overview

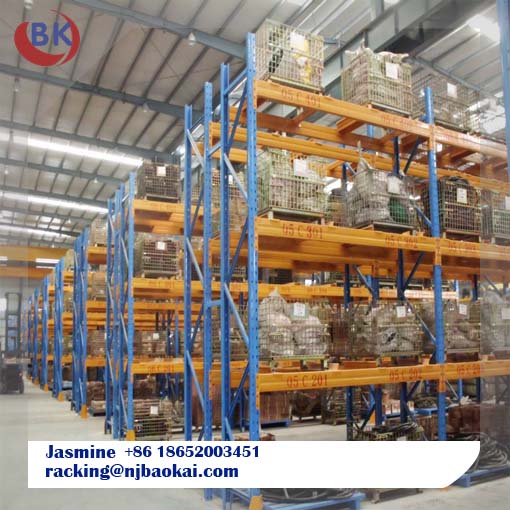

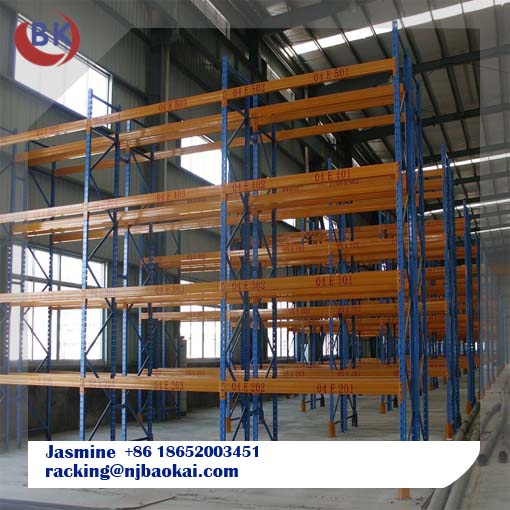

Heavy Duty Steel Pallet Racking
This heavy-duty steel pallet racking system is designed for high-density storage in warehouses and supermarkets. Engineered for durability and safety, it features a modular design that is compatible with major international racking standards. With a robust load-bearing capacity and corrosion-resistant finish, it provides a reliable solution for organizing palletized goods in diverse environments, including cold storage facilities.
Technical Specifications
- Material
- Cold-roll Steel Q235
- Finish
- Powder CoatedGalvanized
- Connection Method
- Bolted
- Compatible Equipment
- ForkliftStacker
Dimensions & Capacity
Load Capacity
6,000 kg
Max Load per Beam Level
Dimensional Range
| Dimension | Range |
|---|---|
| Height | 500 - 20,000 mm |
| Depth | 400 - 1,500 mm |
| Length | 1,000 - 4,000 mm |
Compliance & Standards
Certifications
ISO 9001CE
Design Standards
- AS4084-1993
- ISO9001
- European FEM Regulations
- SEMA Codes
Accessories
- Included/Available Accessories
- Horizontal BracesDiagonal BracesRow SpacersUpright FootplatesSafety Locking PinsPost ProtectorsPallet Supporting BarsMesh Decks
