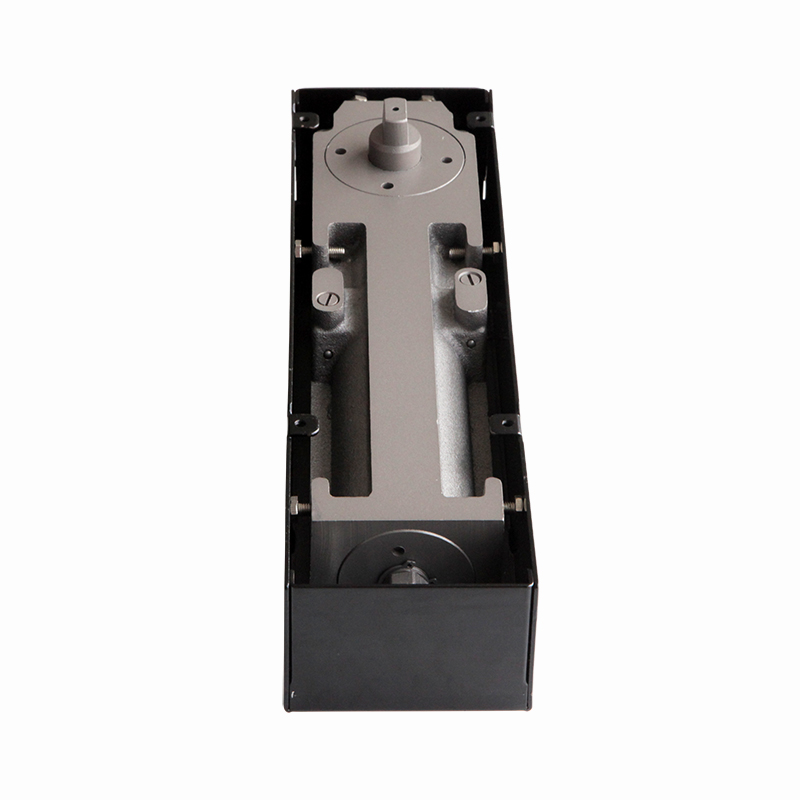

Heavy Duty Revolution Door Floor Spring
This heavy-duty revolution door floor spring is designed for doors requiring robust and reliable operation. It features a large coil spring, providing exceptional capacity and durability.
Technical Specifications
Overview
Heavy Duty Revolution Door Floor Spring
The HD-95 is a high-capacity, heavy-duty floor spring engineered for demanding commercial and industrial environments. It features a robust, slim square box design that accommodates glass, wooden, aluminum, and frame doors with ease. Built for longevity, this unit offers corrosion and low-temperature resistance, along with an oil leak-proof construction to ensure reliable operation in high-traffic areas.
Technical Specifications
Capacity Metrics
1,600 mm
Max Door Width
450 kg
Max Door Weight

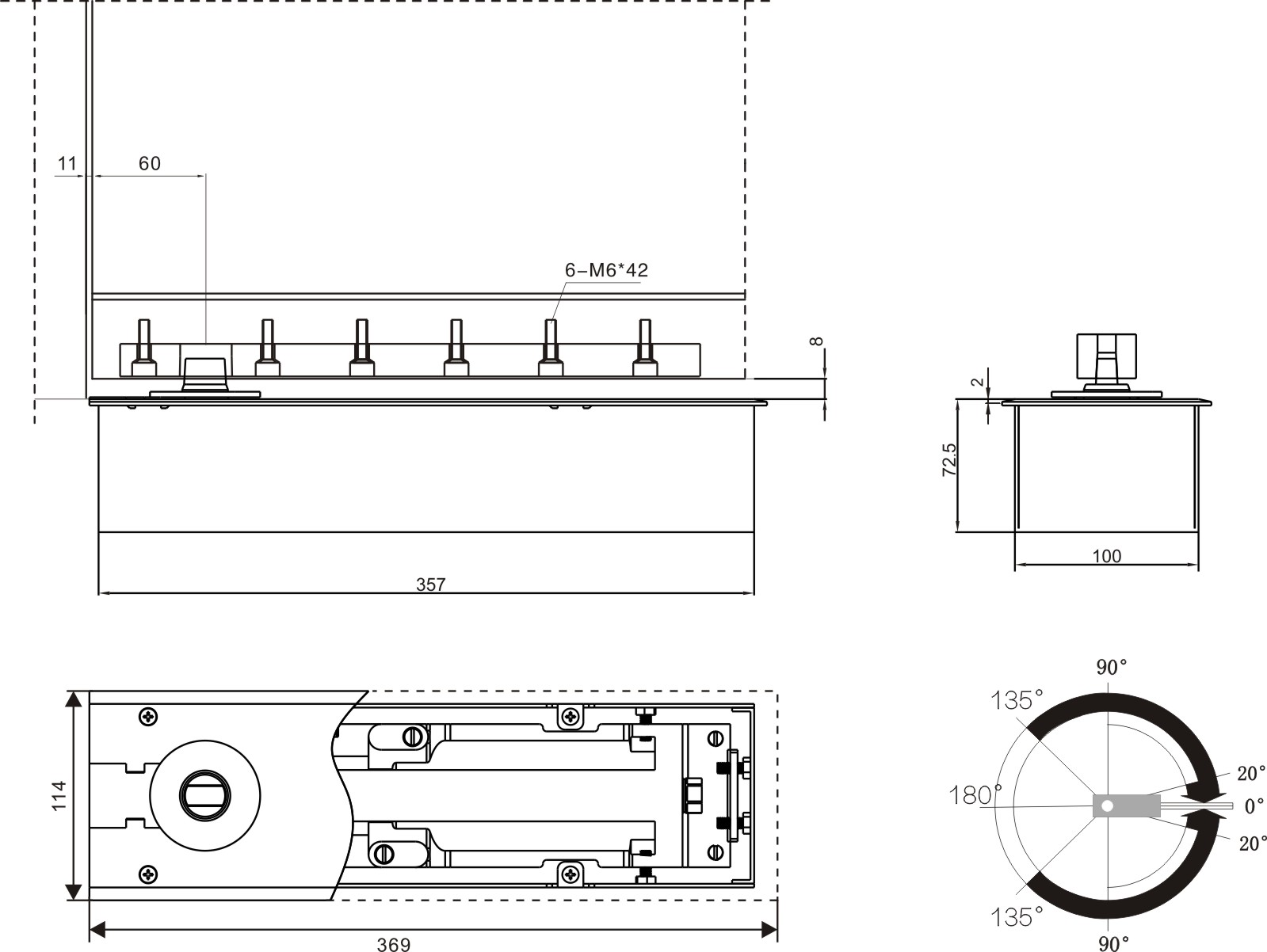

- Physical Dimensions
- 357mm x 100mm x 72.5mm
- Closing Force Range
- EN1 to EN6 (Adjustable)
- Stop Device Angles
- 90°135°
- Maximum Opening Degree
- 360 °
Performance & Durability

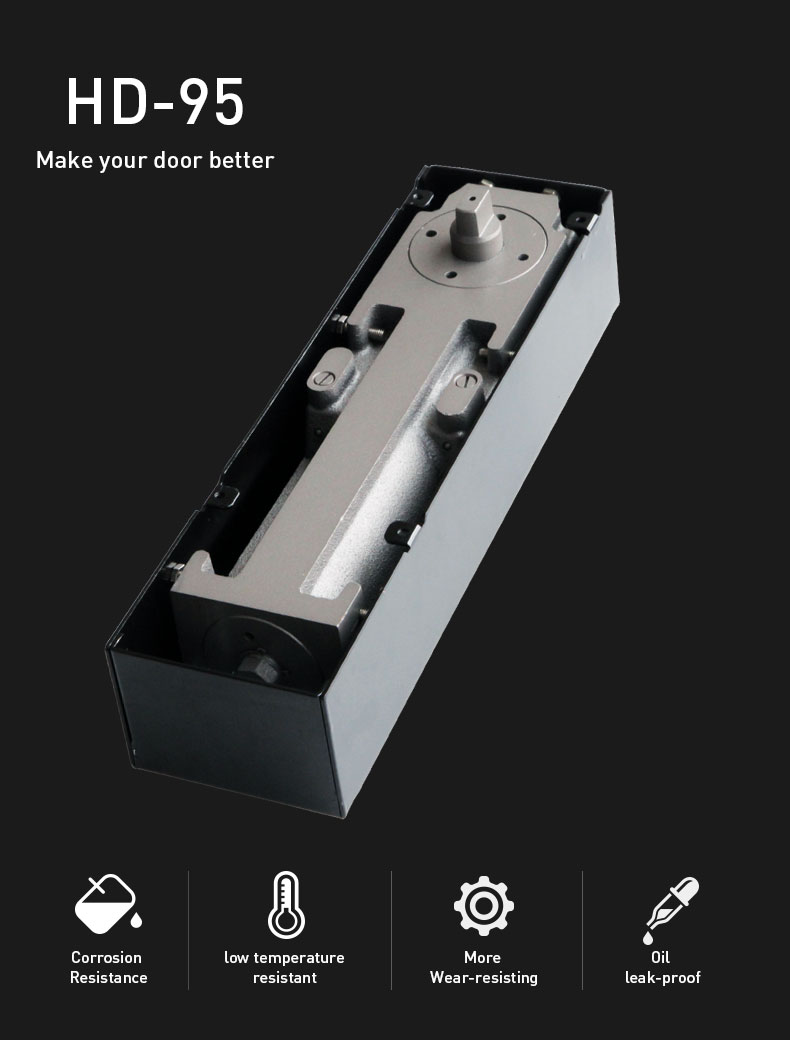

Key Durability Features
Corrosion ResistantLow-Temperature ResistantWear-ResistingOil Leak-Proof

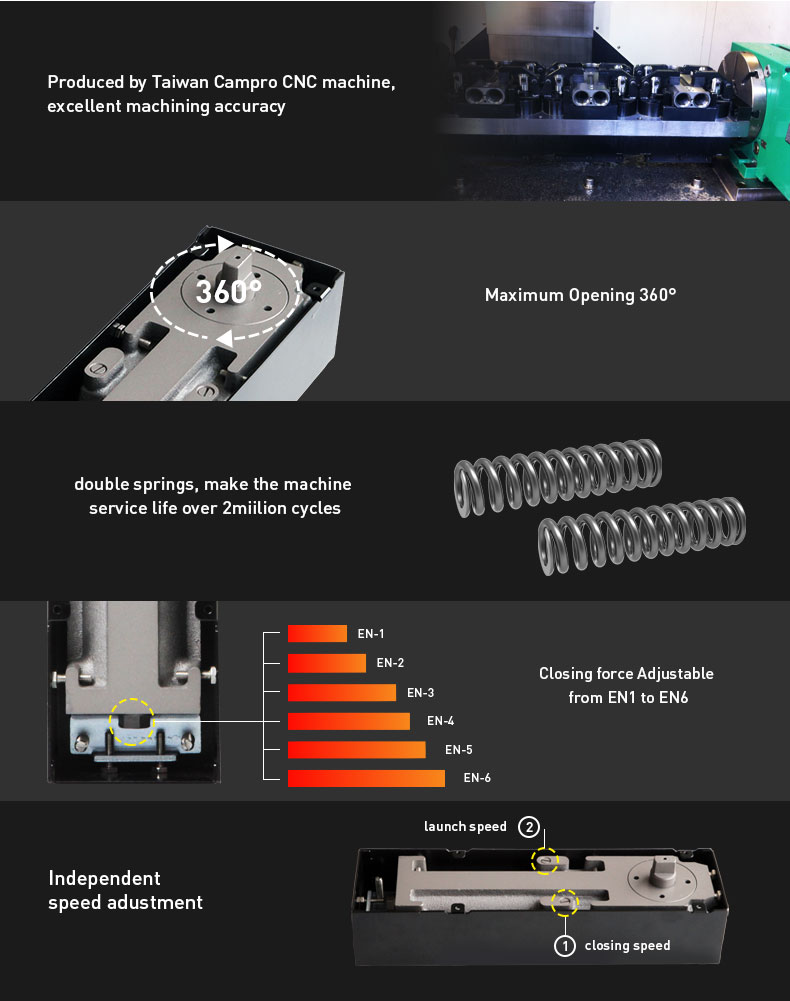

Adjustment Capabilities
- Double speed adjustment
- Independent launch and closing speed control
- Cycle Test Performance
- Over 2,000,000 cycles
Compliance & Compatibility
Compatible Door Types
- Glass Door
- Wooden Door
- Aluminum Door
- Frame Door
- Standards & Compliance
- UL ListedISO9001EN1154
