Heat Shrinkable Track-Resistant Tubing
This heat shrinkable tubing offers anti-tracking properties and excellent corrosion resistance. It provides UV resistance, weathering resistance, and superior electrical and mechanical properties with a 3:1 shrinkage ratio.
Technical Specifications
Product Overview
High-Performance Insulation Solution
This heat-shrinkable, track-resistant tubing is engineered for demanding electrical applications, providing robust insulation for medium voltage systems up to 36kV. It offers superior protection against environmental stressors, including UV radiation, weathering, and corrosion, ensuring long-term reliability in harsh conditions. With a 3:1 shrinkage ratio and halogen-free composition, it is an ideal choice for cable terminations and intermediate connection insulation.
Key Features
- Key Features
- Anti-trackingCorrosion ResistantUV ResistantWeathering ResistantHalogen-free
Technical Specifications
Compliance Standard
IEC 60684
- Shrinkage Ratio
- 3:1
- Max Voltage Rating
- 36 kV
- Standard Color
- Red
- Operating Temperature Range
- -40°C to +100°C

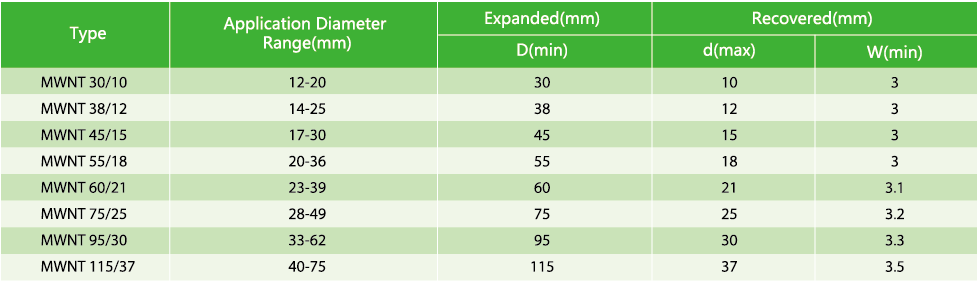

Dimensions and Sizing
Available Sizes
| Type | App. Diameter (mm) | Expanded (mm) | Recovered (mm) | Wall Thickness (mm) |
|---|---|---|---|---|
| MWNT 30/10 | 12-20 | 30 | 10 | 3 |
| MWNT 38/12 | 14-25 | 38 | 12 | 3 |
| MWNT 45/15 | 17-30 | 45 | 15 | 3 |
| MWNT 55/18 | 20-36 | 55 | 18 | 3 |
| MWNT 60/21 | 23-39 | 60 | 21 | 3.1 |
| MWNT 75/25 | 28-49 | 75 | 25 | 3.2 |
| MWNT 95/30 | 33-62 | 95 | 30 | 3.3 |
| MWNT 115/37 | 40-75 | 115 | 37 | 3.5 |
