Heat Shrinkable Insulation Tubing with Semi-Conductive Layer
This heat shrinkable tubing features an inner layer for insulation and an external semi-conductive layer. It provides superior electrical and mechanical properties for medium voltage applications up to 36kV.
Technical Specifications
Product Overview
Dual-Layer Insulation Solution
This heat shrinkable tubing is engineered with a specialized dual-layer construction, featuring an inner layer for superior electrical insulation and an external layer designed for semi-conductive performance. It delivers excellent electrical and mechanical properties, making it an ideal choice for critical power transmission and distribution infrastructure. Designed for reliability, this tubing provides robust environmental protection for medium voltage straight joints up to 36kV.
Technical Specifications
Operating Temperature
-40 °C
Min Temperature
100 °C
Max Temperature
Color Standard
RedBlack
- Max Voltage Application
- Up to 36kV

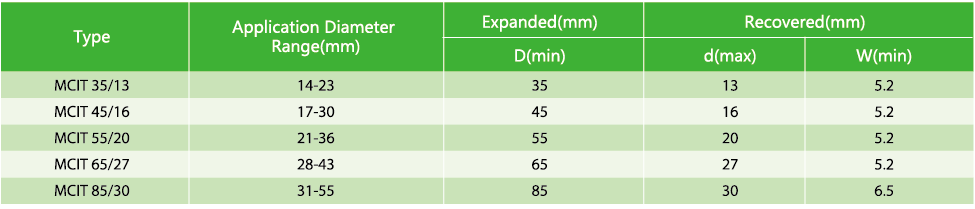

Size Specifications
Dimensional Data
| Type | Application Range (mm) | Expanded D (min mm) | Recovered d (max mm) | Recovered Wall W (min mm) |
|---|---|---|---|---|
| MCIT 35/13 | 14-23 | 35 | 13 | 5.2 |
| MCIT 45/16 | 17-30 | 45 | 16 | 5.2 |
| MCIT 55/20 | 21-36 | 55 | 20 | 5.2 |
| MCIT 65/27 | 28-43 | 65 | 27 | 5.2 |
| MCIT 85/30 | 31-55 | 85 | 30 | 6.5 |
