HDPE Geomembrane Production Line
This production line is designed for manufacturing HDPE geomembrane sheets. It supports film widths from 1 to 9 meters and thicknesses from 0.2 to 2.2mm with 1-5 layer co-extrusion.
Technical Specifications
Overview
High-Performance Geomembrane Extrusion

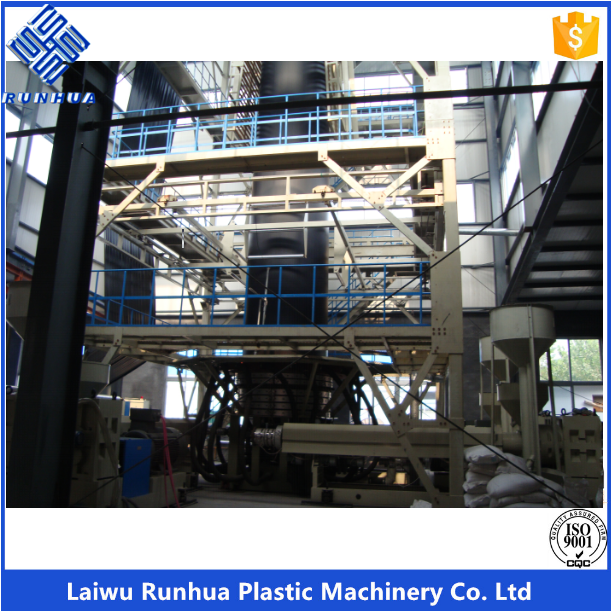

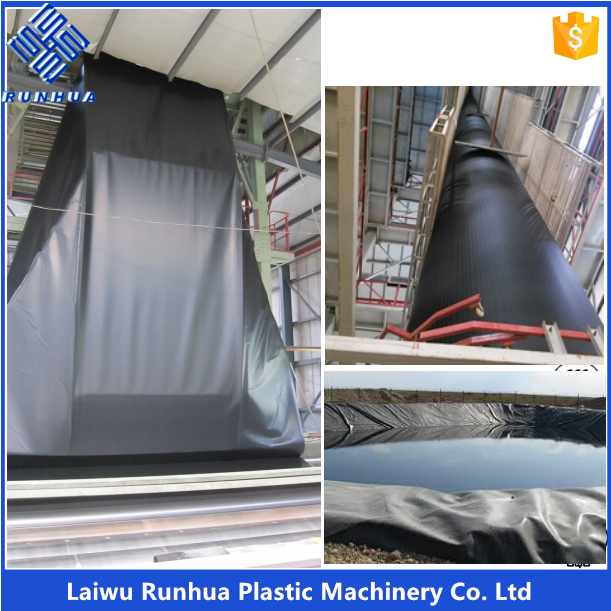

This professional-grade blown extrusion line is engineered for the high-capacity production of HDPE and LDPE geomembranes. Capable of producing films up to 9 meters wide with thicknesses ranging from 0.2mm to 2.2mm, it is ideal for manufacturing durable pond liners and environmental containment barriers. The system supports multi-layer co-extrusion from 1 to 5 layers, ensuring superior mechanical properties and material distribution for demanding B2B applications.
Key Capabilities
Performance Metrics
9 m
Maximum Film Width
2.2 mm
Maximum Thickness
1,800 kg/h
Maximum Output
Technical Specifications
- Compatible Materials
- HDPELDPELLDPEEVAmPEMaster BatchRecycled Materials
- Co-extrusion Layers
- 1-5 Layers
System Components
Standard Configuration
- Single-screw Extruder
- Screen changer
- Die head
- Air ring (cooling fan and connecting soft tube)
- Herringbone and sizing cage
- Traction device
- Rewinder device
- IBC inner cooling of film bubble
- Matched spare parts set
Model Comparison
Model Performance Parameters
| Model | Max Width (mm) | Layers | Max Output (kg/h) | Die Diameter (mm) |
|---|---|---|---|---|
| TM3500 | 6,000 | 1 | 700 | 1,500 |
| 2TM3500 | 6,000 | 2 | 800 | 1,500 |
| 2TM4000 | 7,000 | 2 | 1,600 | 1,800 |
| 3TM4000 | 7,000 | 3 | 1,500 | 1,800 |
| 2TM5000 | 8,000 | 2 | 1,500 | 2,100 |
| 3TM5000 | 8,000 | 3 | 1,800 | 2,100 |
Compliance & Quality
Quality Standards
ISO 9001CESGSCQCCCC
