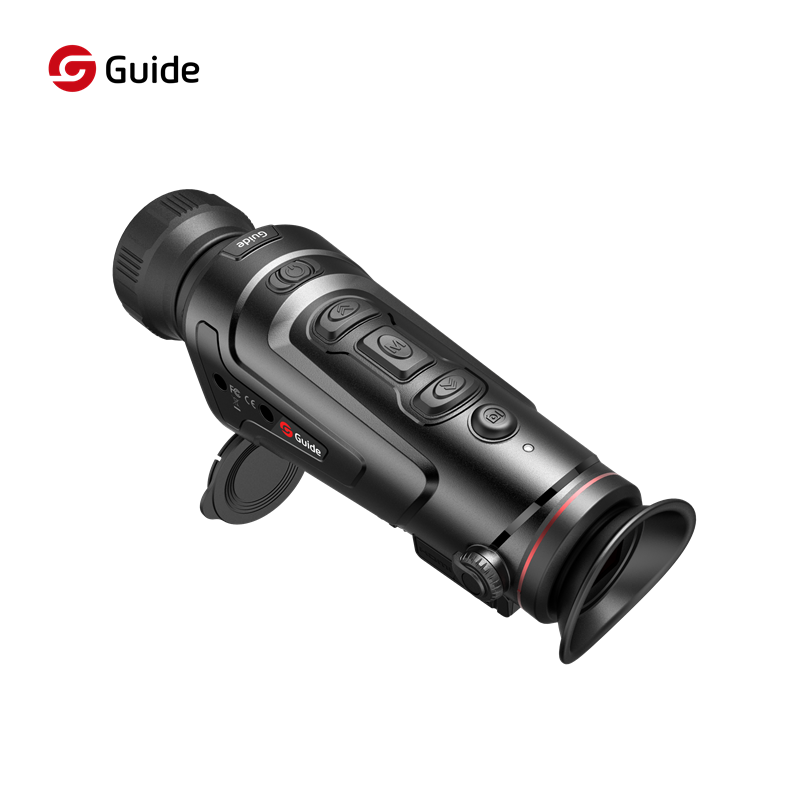

Handheld Thermal Imaging Monocular
This handheld thermal imaging monocular is designed for professional use in any condition. It features smooth zoom, a built-in stadiametric rangefinder, and image quality adjustment.
Technical Specifications
Overview
Professional Thermal Imaging
This handheld thermal imaging monocular is designed for professional use in hunting, security, and outdoor observation. Featuring a high-definition 1280x960 display and a 50Hz frame rate, it delivers smooth, crisp thermal imaging even during rapid motion. With advanced features like smooth zoom, stadiametric rangefinding, and image enhancement, it provides reliable performance in total darkness and challenging weather conditions.
Imaging Performance
- Frame Rate
- 50 Hz
- Detector Resolution
- 400x300 (TrackIR) / 640x480 (TrackIR Pro)
- Spectral Range
- 8μm – 14μm
Display & Optics

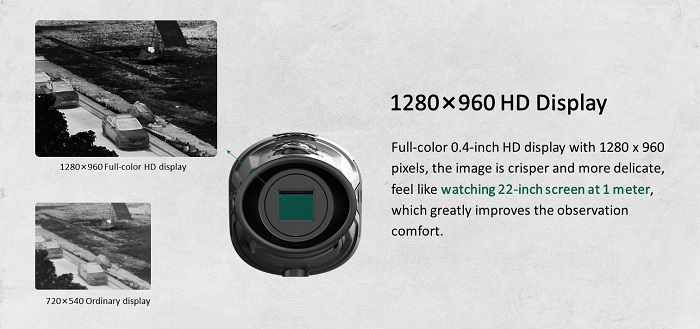

- Display Resolution
- 1280x960
- Display Type
- 0.4 inch Color LCOS
- Magnification Range
- 1.1x - 16x (Model Dependent)
- Digital Zoom

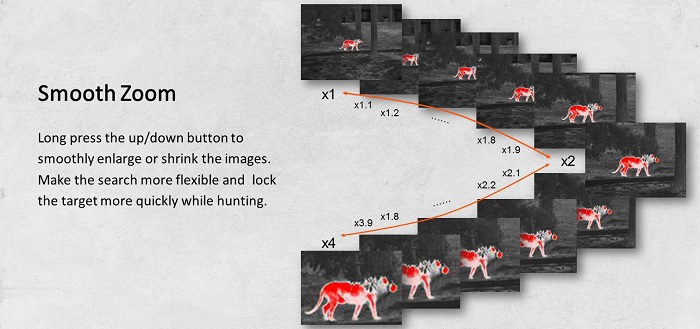

- 1x - 8x (Smooth Zoom)
Detection Capabilities
Detection & Recognition
| Model | Detection (Human) | Detection (Vehicle) |
|---|---|---|
| 25mm | 700m | 1700m |
| 35mm | 1000m | 2400m |
| 50mm | 1400m | 3000m |
Power & Battery
Battery Capacity
6,000 mAh
Battery Capacity
- Minimum Working Time
- 4.5 h
Features
- Key Functions

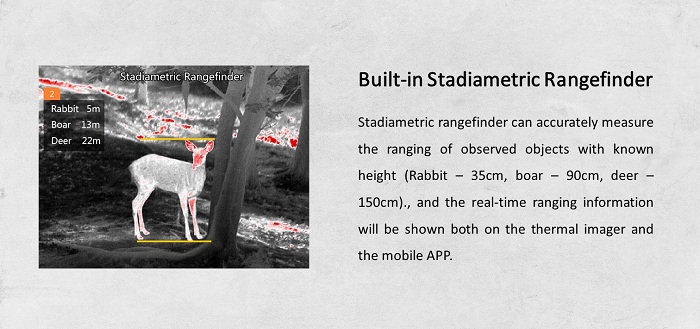

- Wi-Fi ConnectivityApp ControlStadiametric RangefinderHotspot TrackingVideo RecordingPhoto CapturePicture-in-Picture
Physical Specs
Ingress Protection
IP66
- Weight Range
- 470g - 560g
