Handheld Thermal Monocular with Wi-Fi

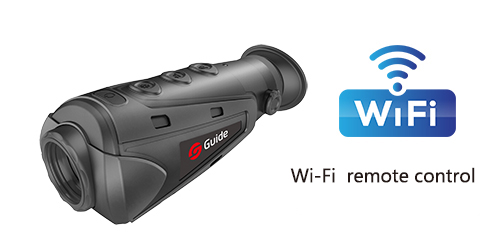

This handheld thermal monocular connects to a mobile app via Wi-Fi for remote control, synchronous display, and photo/video capture. It provides superior imaging, longer detection range, and advanced algorithms for enhanced target acquisition.
Technical Specifications
Overview
Advanced Thermal Imaging for Professionals

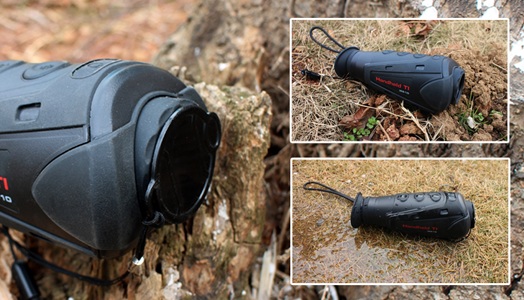

This handheld thermal monocular is designed for superior target detection in challenging environments, including complete darkness, smoke, and fog. Featuring advanced thermal imaging algorithms and a high-sensitivity detector, it allows for precise observation and identification. With its ergonomic, rubberized design and IP66-rated durability, it is built to withstand rigorous use in the field while remaining comfortable for extended scanning sessions.
Imaging Performance
- Detector Resolution
- 400 × 300 pixels
- Pixel Pitch
- 17 μm
- Frame Rate
- 50 Hz
- Color Palettes
- White HotBlack HotRed Hot 1Red Hot 2Red Hot 3Highlight
Optical Specifications
Digital Zoom
- x2
- x4
- Display Resolution
- 720 × 540 (0.2" LCOS)
- Diopter Adjustment
- 4 D
Connectivity & Power
Battery Life
5 h
Operating Time
Interfaces

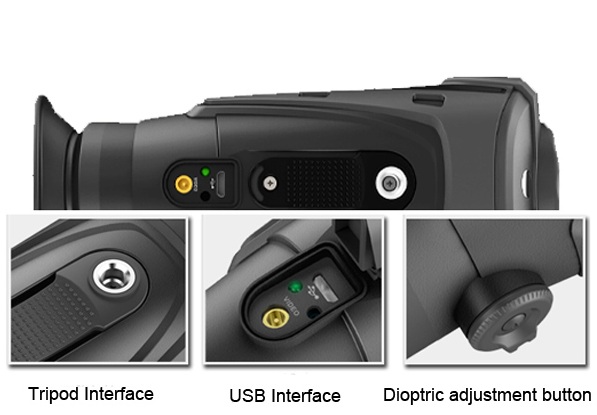

Micro USBAnalog Video Output (MCX)
- Wi-Fi Connectivity
- Yes
Environmental & Physical
- Ingress Protection
- IP66
- Operating Temperature
- -10°C to 50°C
- Drop Test
- 1m
Detection Capabilities
Detection Range Table
| Target | Detection Range | Recognition Range |
|---|---|---|
| Human (1.8m x 0.5m) | 500-700m | 300-350m |
| Vehicle (2.3m x 2.3m) | 1300-1700m | 500-700m |
