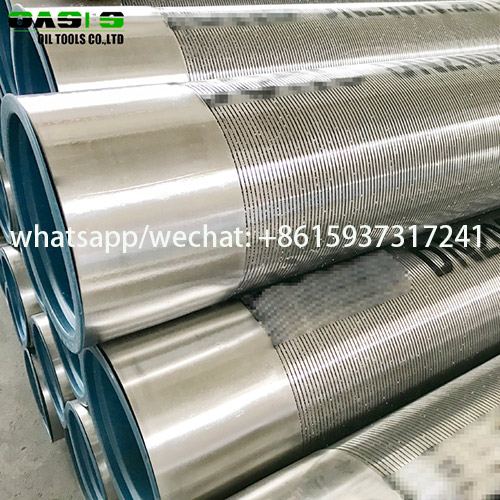

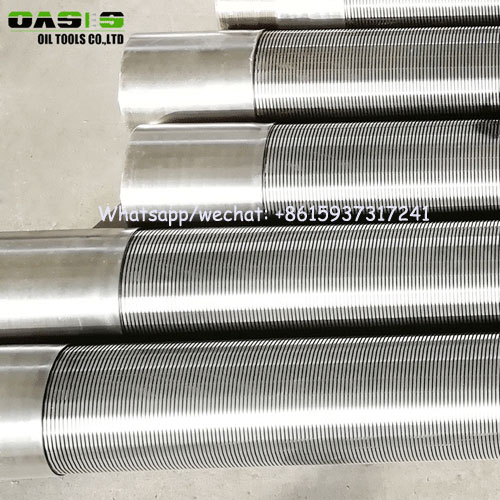

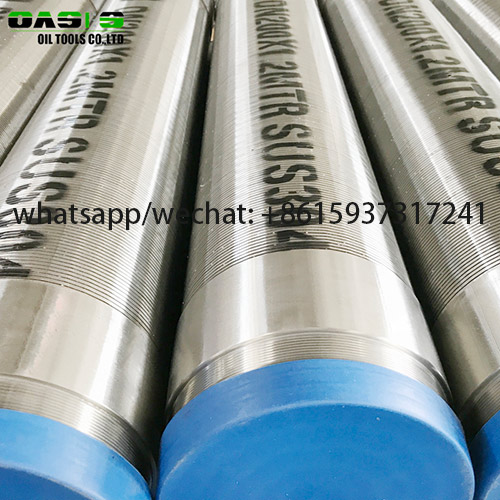

Gravel Prepacked Well Screen AISI304l Stainless Steel

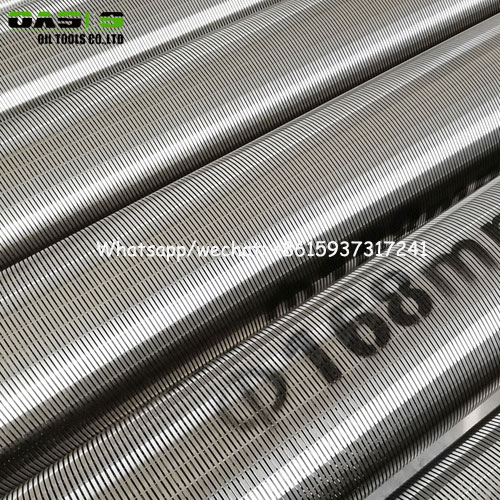

Gravel prepacked well screens provide efficient and reliable filtration for well applications. These screens are constructed with a V-shaped wire around longitudinal support rods, creating continuous slot openings for optimal water flow and sand control.
Technical Specifications
Product Overview
High-Performance Well Filtration
These gravel prepacked well screens are engineered with advanced all-weld technology using V-shaped profile wire for superior sand and gravel control. Designed for demanding environments, the robust construction ensures high pressure resistance and optimal water inflow while maintaining structural integrity. Customizable configurations allow for seamless integration into various well projects, significantly prolonging well life and efficiency.
Technical Specifications
Standard Lengths
- 3
- 5.8
- 6
- Material
- AISI 304L Stainless Steel316 Stainless Steel316L Stainless SteelGalvanized Carbon Steel
- Diameter
- 219 mm
- Slot Size Range
- 0.02mm - 3mm
- Open Area
- 20 %
End Connections & Finish
Surface Finish
GalvanizedPaintedPolished
- End Connections
- Welded Beveled EndSTC Thread CouplingLTC Thread CouplingBTC Thread CouplingFlange
Logistics & Handling
- Packing Options
- Bubble BagWoven BagBundledWooden Cases
