Grain Drying System
This high-efficiency grain drying system is engineered for optimal preservation. It features adjustable temperature and airflow control for precise operation and is constructed with durable materials.
Technical Specifications
Overview
High-Efficiency Grain Drying Solutions

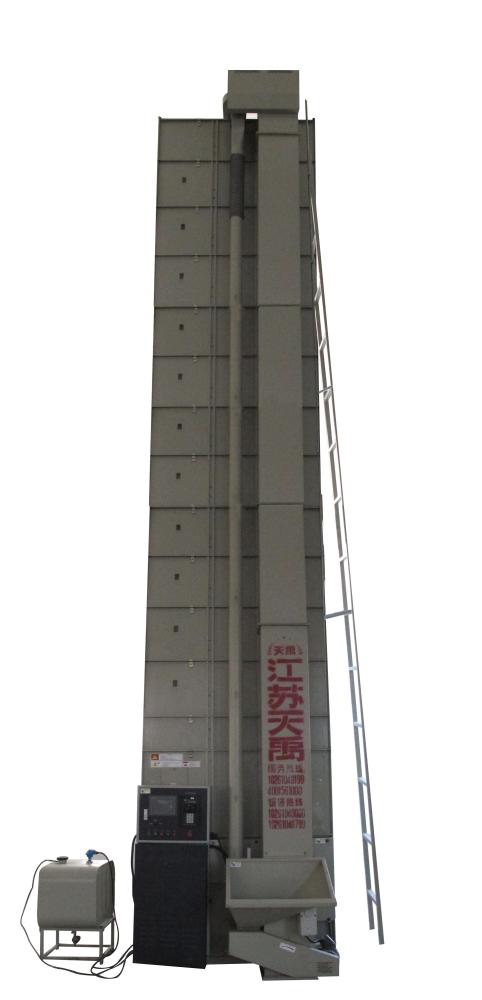

This batch circulating grain dryer is designed for optimal moisture reduction across various grain types. It features a multi-stage drying system with adjustable temperature and airflow controls, ensuring consistent and high-quality output. Built with durable materials, the system is engineered for long-lasting performance, minimal maintenance, and precise operational control.
Technical Specifications
Model Specifications
| Model Name | Capacity (m³) | Batch Processing (t) | Drying Speed (%/h) | Dimensions (L*W*H mm) |
|---|---|---|---|---|
| 5HXG-15 | 27.06 | 15 | 0.4-0.8 | 4379*2230*9670 |
| 5HXG-20 | 36 | 20 | 0.5-1 | 2376*2566*9556 |
| 5HXG-30 | 54.2 | 30 | 0.5-1 | 5160*3814*12455 |
- Drying Method
- Batch Circulating
Key Features
System Highlights
- Multi-stage drying system
- Adjustable temperature control
- Adjustable airflow control
- User-friendly control panel
- Durable construction
