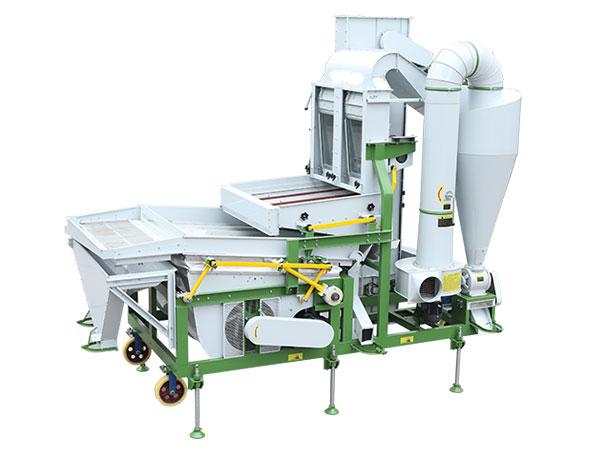

Grain Cleaning Machine with Air Separation
This grain cleaning machine efficiently removes impurities from various grains and seeds. It utilizes a multi-stage separation process, including screening and air separation, to remove foreign materials and improve product quality.
Technical Specifications
Overview
High-Efficiency Grain Cleaning System
This industrial grain cleaning machine utilizes a double air screen and dual-stage wind screening process, specifically engineered to enhance the quality and brightness of finished products like sesame, sunflower seeds, and buckwheat. Its robust design features a large 1.25m x 2.4m sieve surface and individual control for symmetric air screens, ensuring precise impurity removal. The modular system allows for flexible configuration with optional bucket elevators and screw conveyors to suit various material handling needs.
Certifications
Technical Specifications
Motor Power
- Sieve Surface Area
- 1250 x 2400 mm
- Overall Dimensions (LxWxH)
- 3920 x 2430 x 3440 mm
- Compatible Materials
- Sunflower seedMelon seedBuckwheatFlax seedSesame seedBeans

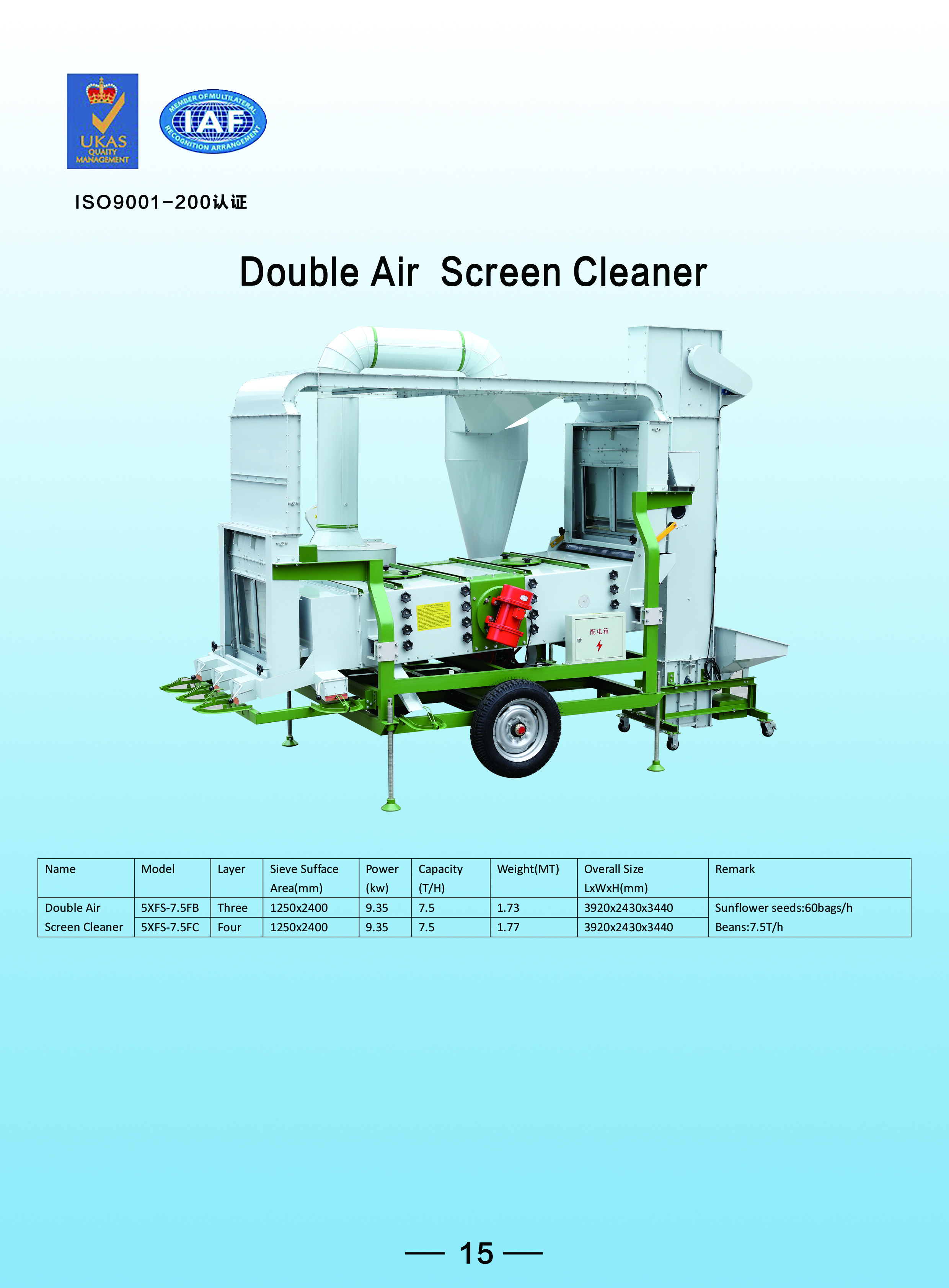

Model Comparison
Model Comparison Table
| Model | Layers | Weight (MT) | Capacity |
|---|---|---|---|
| 5XFS-7.5FB | Three-layer | 1.73 | 7.5 T/H |
| 5XFS-7.5FC | Four-layer | 1.77 | 7.5 T/H |
