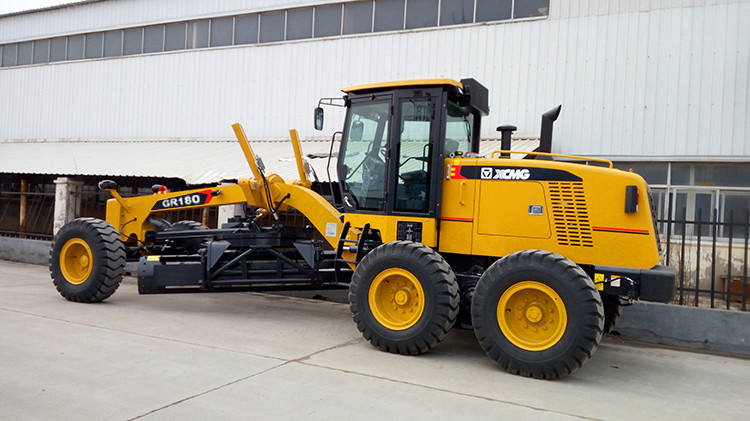

GR180 Motor Grader for Road Construction
The road wheel grader is used for ground leveling, ditching, and slope scraping in large areas. It is suitable for highway, airport, farmland, and water conservancy construction.
Technical Specifications
Overview
High-Performance Motor Grader
This versatile motor grader is engineered for road construction, maintenance, and heavy-duty earthmoving applications. It features a robust high-performance engine and an advanced hydraulic system that ensures precise blade control for superior grading accuracy. Designed with an articulated frame and ergonomic operator cab, it delivers excellent maneuverability and comfort, making it a reliable solution for demanding work environments.
Engine & Performance
Engine Performance
142 kW
Rated Power
2,200 rpm
Rated Speed
79 kN
Tractive Effort
- Engine Model
- 6CTA8.3-C190-II
- Maximum Gradeability
- 25 %
Dimensions & Weight
Machine Dimensions
| Parameter | Value |
|---|---|
| Overall Length | 8900 mm |
| Overall Width | 2625 mm |
| Overall Height | 3420 mm |
| Ground Clearance (Front) | 430 mm |
| Tread | 2156 mm |
- Total Operating Weight
- 15400 kg
Operating Systems
Transmission Speeds
- Forward: 5, 8, 11, 19, 23, 38 km/h
- Reverse: 5, 11, 23 km/h
System Pressures
- Working System: 18 MPa
- Transmission: 1.3 - 1.8 MPa
- Tire Inflation: 260 kPa
Fluid Capacities
| Component | Capacity | Unit |
|---|---|---|
| Fuel Tank | 280 | L |
| Coolant | 50 | L |
| Transmission | 38 | L |
| Drive Axle | 28 | L |
| Engine Oil | 24 | L |
| Balancing Box | 46 | L |
- Tire Specification
- 17.5-25
