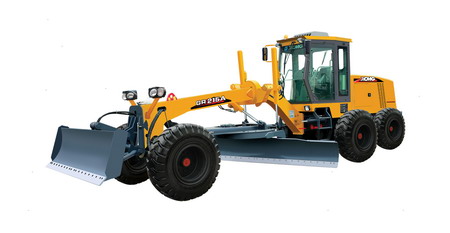

220 HP Motor Grader with 13ft Blade
This motor grader features a vertical inline, water-cooled, 4-stroke, turbo-charged diesel engine and electro-hydraulic control. It is equipped with a completely sealed, low-noise cabin and a 3962mm (13ft) blade.
Technical Specifications
Overview
High-Performance 220 HP Motor Grader
This 220 HP motor grader is a robust and versatile earthmoving machine engineered for precision grading and leveling tasks. Featuring a powerful engine, it delivers high torque and efficient performance across various terrains, making it an ideal choice for road construction, site preparation, and maintenance projects. Its articulated frame enhances maneuverability, allowing for tight turns and efficient operation even in confined job site conditions.
Performance Metrics
Rated Power
220 HP
Rated Power
162 KW
Rated Power
- Max Traction
- 140 kN
Dimensions and Weight
- Total Operating Weight
- 16000 kg
- External Dimensions (LxWxH)
- 9250 x 2600 x 3330 mm
Engine
- Engine Model
- ShangChai SC9DK220G3
- Rated Rotation
- 2200 r/min
Blade Specifications
Blade Angles
| Metric | Value |
|---|---|
| Max Tilting Angle | 90° |
| Rotating Angle | 360° |
| Cutting Angle Range | 30-65° |
- Blade Length
- 3962 mm
Steering and Maneuverability
Steering Angles
- Max front wheel steering angle: 45°
- Max articulated steering angle: 25°
- Min. Turn Radius
- 8100 mm
