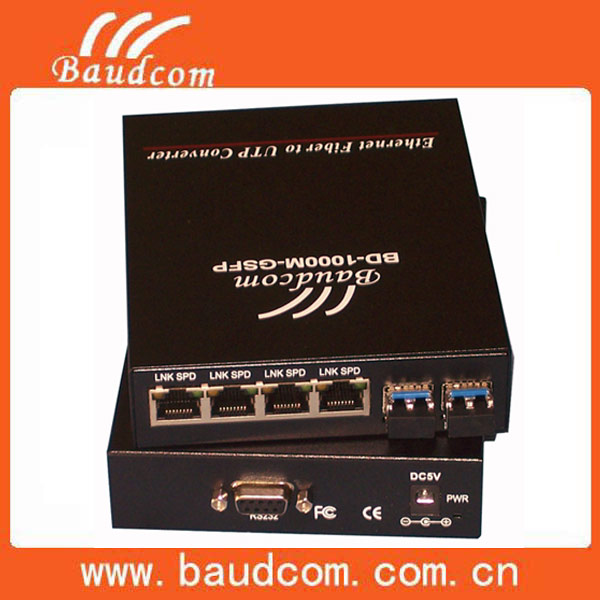

Gigabit SFP Media Converter with 4 UTP and 2 SFP Ports
The Gigabit SFP media converter converts four 10/100/1000M UTP ports to two 1000M SFP fiber ports. It allows customers to select different 1000M SFP modules based on their requirements, including 1000Base-T, 1000Base-SX, or 1000Base-LX.
Technical Specifications
Overview
High-Performance Network Conversion
This Gigabit SFP media converter is designed to bridge 10/100/1000M Ethernet networks with fiber optic infrastructure. Featuring four UTP RJ45 ports and two SFP slots, it offers flexible deployment options for both short and long-distance transmission. It supports a wide range of SFP modules, making it a versatile solution for scaling network configurations in enterprise environments.
Connectivity
Interface Configuration
| Interface Type | Quantity | Connector |
|---|---|---|
| Ethernet (UTP) | 4 | RJ-45 |
| Fiber (SFP) | 2 | LC/SC |
- Supported Standards
- IEEE802.3u1000Base-TX1000Base-FX10/100/1000Base-T
Technical Specifications
Performance Metrics
5 VDC
Input Voltage
3 A
Rated Current
100 m
UTP Cable Range
- Dimensions
- 140mm x 110mm x 40mm
Environmental
Operating Conditions
- Operating Temperature: 0 to 60°C
- Storage Temperature: -20 to 85°C
- Relative Humidity: 5% to 95% (non-condensing)
Compatibility
Supported Fiber Categories
- Single-mode: 8.3/125, 9/125, 10/125um
- Multi-mode: 50/125, 62.5/125um
