Technical Specifications
Overview

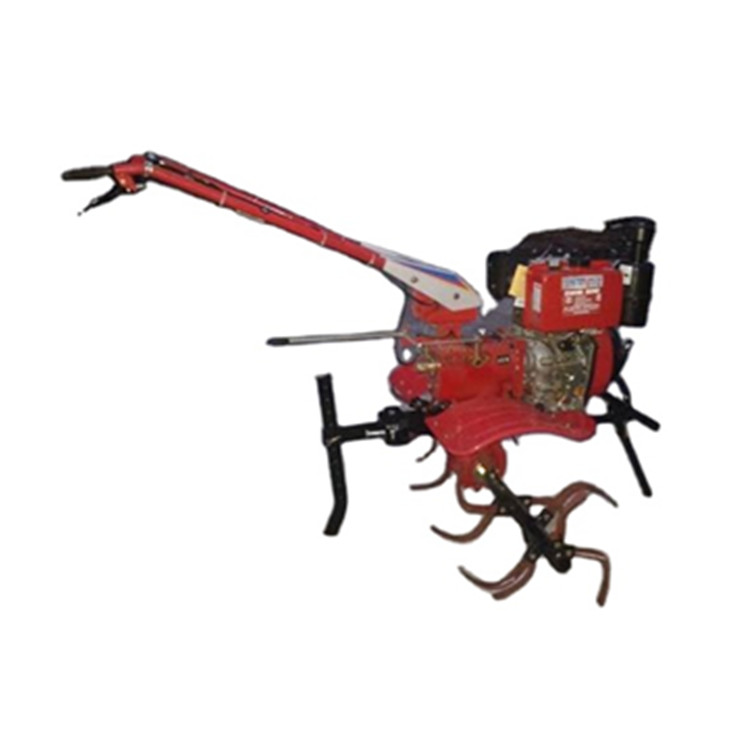

Professional Grade Rotary Tiller
This high-performance rotary tiller is engineered for efficient soil preparation in small to medium agricultural plots and gardens. It features a robust diesel engine and a versatile gear-driven transmission system to ensure deep tillage and consistent performance. With ergonomic handlebar adjustments and high-capacity blade arrays, it offers the maneuverability and power required for demanding cultivation tasks.
Engine and Power

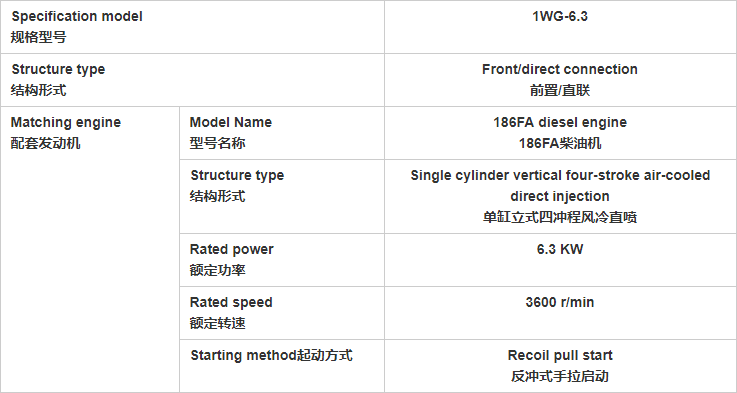

Engine Specifications
6.3 kW
Rated Power
3,600 r/min
Rated Speed
- Engine Configuration
- 186FA DieselSingle CylinderFour-strokeAir-cooledDirect InjectionRecoil Start
Performance

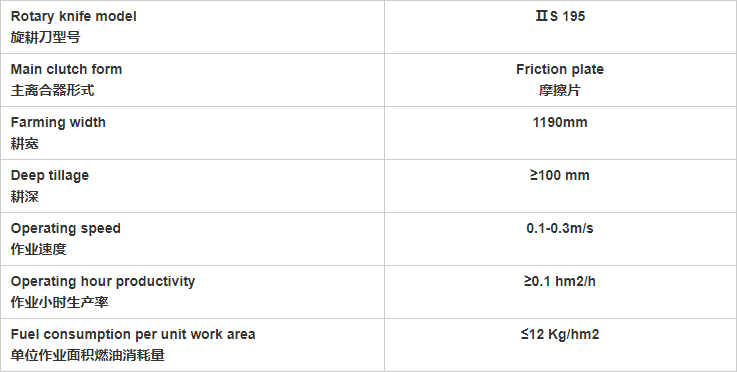

Tillage Performance
| Metric | Value |
|---|---|
| Farming Width | 1190 mm |
| Deep Tillage | ≥100 mm |
| Operating Speed | 0.1 - 0.3 m/s |
| Productivity | ≥0.1 hm²/h |
| Fuel Consumption | ≤12 kg/hm² |
Mechanical and Design
Blade and Gear Specs
- Rotary knife model: IS 195
- Total blades: 32 pieces
- Gear transfer method
- Direct-linked connection
- Low knife speed: 83 r/min
- High knife speed: 145 r/min
- Physical Dimensions
- 1700 x 1130 x 950 mm (129 kg)
