Technical Specifications
Product Overview
Professional Soil Cultivation

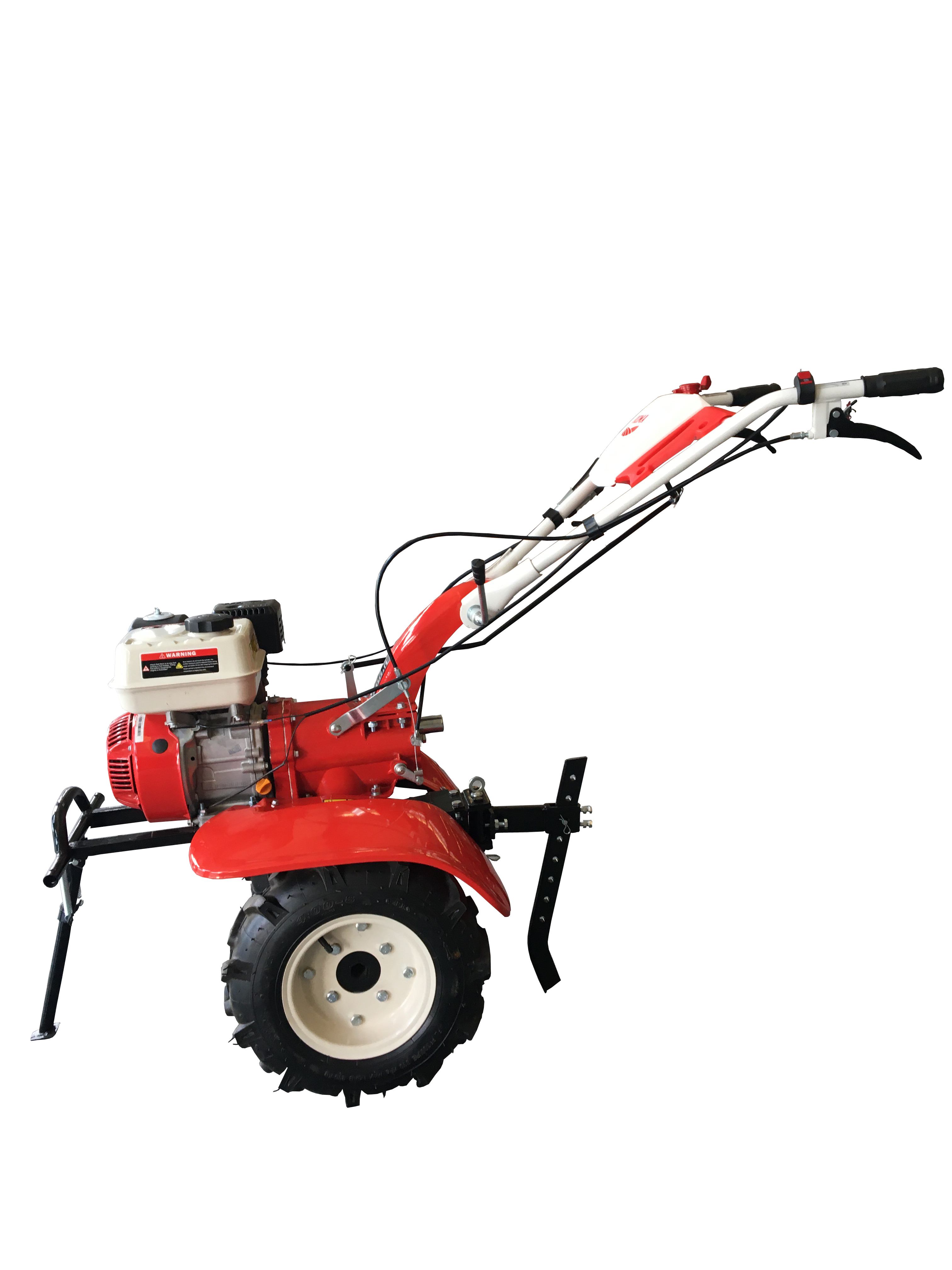

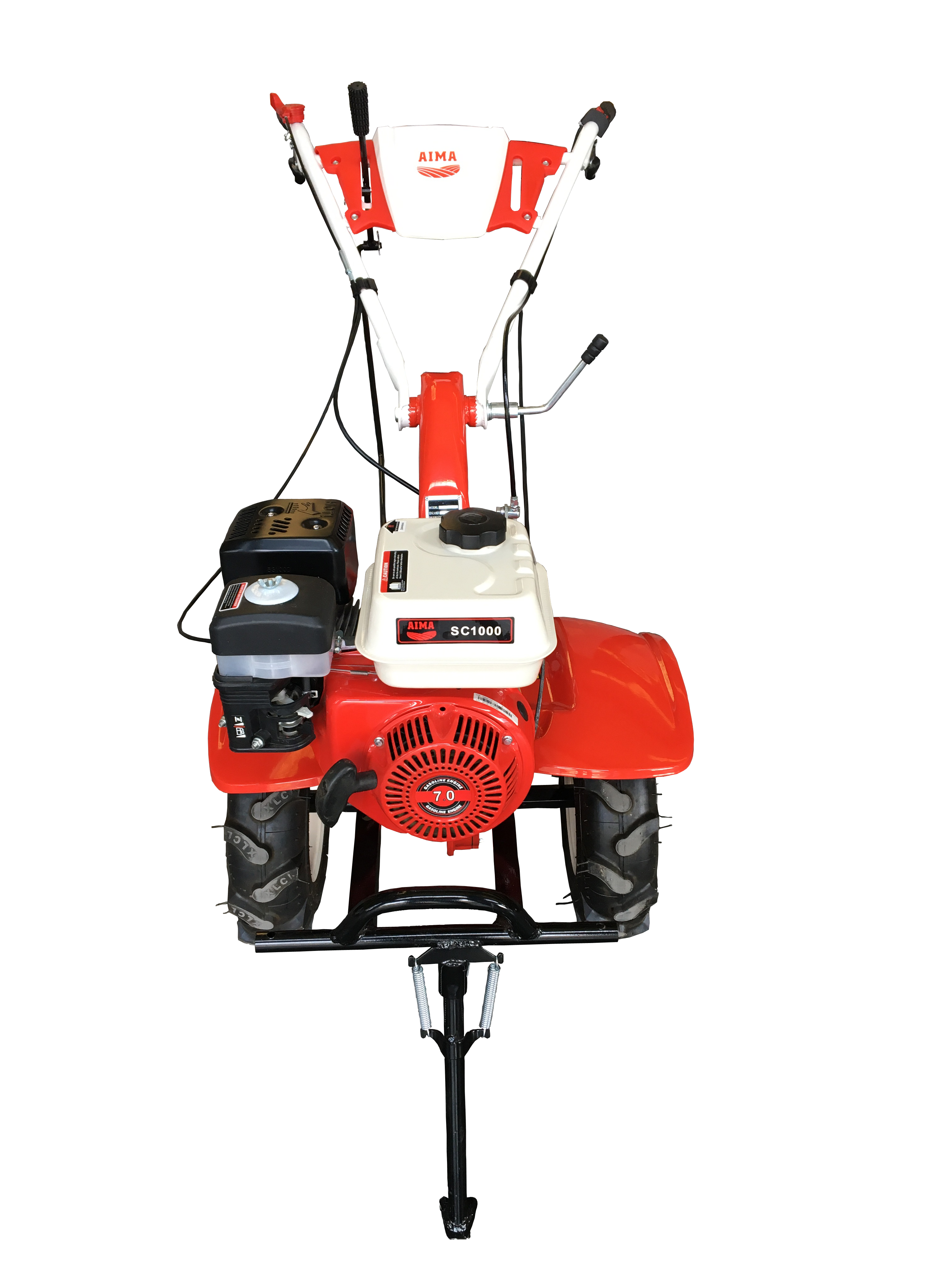

The SC1000 garden tiller is a robust, efficient machine engineered for optimal soil preparation in both agricultural and small-scale gardening applications. Its ergonomic arc handle design significantly enhances maneuverability while reducing operator fatigue during extended use. Powered by a high-performance 170F gasoline engine, this unit delivers consistent power for effective tilling across various soil types.

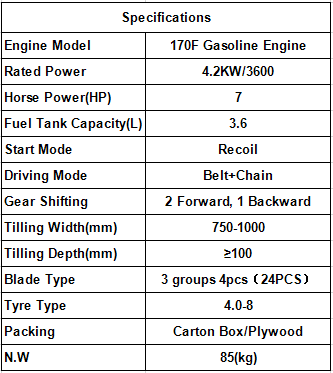

Technical Specifications
Engine Performance
7 HP
Horsepower
4.2 kW
Rated Power
3,600 RPM
Rated Speed
Operational Data
| Feature | Specification |
|---|---|
| Fuel Tank Capacity | 3.6 L |
| Start Mode | Recoil |
| Driving Mode | Belt and Chain |
| Transmission | 2 Forward, 1 Backward |
| Tilling Width | 750 - 1000 mm |
| Tilling Depth | >= 100 mm |
| Tire Type | 4.0-8 |
Equipment & Construction
- Blade Configuration
- 3 groups of 4-piece blades (24 pieces total)
- Net Weight
- 85 kg
- Key Features
- 170F Petrol EnginePatent Design FenderArc Handle DesignAdjustable Depth Control
