Galvanized Steel J-Hook Cable Support
This J-hook is designed for supporting aerial cables and service lines. It is made of hot-dip galvanized steel for corrosion resistance and durability.
Technical Specifications
Product Overview
Professional Cable Support
The SOT16.10 J-Hook is a robust cable support solution designed for aerial cable management and service line installations. Crafted from high-strength steel with a hot-dip galvanized finish, it offers superior corrosion resistance for demanding outdoor environments. Its J-shaped design allows for efficient cable placement, while the threaded M16 connection ensures reliable, secure fastening in transmission and distribution power systems.

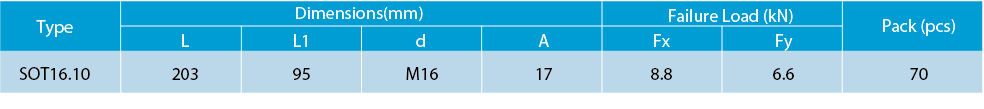

Technical Dimensions
Dimensional Details
| Parameter | Value |
|---|---|
| Total Length (mm) | 203 |
| Threaded Length (mm) | 95 |
| Thread Diameter | 16 |
| Dimension A (mm) | 17 |
Performance
Failure Load Ratings
8.8 kN
Failure Load Fx
6.6 kN
Failure Load Fy
Material & Packaging
- Material
- SteelHot-dip galvanized
- Standard Pack
- 70 pcs
