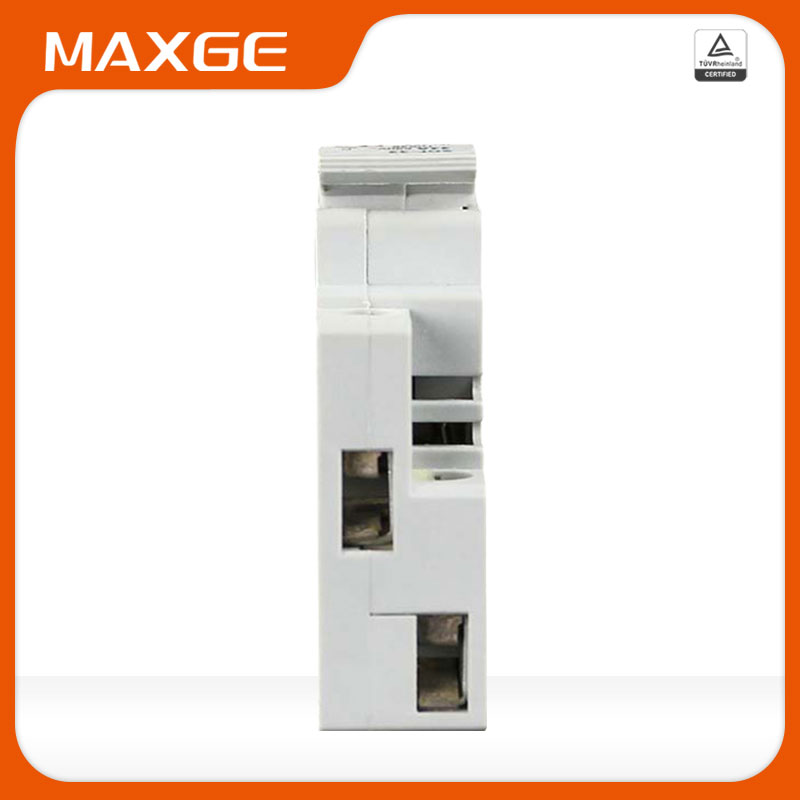

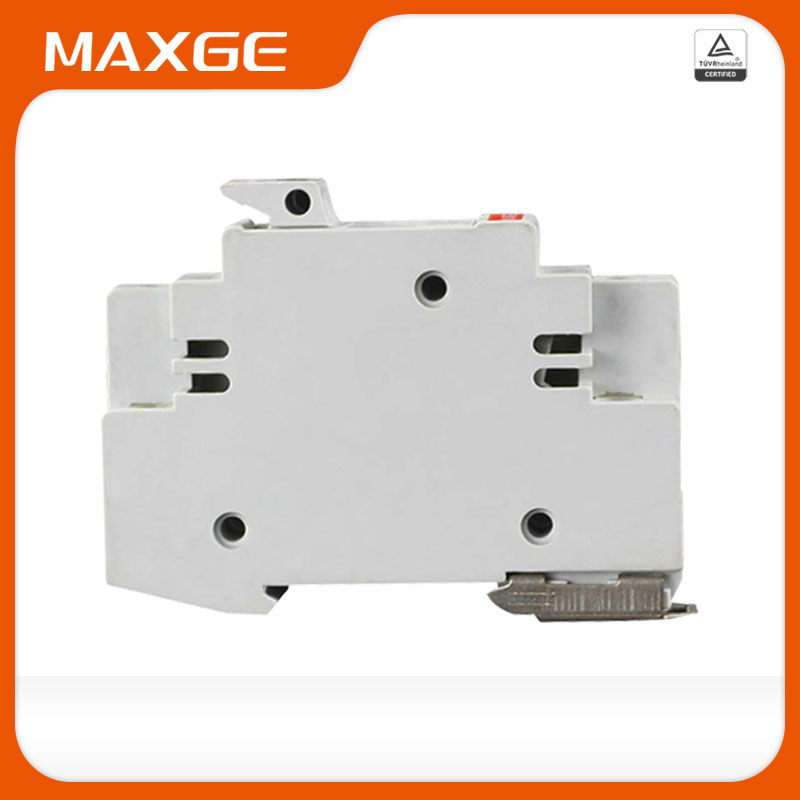

Fuse Holder and Fuse Links
This fuse holder is designed for electrical power transmission and distribution systems. It protects electrical circuits from overcurrent or short-circuit conditions.
Technical Specifications
Product Overview
Reliable Circuit Protection
This fuse holder and link system is engineered for robust electrical circuit protection in power transmission and distribution applications. Designed for high performance and safety, it features a compact, modular build that ensures secure electrical connections and easy maintenance. The unit is built to withstand demanding industrial and commercial environments, offering high breaking capacity and reliable endurance.
Technical Specifications
Electrical Ratings
32 A
Rated Current
690 V
Rated Voltage
100 KA
Breaking Capacity
Operational Parameters
| Parameter | Value |
|---|---|
| Operating Frequency | 40-60 Hz |
| Impulse Withstand Voltage | 1890 V |
| Protection Degree | IP20 |
| Terminal Torque | 2.5 N-m |
| Connection Capacity | 1-50 mm² |
- Compliance Standards
- EN/IEC 60947-3EN/IEC 60269
Environmental & Endurance
Device Endurance
1,500 cycles
Electric Endurance
8,500 cycles
Mechanical Endurance
Ambient Conditions
- Operating Temperature: -20°C to +75°C
- Ambient Temperature: -5°C to +40°C
- Max Humidity: 90%
Certifications
International Certifications
CCCVDEKEMA-EURIntertekTUV RheinlandASACESGSISO 9001:2015
