Technical Specifications

Overview

Professional French Standard Power Solution

The S81 series single French power outlet is a modular, high-reliability electrical component designed for modern residential and commercial installations. Featuring a 2P+E configuration with integrated child-proof shutters, this outlet prioritizes safety and ease of installation through screwless terminals. With a robust fire-resistant PC construction and a 10-year mechanical warranty, it provides a durable and versatile solution for various interior design requirements.

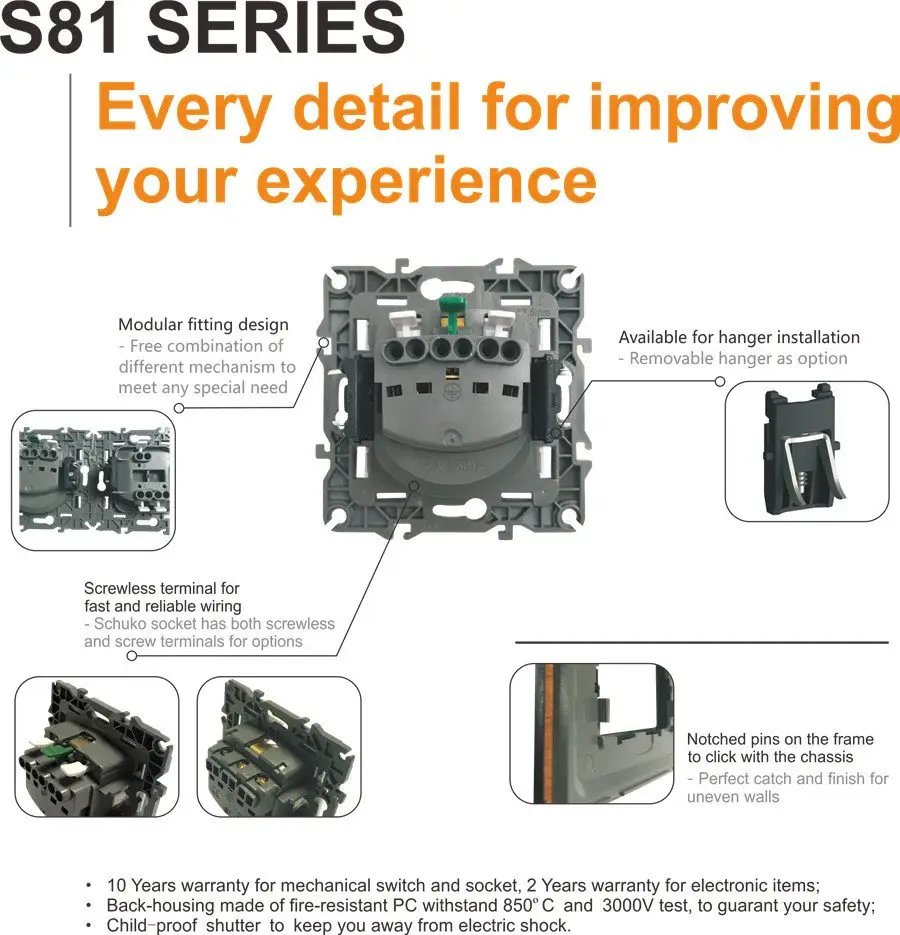

S81 series modular design features and safety specifications — Modular fitting design with fire-resistant construction and child-proof shutters.

Technical Specifications

Electrical Ratings

16 A

Rated Current

250 V AC

Rated Voltage

850 °C

Fire Resistance Temperature

Performance Standards: 50/60 HzNF C 61-3142P+EFrench Standard

Design and Compatibility

Customization & Aesthetics

2 Design types: Flat and Cambered
4 Material options: Plastic, Metal, Glass, Wood
Up to 27 colors available
Modular fitting for free combination

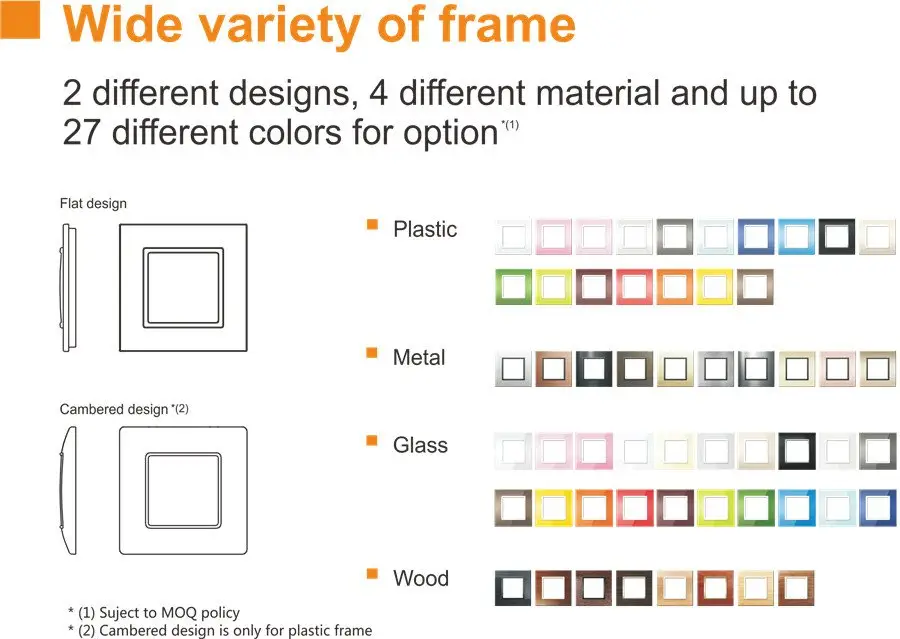

Visual representation of frame materials and finish options — Wide variety of frame designs, materials, and colors available to match interior aesthetics.

Installation Details

Physical Dimensions

Component	Size
Product Dimensions	74.7 x 74.7 x 40.7 mm
Faceplate Size	92.0 x 92.0 mm
Terminal Type	Screwless

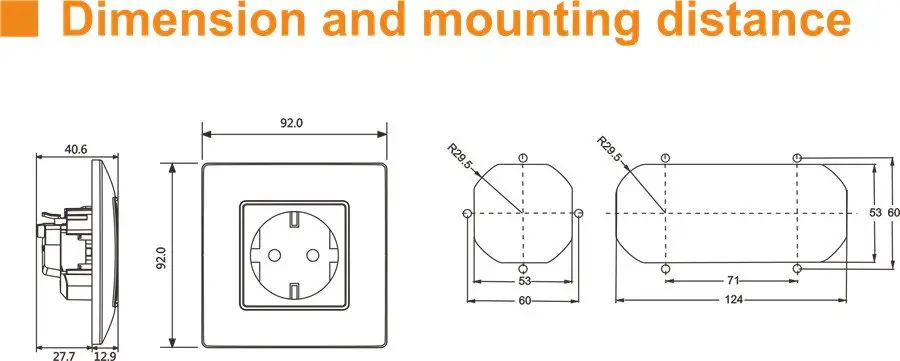

Technical drawing showing mounting dimensions and hole spacing — Precision dimensions for square and rectangular mounting configurations.

Commercial Terms

Order Information

10-Year Mechanical WarrantyMOQ 3000 pcsFOB SHUNDE
