Four-Wheel Drive Off-Road Engineering Vehicle
This four-wheel drive off-road engineering vehicle utilizes a robust chassis for excellent off-road capabilities. It is suitable for rescue operations, road construction, and material transportation in harsh environments.
Technical Specifications
Overview
Rugged Engineering Capability
This four-wheel-drive off-road engineering vehicle is designed to tackle the most demanding environments, from disaster relief operations to heavy-duty material transport. Built on a classic off-road chassis, it offers exceptional mobility on harsh terrain and is engineered for maximum durability. With a versatile cargo platform and robust mechanical specifications, this vehicle serves as a reliable workhorse for construction, mining, and industrial sectors.
Performance
Engine Metrics
125 kW
Maximum Power
560 N.m
Max Torque
5,900 ml
Displacement
Off-Road Specs
| Feature | Value |
|---|---|
| Approach Angle | 29.5° |
| Departure Angle | 17.6° |
| Max Fording Depth | 570 mm |

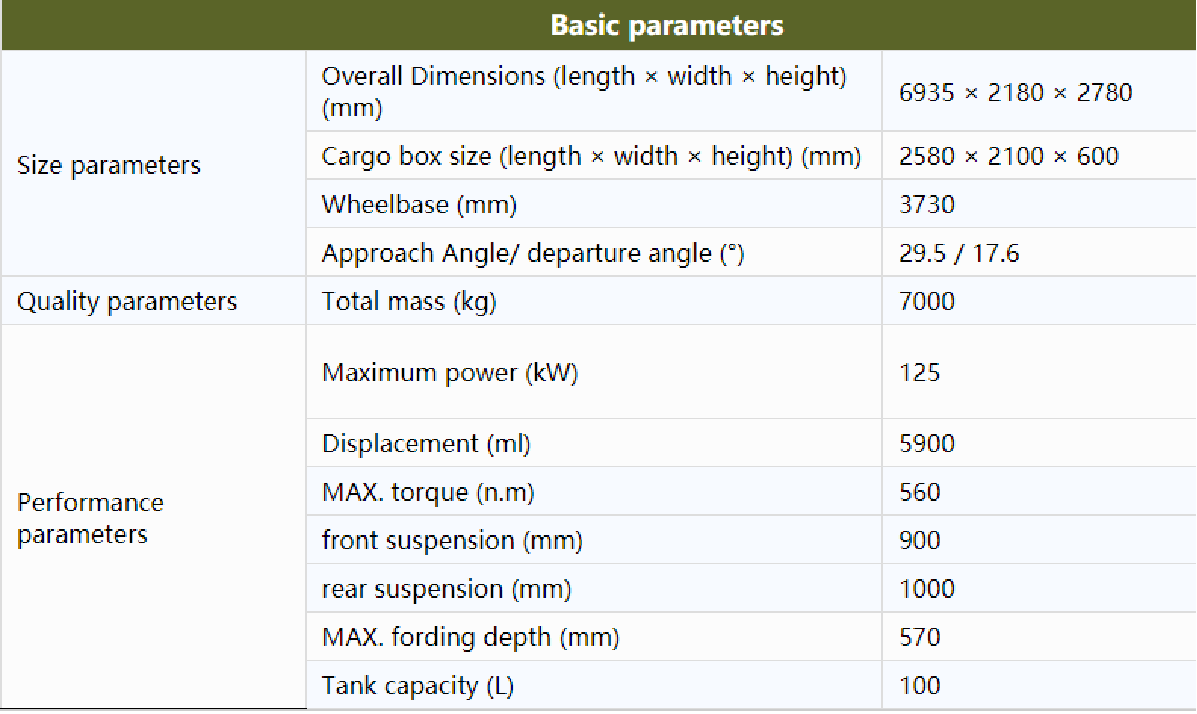

Technical Specifications
Vehicle Dimensions
- Overall: 6935 x 2180 x 2780 mm
- Cargo Box: 2580 x 2100 x 600 mm
- Wheelbase: 3730 mm
Axle Capacity
- Front Axle: 2.8 tons
- Rear Axle: 4.2 tons
- Total Mass
- 7000 kg

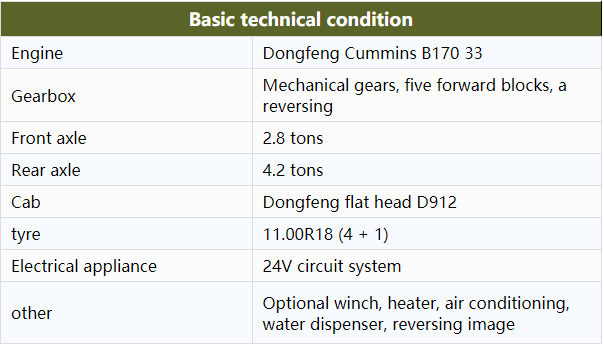

Equipment & Features
- Available Options
- WinchHeaterAir ConditioningWater DispenserReversing Image System
- Electrical System
- 24V circuit system
