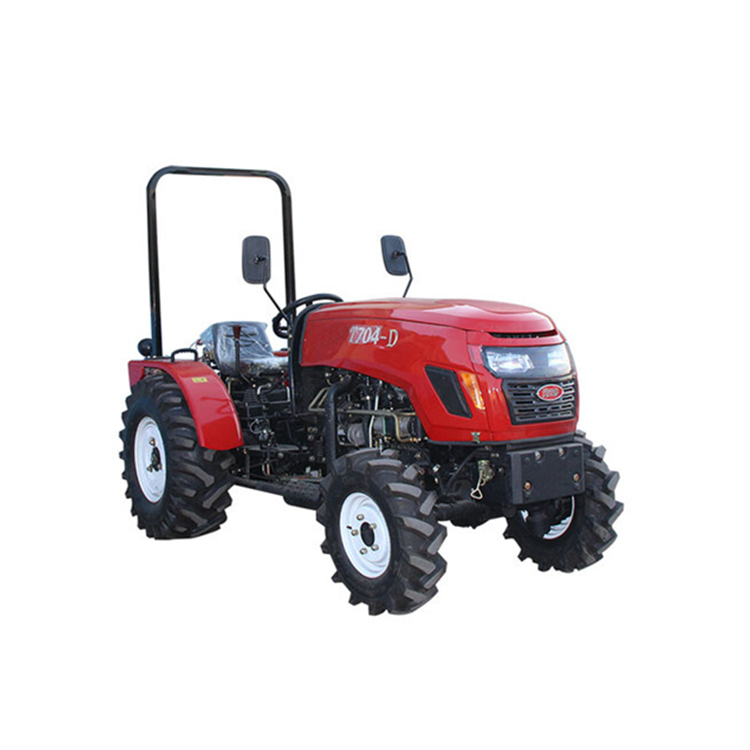

Four-Wheel Agricultural Tractor
This four-wheel tractor is designed for agricultural applications. It features a robust chassis, reliable engine, and a three-point hitch system.
Technical Specifications
Overview
Versatile Agricultural Performance
This four-wheel agricultural tractor is engineered for demanding farming environments, offering a robust chassis and reliable power for plowing, tilling, and planting tasks. Designed for open-air operation, it features a durable Yunnei 4-cylinder engine and a flexible 8F+2R gear configuration to handle various field conditions. With its three-point linkage system and versatile hydraulic controls, this tractor provides the essential utility needed for efficient farm management.

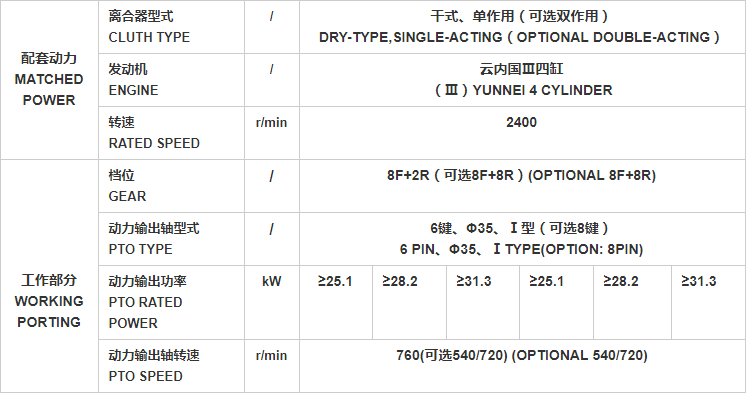

Engine & Performance
PTO Specifications
760 r/min
PTO Speed
31.3 kW
Max PTO Power
- Engine Type
- Yunnei 4-cylinder (National III)
- Rated Speed
- 2400 r/min
Transmission & Drivetrain
- Gear Configuration
- 8F+2R (Optional 8F+8R)
- Clutch Type
- Dry-type, single-acting (optional double-acting)

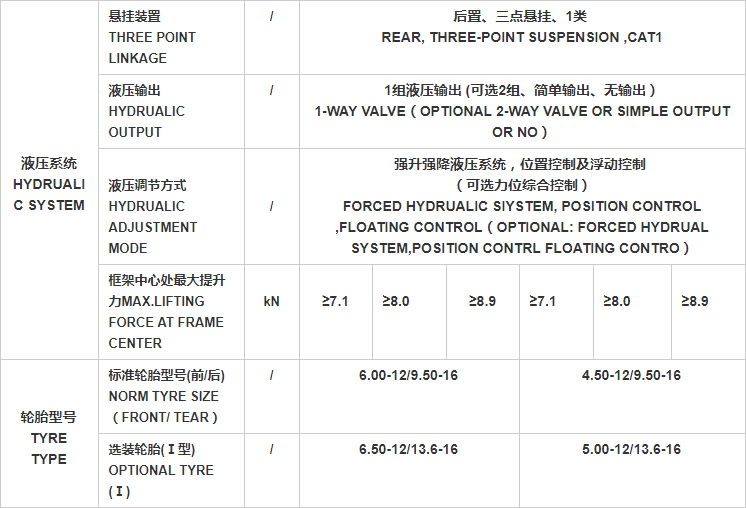

Hydraulic System
- Adjustment Modes
- Position ControlFloating ControlForced Hydraulic System
- Max Lifting Force
- 8.9 kN

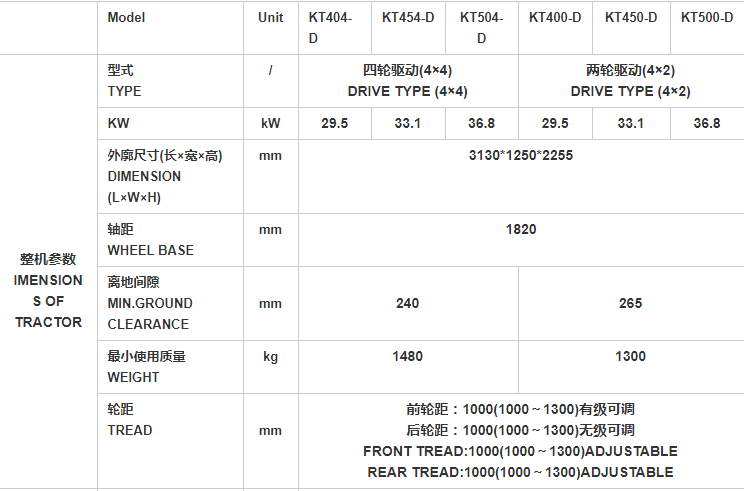

Dimensions & Weight
Weight
- 1,300
- 1,480
- Dimensions (L x W x H)
- 3130 x 1250 x 2255 mm
- Wheelbase
- 1820 mm
Tires
Standard Tire Sizes
- 6.00-12/9.50-16
- 4.50-12/9.50-16
