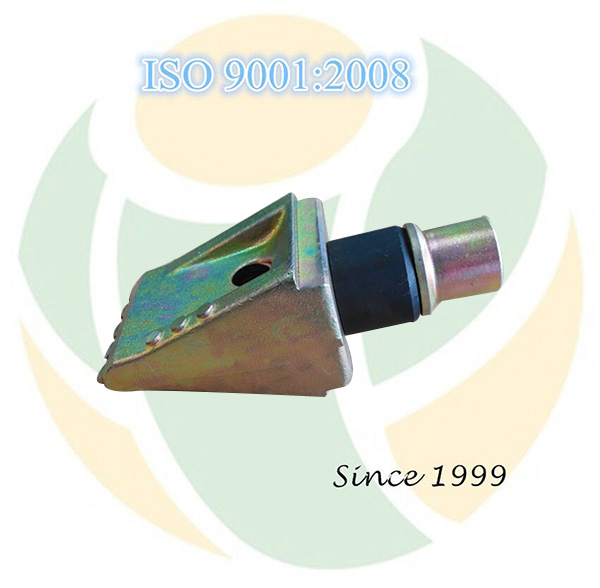

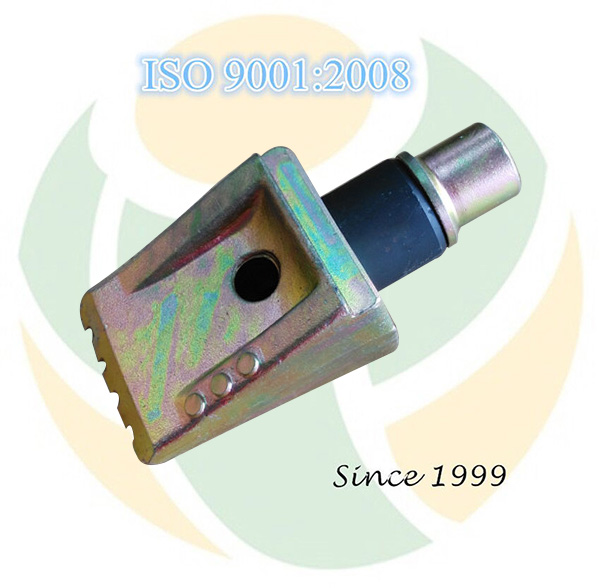

Foundation Bucket Drilling Flat Teeth
These flat teeth are designed for abrasive soil and rock drilling in heavy-duty applications. Their robust construction ensures efficient soil penetration and extended service life in demanding construction environments.
Technical Specifications
Product Overview
High-Performance Drilling Teeth
These flat drilling teeth are engineered for heavy-duty foundation bucket applications, specifically designed to handle abrasive soil and rock drilling. Constructed from high-strength forged steel with tungsten carbide inserts, they offer exceptional durability and wear resistance. The design features a flexible 180-degree adjustable cutting angle and a geometry that ensures optimal cutting efficiency and easy replacement.
Technical Specifications
- Body Material
- AISI4140
- Tip Material
- Tungsten Carbide
- Hardness
- HRC40~44
- Weight
- 2.3 kg/pc
Performance Features
Key Benefits
- Adjustable cutting angle (up to 180°)
- Easy replacement with extraction tool
- Compact construction for complex geometry
- High wear resistance via manganese steel
- Tungsten carbide inserts on cutting edge and flanks
- Optimized cutting geometry
- Application Suitability
- Abrasive SoilRock DrillingHeavy Duty
