Technical Specifications

Product Overview

Precision Welding for Flexible Electronics

This flexible printed circuit board spot welding head is precision-engineered for delicate assembly and repair tasks. Featuring high-conductivity materials and optimized electrode placement, it ensures consistent, high-quality spot welds on complex geometries. Its compact and lightweight design facilitates integration into both manual workstations and automated assembly lines.

Technical Specifications

Design Features

Compact and lightweight footprint
Optimized electrode placement
High-conductivity material construction
Seamless automated system integration

Connector Interface: 3.5mm audio jack
Primary Applications: Electronics AssemblyMicro-manufacturingMedical Device AssemblyRepair Work

Performance Metrics

Operational Performance

1 High

Precision Level

100 Optimized

Conductivity

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

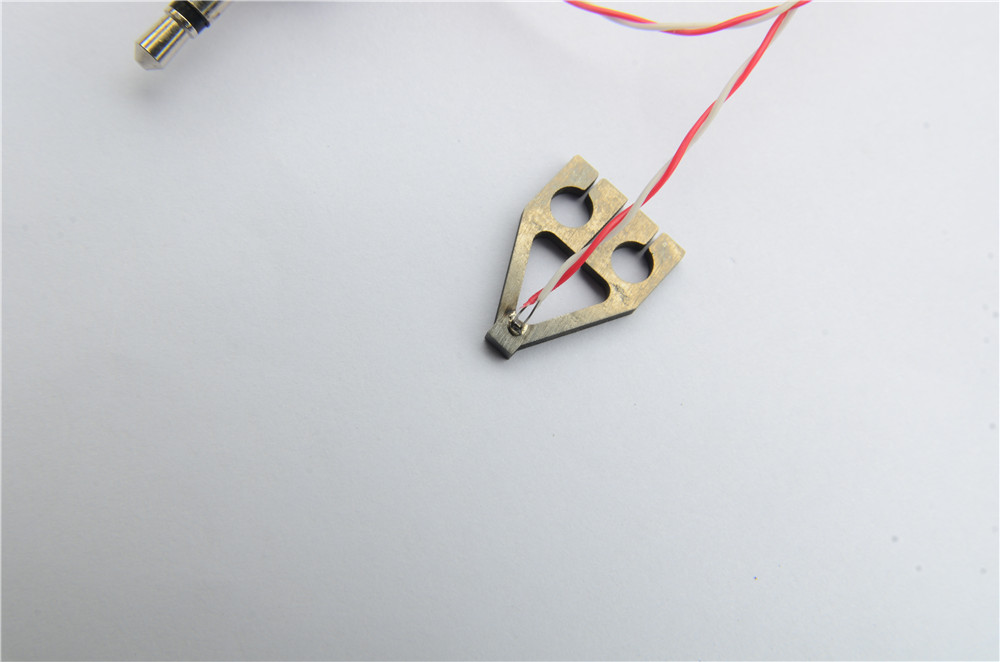

Flexible Printed Circuit Board Spot Welding Head

This welding head is compatible with various welding equipment, including electronic spot welding tips, welder touch machines, and ultrasonic welding machines. It is professionally used in USB welding, FPC/PCB welding, and FFC/PCB welding.

Request a Quote Download PDFPDF

Flexible Printed Circuit Board Spot Welding Head - Image 1
