Mobile Scissor Lift Platform
Mobile scissor lift platforms offer a versatile solution for high-altitude equipment installation and maintenance. They are suitable for use in multi-layer workshops, warehouses, and production lines, as well as for loading and unloading trucks.
Technical Specifications
Product Overview
Versatile Aerial Work Platform

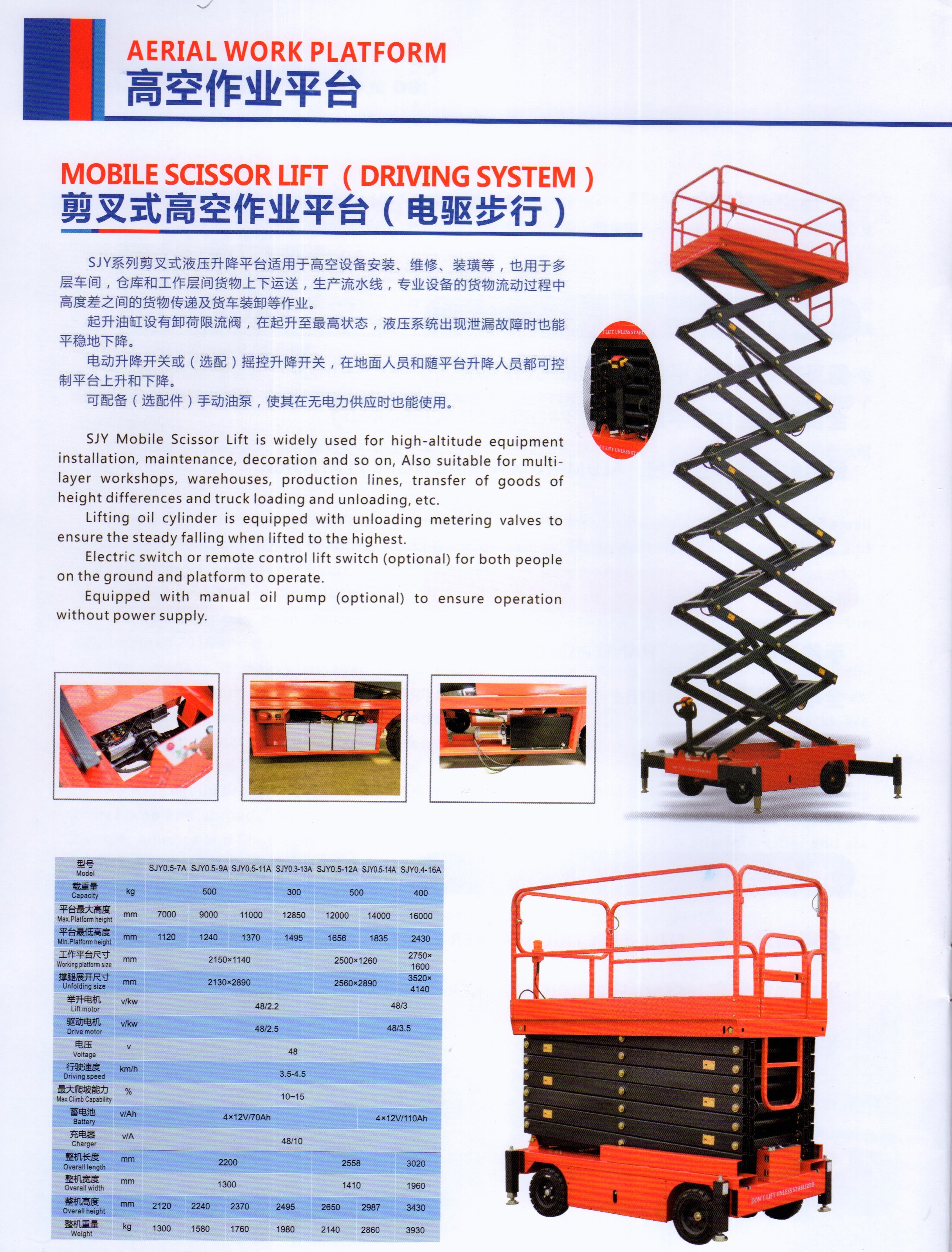

The SJY Mobile Scissor Lift is a professional-grade solution engineered for high-altitude installation, maintenance, and facility decoration. Featuring a robust hydraulic system with integrated safety valves, it ensures stable and controlled lifting even in the event of pressure loss. This versatile equipment is widely utilized in multi-layer workshops, warehouses, and production lines to streamline the transfer of goods across varying heights.
Key Performance Metrics
Performance Overview
500 kg
Maximum Load Capacity
16 m
Max Platform Height
4.5 km/h
Driving Speed
Technical Specifications
Model Specifications
| Model | Capacity (kg) | Max Height (mm) | Weight (kg) |
|---|---|---|---|
| SJY0.5-7A | 500 | 7,000 | 1,300 |
| SJY0.5-9A | 500 | 9,000 | 1,580 |
| SJY0.5-11A | 500 | 11,000 | 1,760 |
| SJY0.3-13A | 300 | 12,850 | 1,980 |
| SJY0.5-12A | 500 | 12,000 | 2,140 |
| SJY0.5-14A | 500 | 14,000 | 2,860 |
| SJY0.4-16A | 400 | 16,000 | 3,930 |
Key Features
Operational Capabilities
- Dual control interface (ground and platform)
- Optional remote control operation
- Emergency manual oil pump for power-outage usage
- Unloading metering valves for safe, steady descent
- Self-propelled driving system
Safety & Compliance
- Safety Standards
- Hydraulic Safety ValvesEmergency DescentStabilizer WarningProfessional Aerial Equipment
