Flexible LED Display Module
Flexible LED display modules are designed for curved and irregular surfaces. These soft LED displays are available in various pixel pitches ranging from P6 to P31.2.
Technical Specifications
Product Overview
Versatile Flexible LED Solution

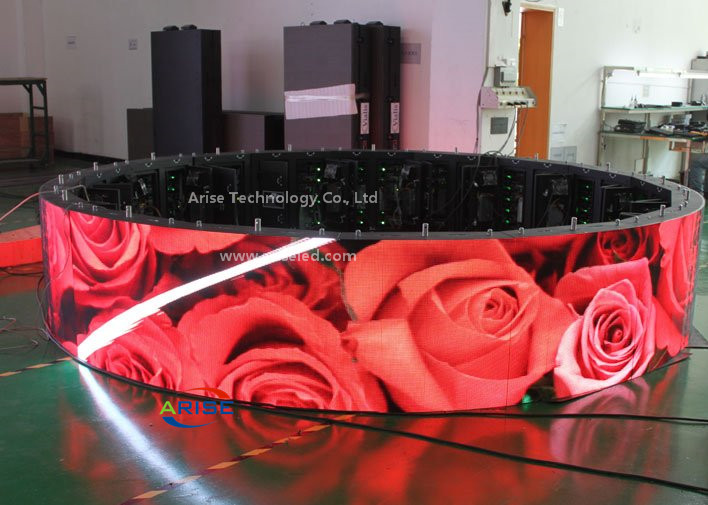

This flexible LED display module is engineered for creative and curved installations, allowing for seamless integration into non-planar structures like columns and architectural features. With a high brightness of 6500 cd/㎡ and a 140° viewing angle, it delivers vibrant, high-quality visuals suitable for demanding environments. The robust IP65 protective grade ensures reliability, making it an excellent choice for dynamic advertising, stage backdrops, and unique visual displays.
Display Performance
Brightness
6,500 cd/㎡
Brightness
- Pixel Pitch
- 10 mm
- Refresh Rate
- 4200 Hz
- Viewing Angle
- 140 °
Technical Specifications
- LED Type
- 3 in 1 SMD
- Pixel Configuration
- 1R1G1B
- Driving Method
- 1/4 scan
- Processing Depth
- 16 bit
Physical Attributes
Protective Grade
IP65
- Standard Display Unit
- 1280mm x 960mm
- Weight
- <20KGS
Operating Environment
- Operating Temperature
- -20ºC to +60ºC
- Operating Humidity
- 20% to 90%
Power & Connectivity
Power Consumption
- Max: ≤1150W/㎡
- Avg: ≤400W/㎡
- Supported Input Signals
- S-videoVGARGBComposite VideoSDI
