Aluminum Rental LED Display with ARC Screen

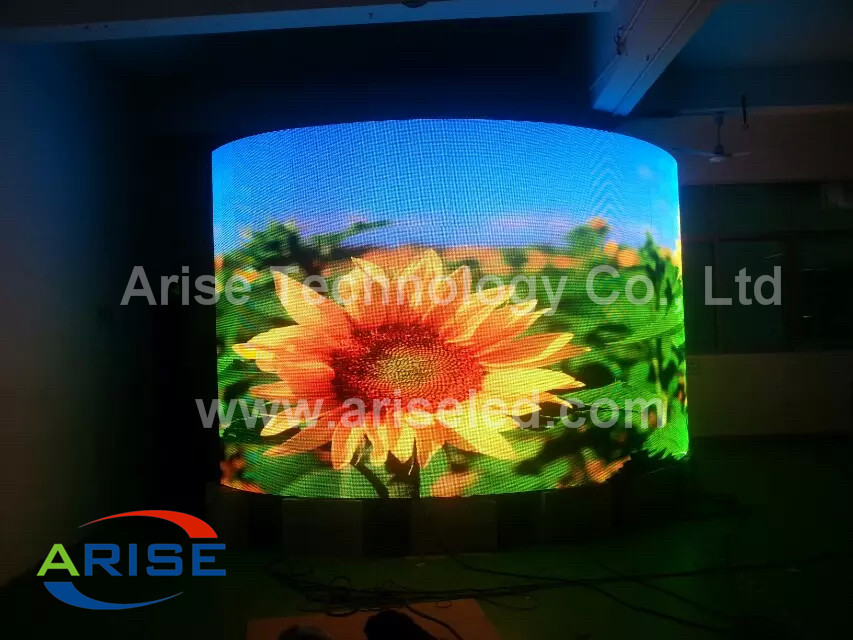

This die-cast aluminum rental LED display is designed for both indoor and outdoor environments. It features an ARC screen, allowing for curved display configurations.
Technical Specifications
Overview
Versatile Rental LED Display

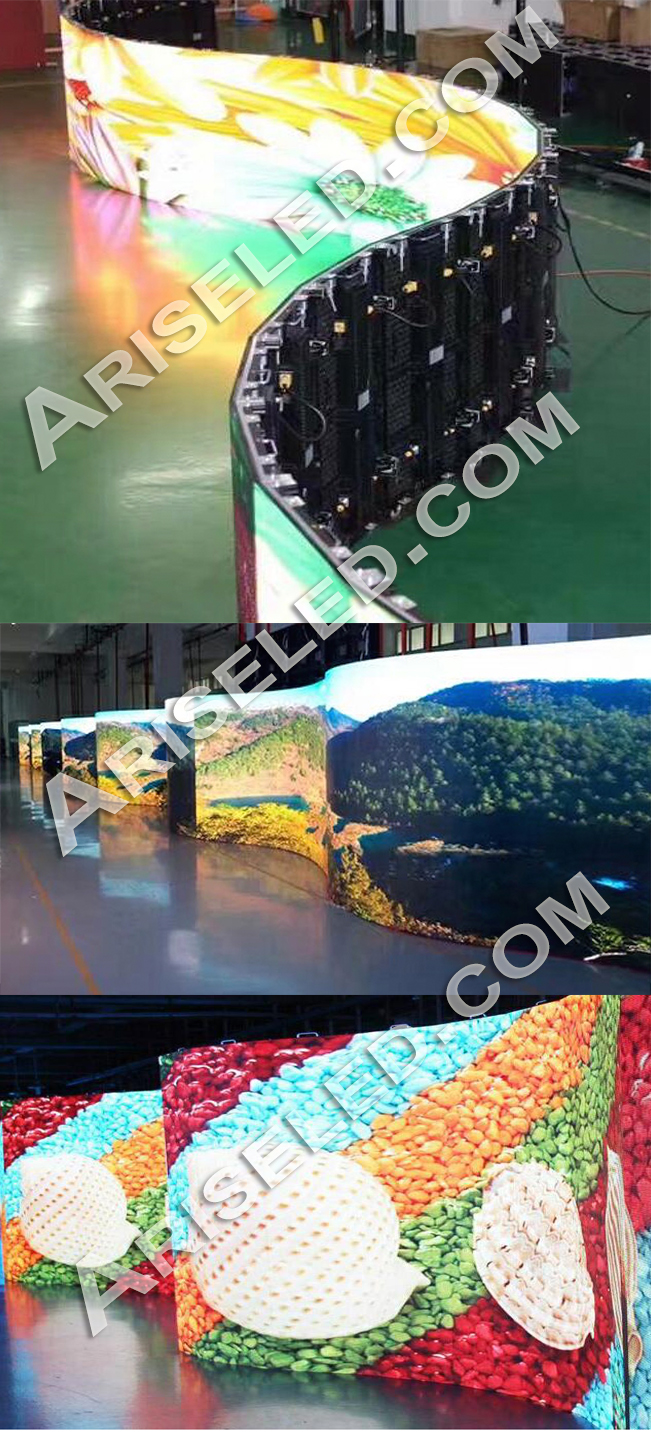

This high-performance die-casting aluminum LED display is engineered for both indoor and outdoor rental applications. Featuring a thin 6.5cm cabinet design and quick-locking mechanisms, it ensures rapid assembly and maintenance for professional staging environments. The system supports concave and convex configurations, allowing for creative curved screen setups that stand out from standard flat displays.
Physical Characteristics
- Cabinet Thickness
- 6.5 cm
- Surface Flatness Error
- Under 0.2cm
- Assembly Features
- LightweightQuick-locking structureConcave setup supportedConvex setup supported
Technical Specifications
Available Pixel Pitches
- P3.91
- P4.81
- P5.95
- P6.25
- P6.94
- P8.928
Technical Comparison Table
| Feature | Indoor Specs | Outdoor Specs |
|---|---|---|
| Pitch (mm) | P3.91/P4.81/P5.95/P6.25 | P4.81/P5.95/P6.25 |
| Pixel Density (dots/m2) | 65746/43264/28224/25600 | 43264/28224/25600 |
- Pixel Composition
- 1R1G1B
- Module Size
- 250x250 mm
Performance Metrics
Thermal Design
Low heat releaseLow noiseExcellent thermal dispersion
