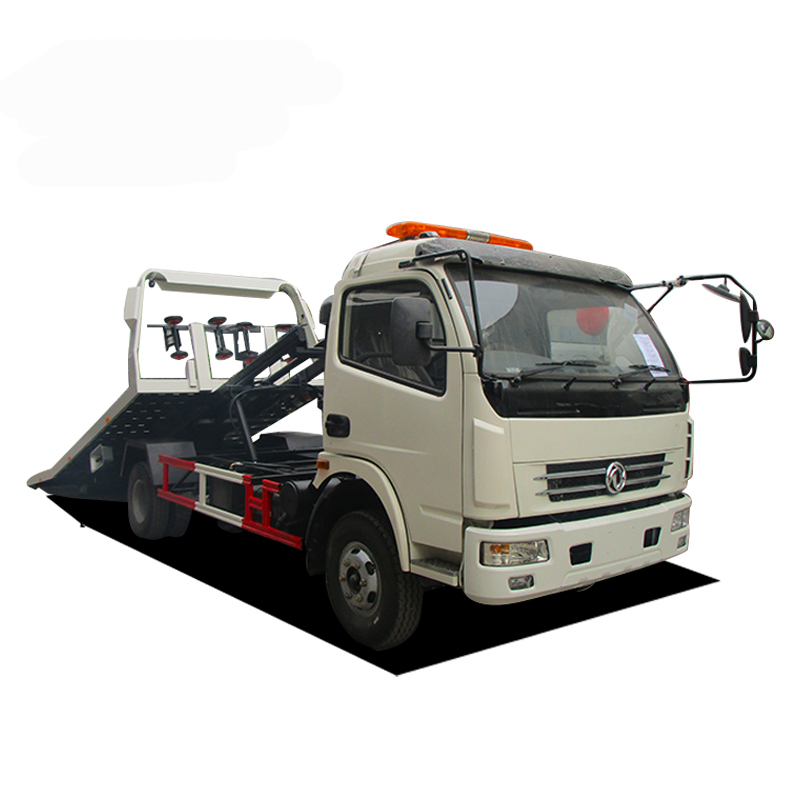

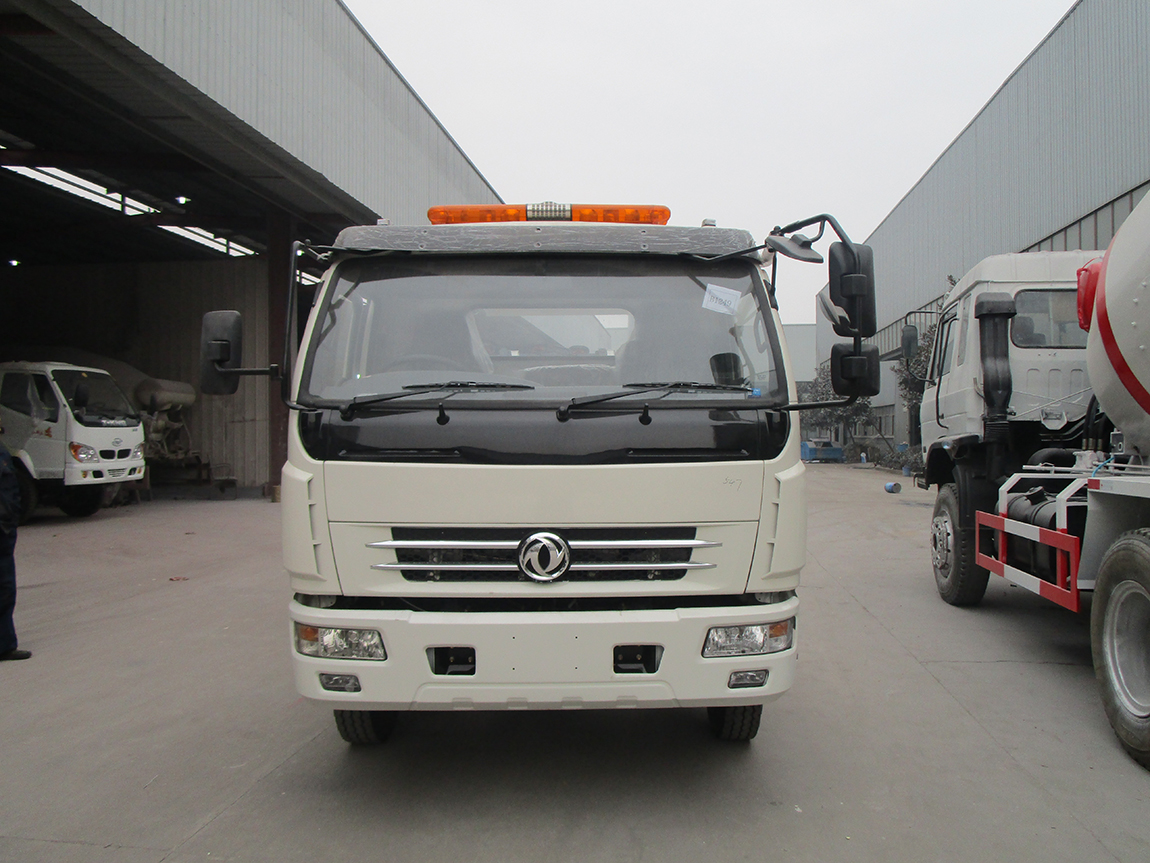

Flatbed Wrecker Truck for Vehicle Recovery
This wrecker truck is designed for towing and recovery operations. It features a flatbed platform with hydraulic lift capabilities for easy vehicle loading and unloading.
Technical Specifications
Overview
Professional Vehicle Recovery Solution
This flatbed wrecker truck is engineered for reliable vehicle recovery and transport operations. Featuring a sturdy 7800kg GVW chassis and a 4000kg load capacity, it is designed for demanding towing environments. The integrated hydraulic winch system and flatbed configuration ensure efficient and safe loading of disabled vehicles.
Performance
Key Performance Metrics
4,000 kg
Max Flatbed Payload
120 hp
Engine Power
90 km/h
Max Speed
Technical Specifications
Chassis and Dimensions
| Parameter | Value |
|---|---|
| GVW | 7800 kg |
| Dimensions | 7400*2350*2510 mm |
| Wheelbase | 3800 mm |
| Curb Weight | 4800 kg |
Engine Specifications
- Model: CY4102BZQ
- Emission: Euro3
- Displacement: 3856 ml
- 4-stroke, 4-cylinders in line
- Water cooling system
Recovery Equipment
Towing and Recovery Specs
- Flatbed Size: 5600 x 2300 mm
- Hydraulic Winch Rated Haulage: 4000 kg
- Steel Wire Rope Length: 25 m
- Rear Arm Lift Capacity: 1.8 ton
