Technical Specifications

Overview

Flat Bottom Drilling Buckets

These flat bottom drilling buckets are engineered for high-efficiency rock drilling and piling operations. They are categorized into three distinct series—A, B, and C—based on torque capacity, allowing for precise selection based on project requirements ranging from 12,000 KN.m up to 35,000 KN.m. Built with reinforced structures and varying tooth counts, these tools are designed to handle diverse soil and rock conditions in construction and foundation engineering.

Series Specifications

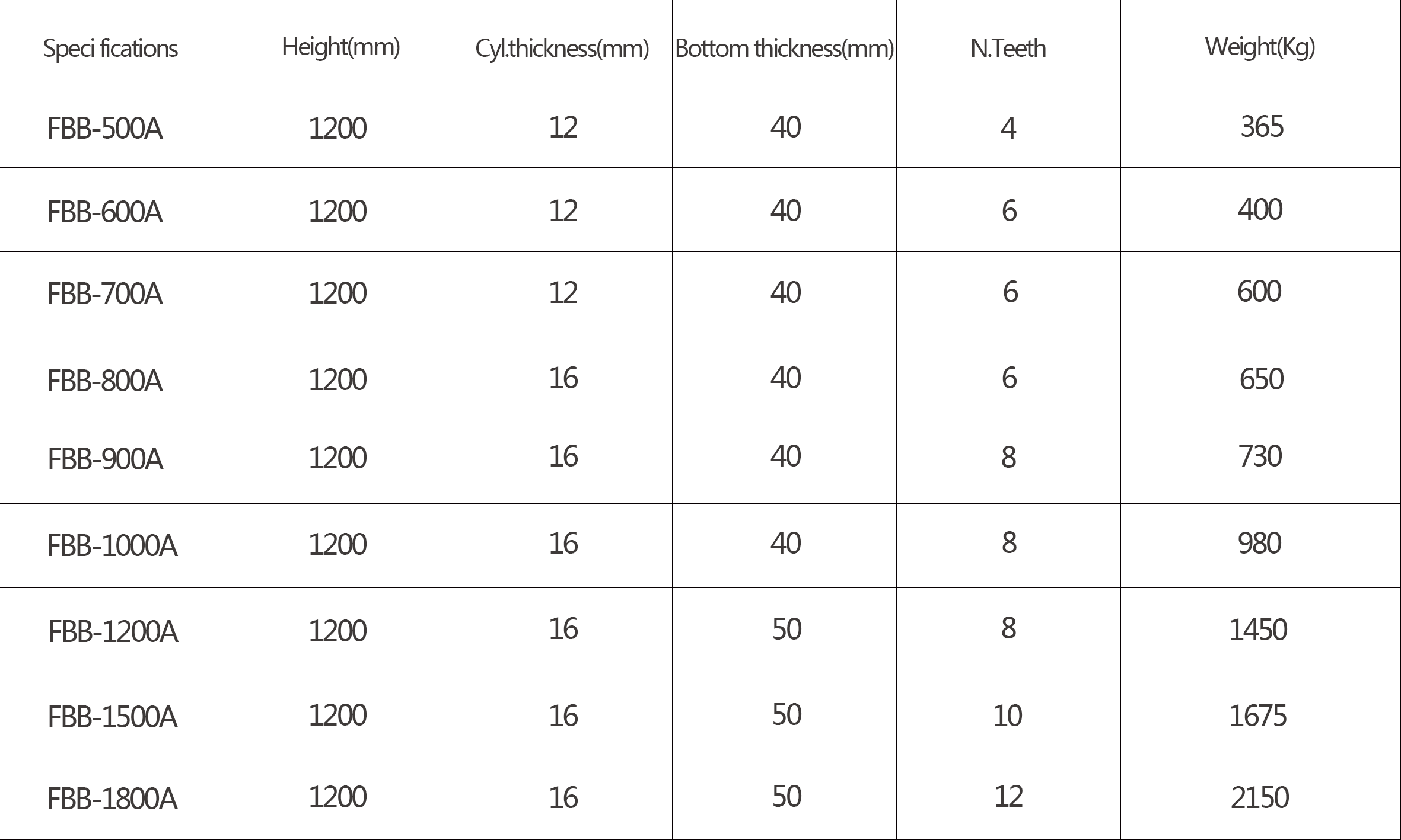

Series A (Up to 12000 KN.m)

Model	Height (mm)	Cyl. Thickness (mm)	Bottom Thickness (mm)	Teeth	Weight (kg)
FBB-500A	1,200	12	40	4	365
FBB-600A	1,200	12	40	6	400
FBB-700A	1,200	12	40	6	600
FBB-800A	1,200	16	40	6	650
FBB-900A	1,200	16	40	8	730
FBB-1000A	1,200	16	40	8	980
FBB-1200A	1,200	16	50	8	1,450
FBB-1500A	1,200	16	50	10	1,675
FBB-1800A	1,200	16	50	12	2,150

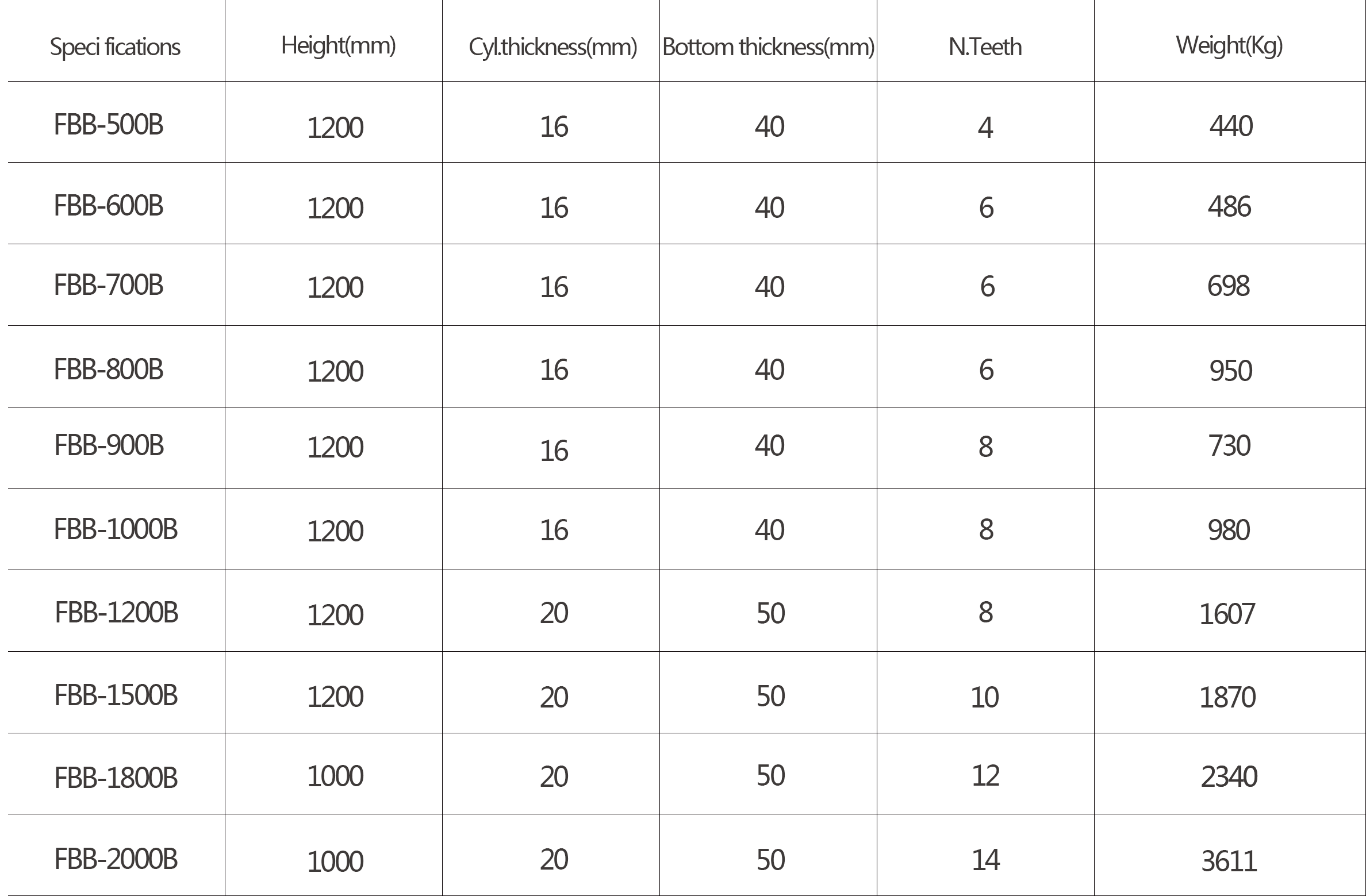

Series B (12000-20000 KN.m)

Model	Height (mm)	Cyl. Thickness (mm)	Bottom Thickness (mm)	Teeth	Weight (kg)
FBB-500B	1,200	16	40	4	440
FBB-600B	1,200	16	40	6	486
FBB-700B	1,200	16	40	6	698
FBB-800B	1,200	16	40	6	950
FBB-900B	1,200	16	40	8	730
FBB-1000B	1,200	16	40	8	980
FBB-1200B	1,200	20	50	8	1,607
FBB-1500B	1,200	20	50	10	1,870
FBB-1800B	1,000	20	50	12	2,340
FBB-2000B	1,000	20	50	14	3,611

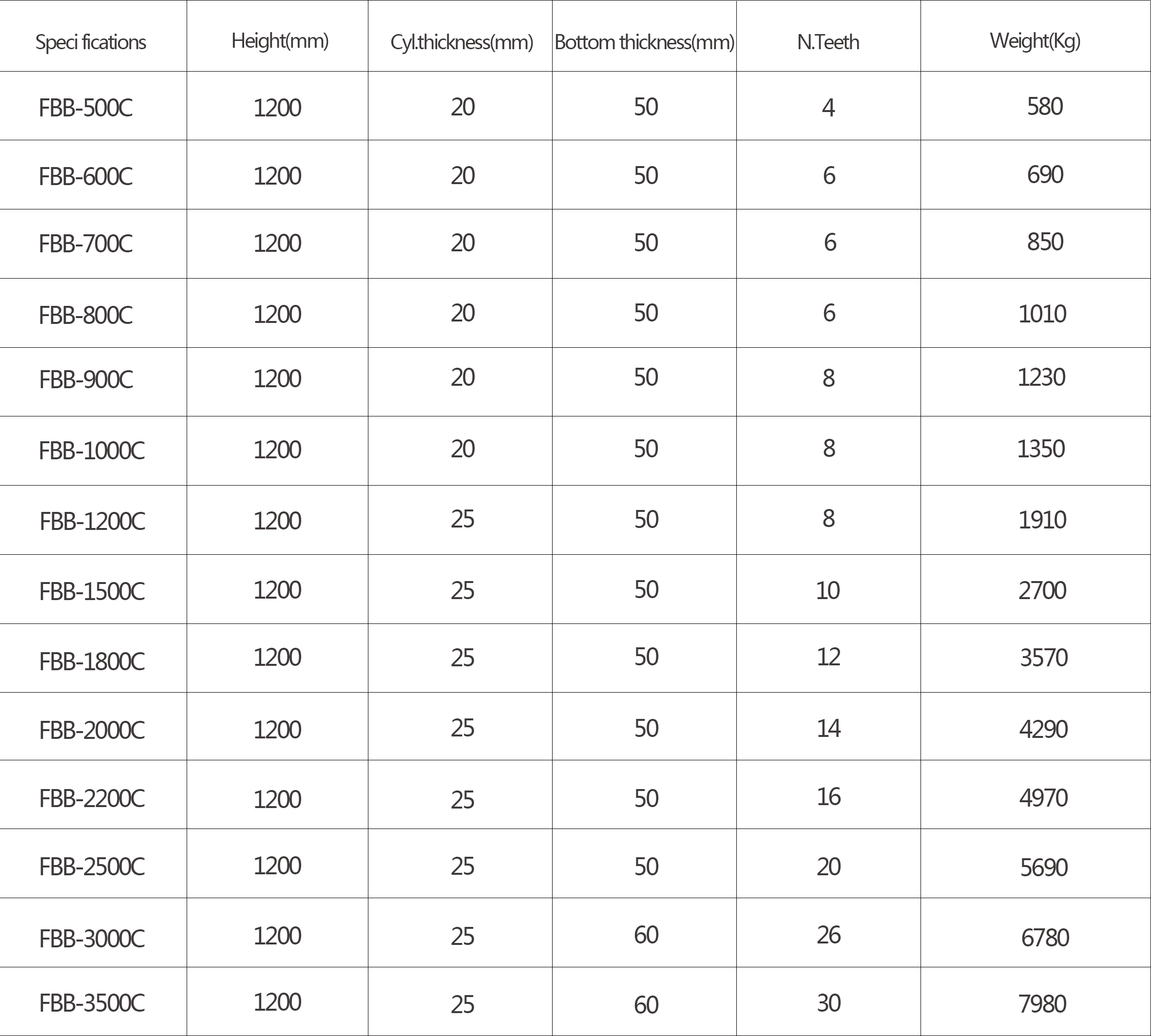

Series C (20000-35000 KN.m)

Model	Height (mm)	Cyl. Thickness (mm)	Bottom Thickness (mm)	Teeth	Weight (kg)
FBB-500C	1,200	20	50	4	580
FBB-600C	1,200	20	50	6	690
FBB-700C	1,200	20	50	6	850
FBB-800C	1,200	20	50	6	1,010
FBB-900C	1,200	20	50	8	1,230
FBB-1000C	1,200	20	50	8	1,350
FBB-1200C	1,200	25	50	8	1,910
FBB-1500C	1,200	25	50	10	2,700
FBB-1800C	1,200	25	50	12	3,570
FBB-2000C	1,200	25	50	14	4,290
FBB-2200C	1,200	25	50	16	4,970
FBB-2500C	1,200	25	50	20	5,690
FBB-3000C	1,200	25	60	26	6,780
FBB-3500C	1,200	25	60	30	7,980
