Technical Specifications
Product Overview

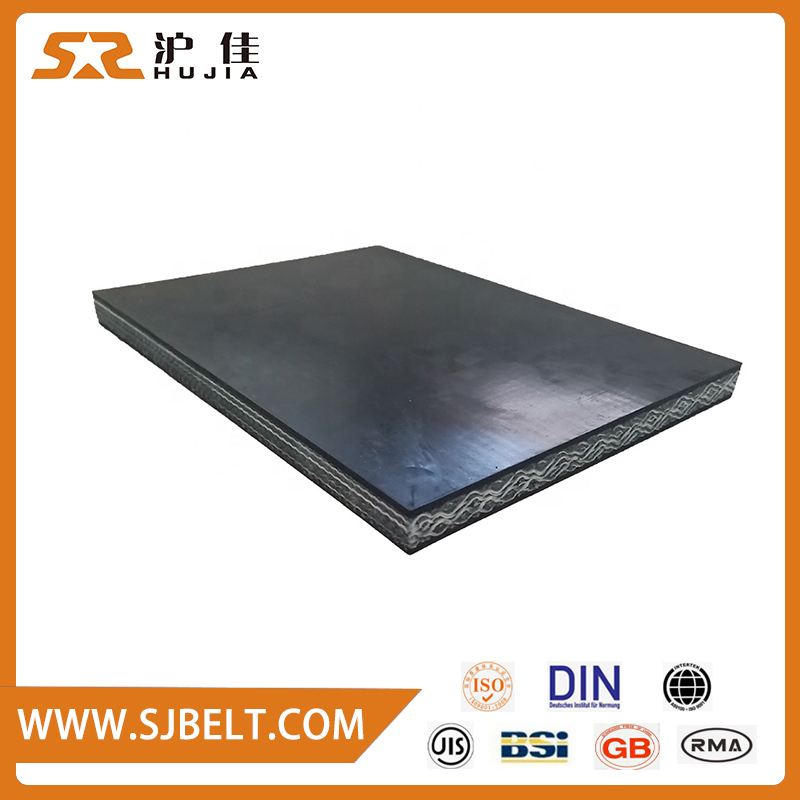

Flame Retardant Conveyor Belt
This high-performance conveyor belt is engineered specifically for demanding underground coal mining environments where fire safety is paramount. Utilizing a robust combination of high-strength polyester and nylon filaments, the belt offers superior durability, low elongation, and excellent shock resistance. Available in both PVC and PVG types, it provides flexible solutions for various slope angles and operational conditions while maintaining full compliance with safety standards.
Technical Specifications
Performance Metrics
0.8 mm
PVC Coating Thickness
16 degrees
PVC Max Slope Angle
4.5 mm
PVG Max Coating Thickness
20 degrees
PVG Max Slope Angle
- Available Types
- PVCPVG
- Compliance Standards
- MT914-2008ISODINJISBSIGBRMA
Construction & Material
Fabric Composition
- Warp: High strength, low elongation polyester filament
- Weft: High strength, moderate modulus nylon filament
Key Features
Flame ResistantAnti-StaticShock ResistantAnti-TearGood TroughabilityWear Resistant
