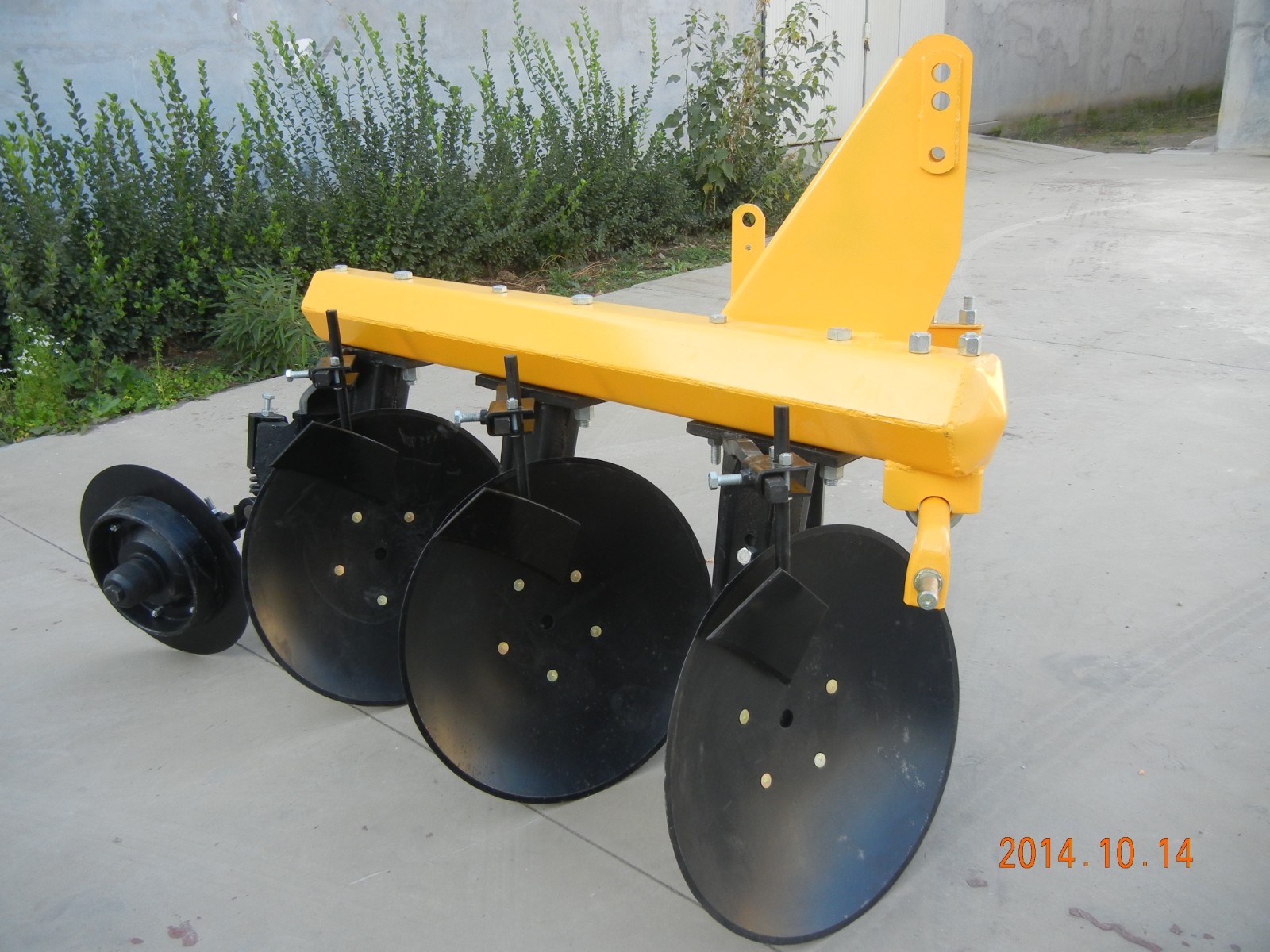

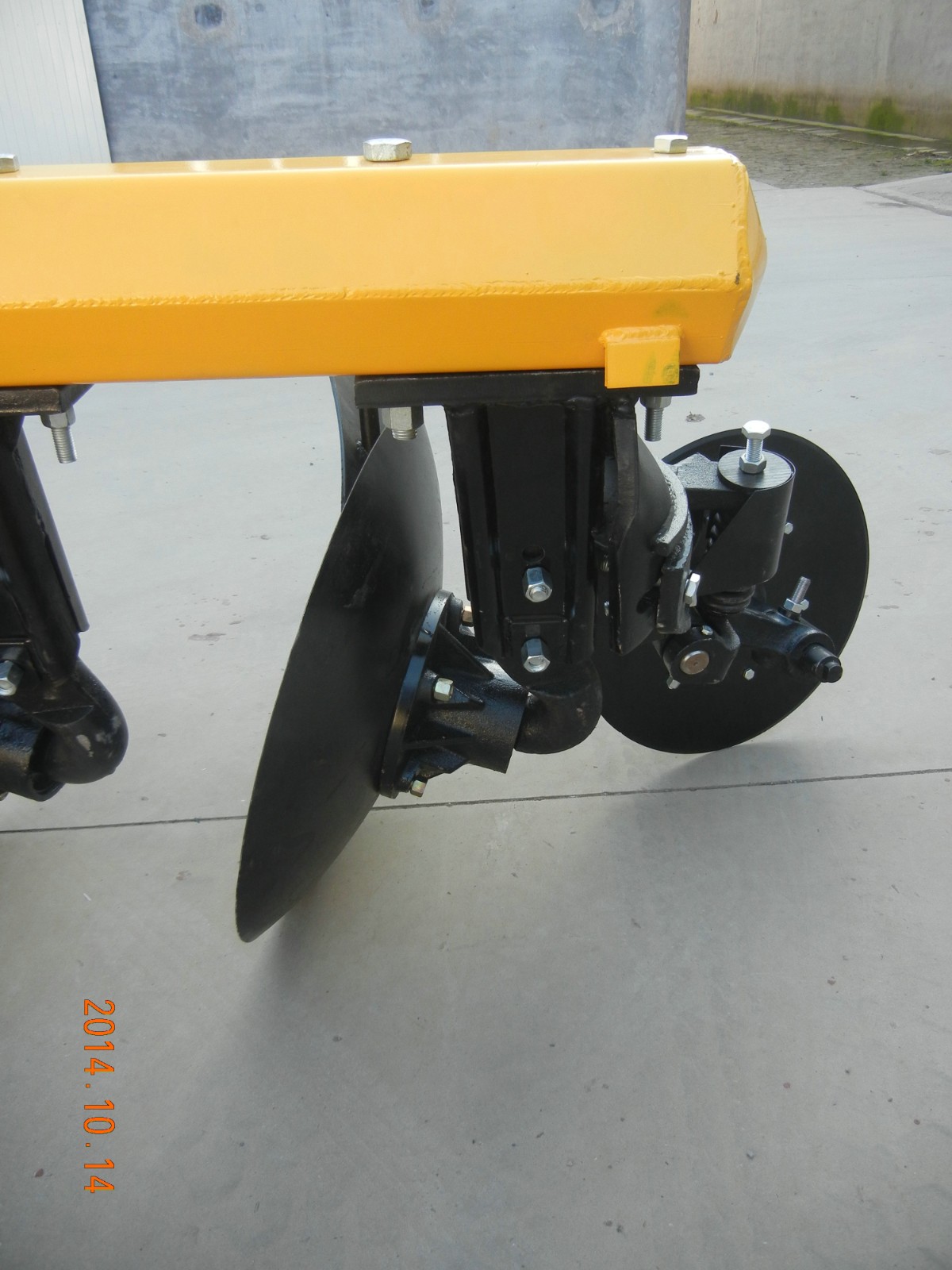

Fish Disc Plow for Soil Preparation
This fish disc plow ensures efficient soil preparation by preventing grass winding and blockages. Its adjustable angle allows for customized use, making it suitable for various soil conditions.
Technical Specifications
Overview
High-Performance Soil Preparation
This fully-suspended disc plow is engineered for efficient soil cultivation, featuring rotary motion discs that prevent clogging and grass winding. Designed for versatility, it excels in challenging conditions including land with weeds, crop stems, and frictional soil containing bricks. The implement provides adjustable plowing angles to ensure optimal soil turning and furrow creation for modern agricultural needs.
Technical Specifications
Performance Metrics
| Model | Working Width (mm) | Discs | Weight (kg) | Required Power (hp) |
|---|---|---|---|---|
| 1LY-2 | 600 | 2 | 350 | 40 |
| 1LY-3 | 900 | 3 | 400 | 60 |
| 1LY-4 | 1,200 | 4 | 470 | 80 |
| 1LY-5 | 1,500 | 5 | 560 | 120 |
- Linkage Type
- Three-point suspension II type
- Working Depth
- 275 mm
Key Features
Operational Benefits
- Anti-clogging design prevents grass winding
- Effective cutting of crop stalks
- Adjustable disc angle for custom soil penetration
- Fully-suspended system for four-wheel tractors
