Fish Disc Plow for Soil Preparation
The fish disc plow is designed for efficient soil turning and furrowing. Its adjustable angle allows for easy cutting of crop stalks, preventing blockages.
Technical Specifications
Overview
Professional Soil Preparation

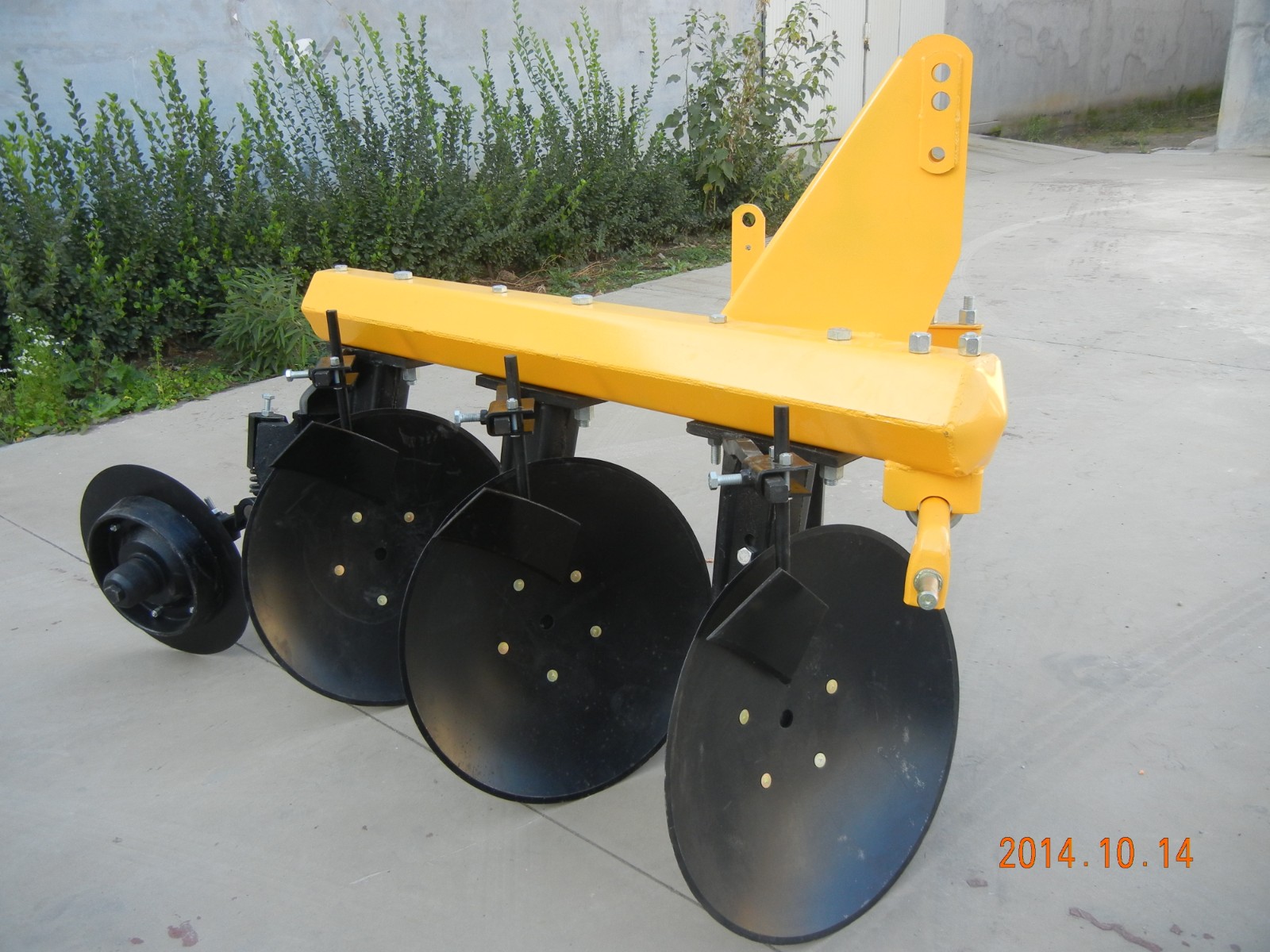

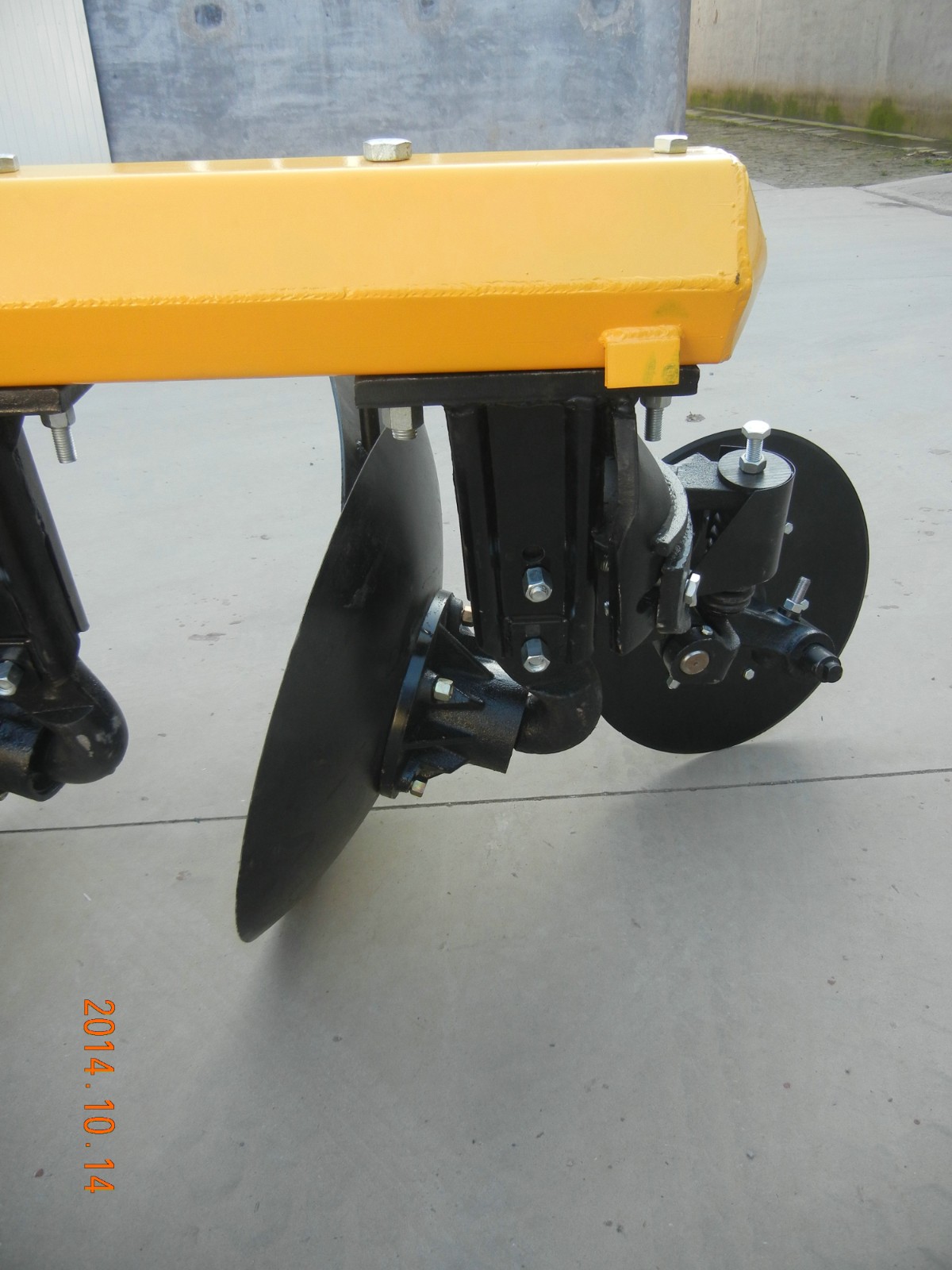

This fully-suspended disc plow is expertly designed for primary tillage operations, featuring rotary motion discs that effectively cut, turn, and bury crop residues. Engineered for challenging terrains, it excels in fields with weeds, heavy stems, and frictional soil containing debris. The implement offers adjustable disc angles to ensure optimal soil penetration and aeration, making it an essential tool for modern agricultural soil preparation.
Technical Specifications
- Linkage System
- Three-point suspension II type
- Working Depth
- 250 mm
- Key Performance Benefits
- No Winding GrassNo BlockageNo Hip Building-upEasy Crop Stalk Cutting
Model Variants
Model Specifications
| Model | Working Width (mm) | Discs | Weight (kg) | Required Power (hp) |
|---|---|---|---|---|
| 1LY-2 | 600 | 2 | 350 | 40 |
| 1LY-3 | 900 | 3 | 400 | 60 |
| 1LY-4 | 1,200 | 4 | 470 | 80 |
| 1LY-5 | 1,500 | 5 | 560 | 120 |
