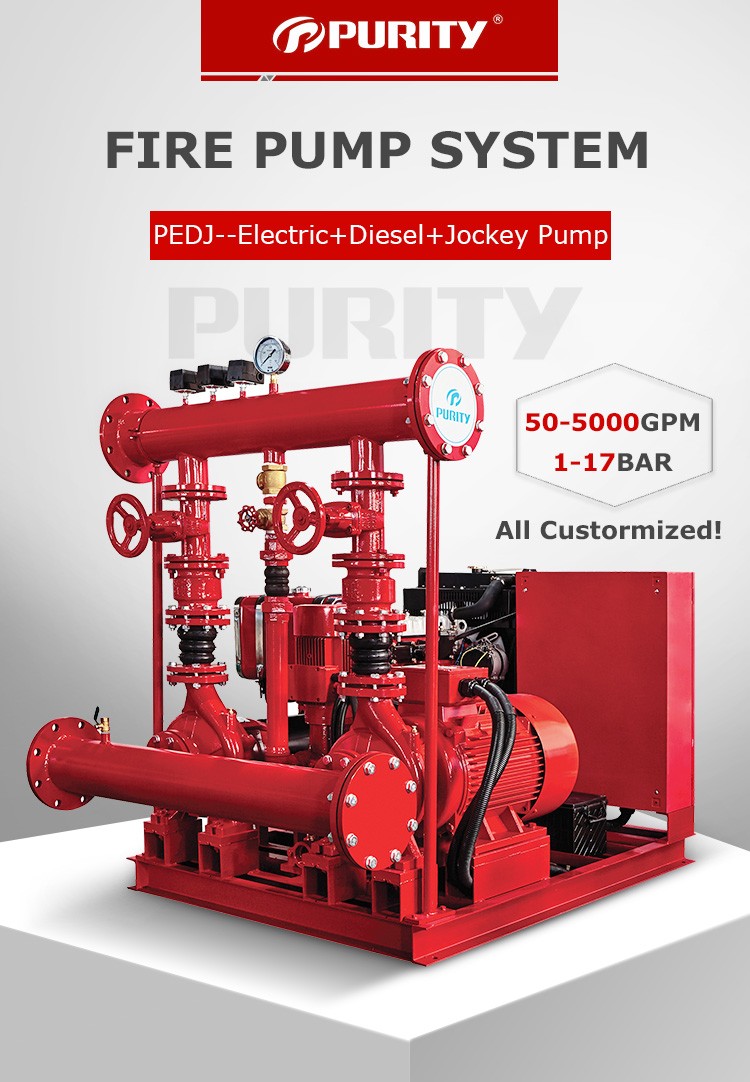

Fire Fighting Pump System
This fire fighting pump system offers flow rates from 50 to 5000 GPM and head/pressure from 5-17 bar. It automatically switches between three pumps and can operate during power outages.
Technical Specifications
Overview
Reliable Fire Suppression Solution
This comprehensive fire fighting pump system is designed to provide consistent water pressure and flow for critical fire protection. By integrating electric, diesel, and jockey pumps, the system ensures reliable operation even during power outages, making it an essential safeguard for high-rise buildings, warehouses, and industrial facilities. The system is fully customizable to meet specific flow and pressure requirements, offering a robust, redundant solution for effective emergency response.
Performance & Technical Specs
Flow Rate
50 GPM
Minimum Flow
5,000 GPM
Maximum Flow
- Pressure Range
- 5-17 bar (50-170m)
- Motor Specifications
- YE3 High EfficiencyIP55 ProtectionClass F Insulation

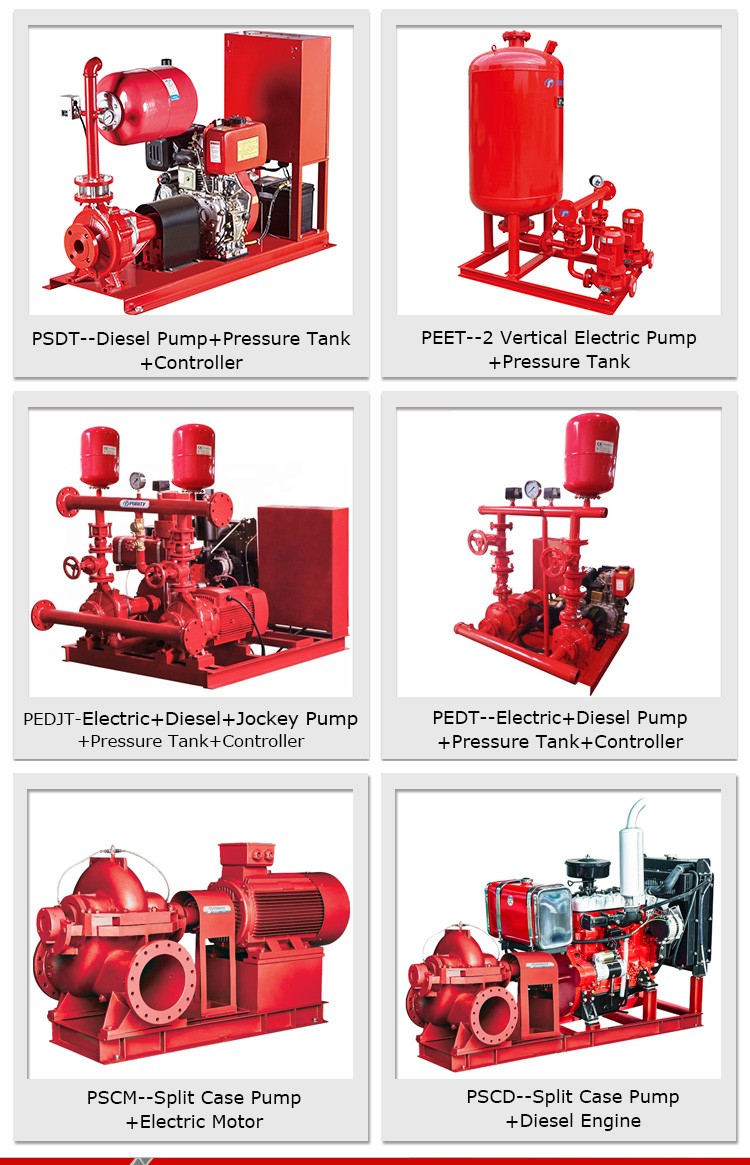

System Configurations
Available System Configurations

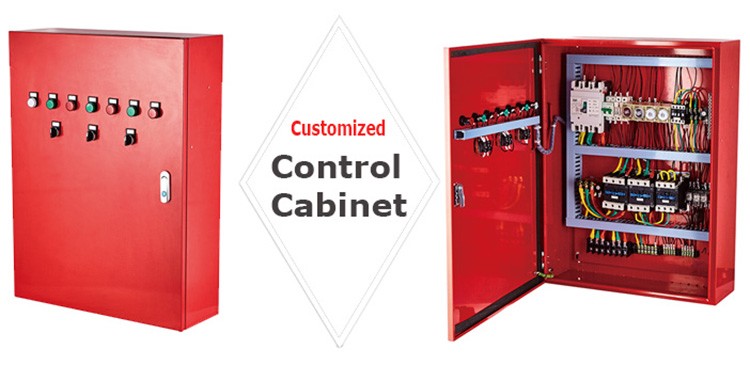

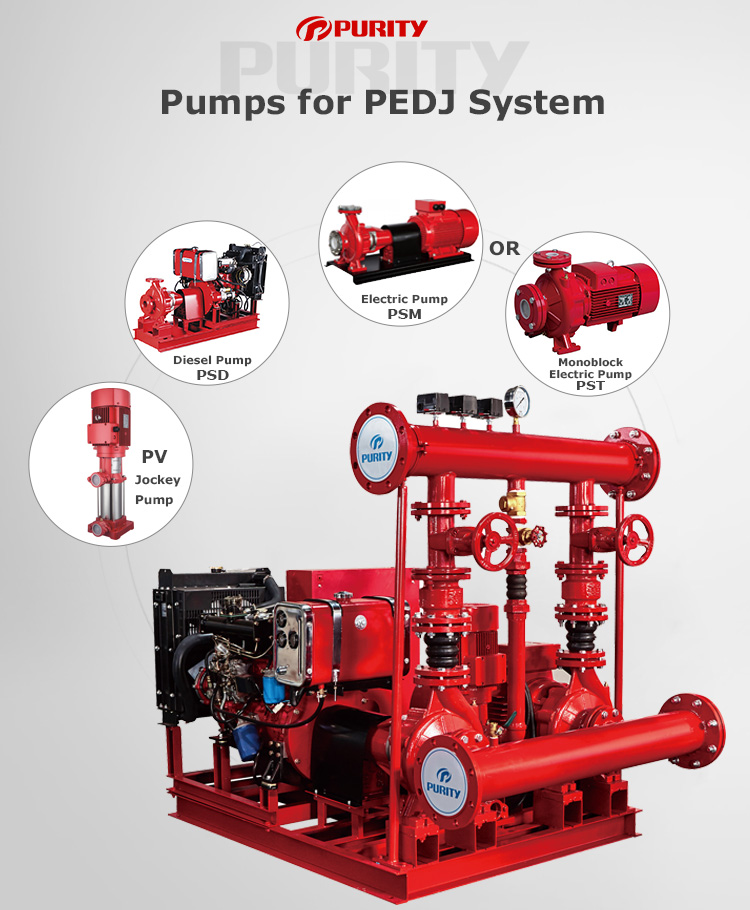

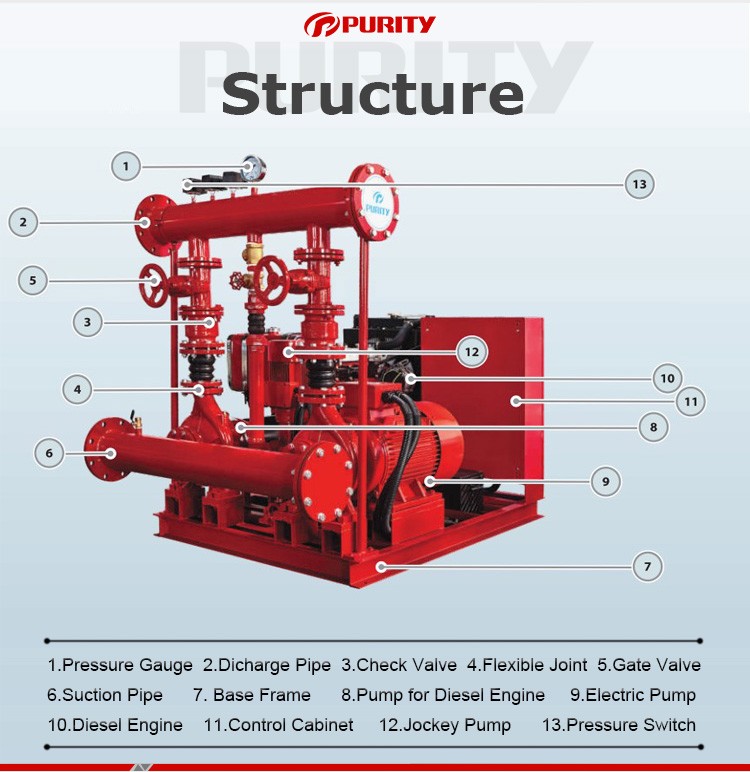

- PEDJ: Electric pump + Diesel pump + Jockey pump + Control Cabinet
- PDJ: Diesel pump + Jockey pump + Control Cabinet
- PEJ: Electric pump + Jockey pump + Control Cabinet
- PED: Electric pump + Diesel pump + Control Cabinet
Construction & Quality
Compatible Pump Types
End SuctionHorizontal Split CaseMonoblock CentrifugalDiesel DrivenMultistageVertical Turbine
- Build Materials & Components

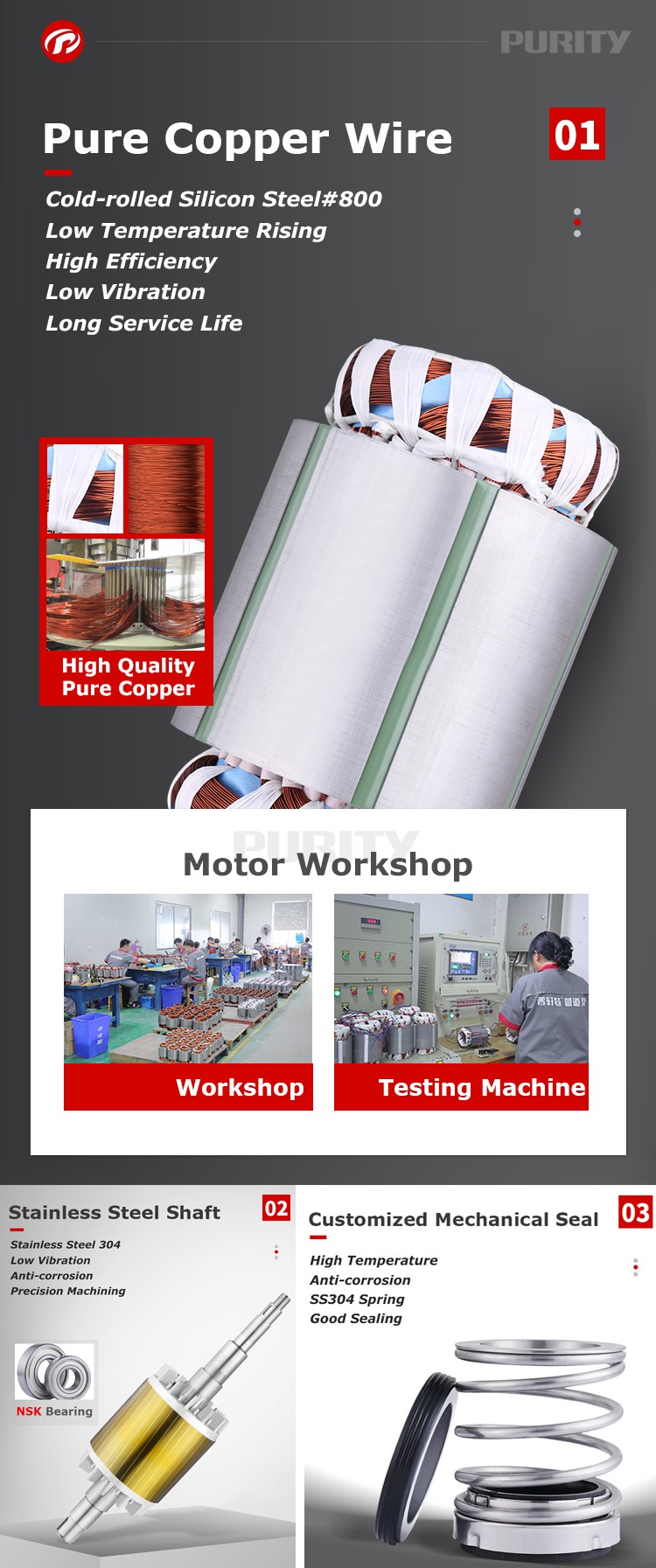

- NSK BearingsWear-resistant mechanical sealAnti-corrosive coatingStainless steel options available
Applications
Suitable Applications
- High-rise buildings
- Industrial warehouses
- Commercial facilities
- Villas and residential complexes
- Hospitals and schools
- Transportation stations
Certifications & Standards
- Manufacturing Standards
- ISO 9001 Manufacturing Facility
