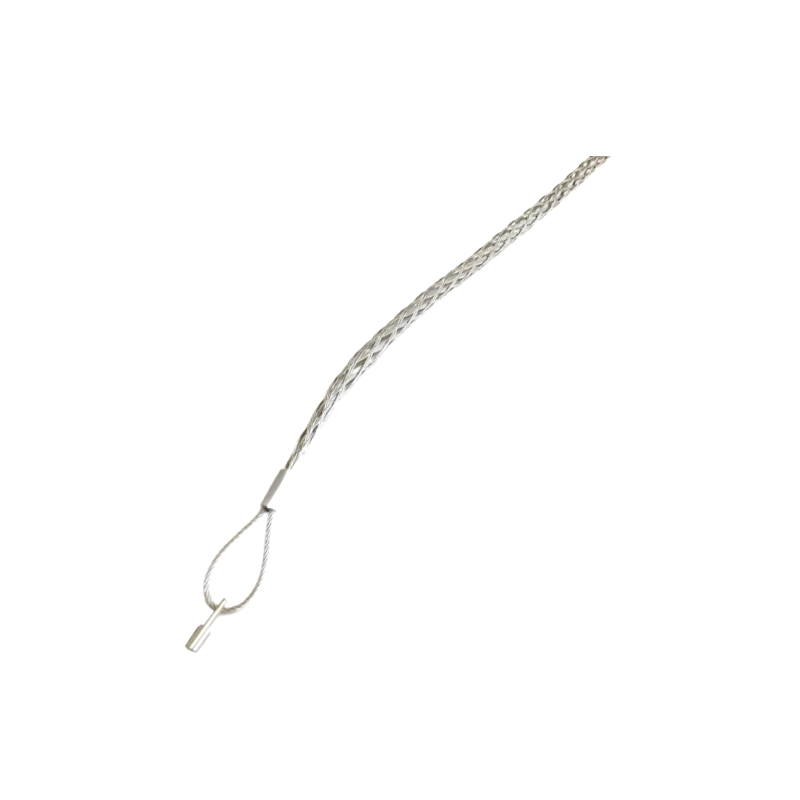

Fiber Optic Cable Pulling Grip with Integral Eye
Fiber optic pulling grips facilitate the installation of fiber optic communication lines. These grips easily attach to cables, are reusable, and suitable for underground, overhead, and through-conduit pulls.
Technical Specifications
Product Overview
Professional Fiber Optic Installation
These fiber optic pulling grips are engineered for the efficient and secure installation of communication lines. Designed for versatility, they are suitable for underground, overhead, through-conduit, and enclosure-type pulls. The grips are fully reusable and feature an integral pulling eye that mates easily with a swivel, ensuring reliable performance during demanding cable installation projects.
- Applications
- UndergroundOverheadThrough-conduitEnclosure pulls
Technical Specifications
- Construction
- High-strength galvanized steel strands
- Compatibility
- Compatible with standard pulling swivels
Size & Dimensions
Size Selection Table
| Part Number | Cable Diameter (mm) | Bale Length (mm) | Mesh Length (mm) |
|---|---|---|---|
| CPG0406 | 4.0-5.8 | 50.8 | 177.8 |
| CPG0609 | 6.0-9.2 | 50.8 | 215.9 |
| CPG0915 | 9.2-15.4 | 50.8 | 355.6 |
| CPG1519 | 15.7-18.8 | 50.8 | 406.4 |
