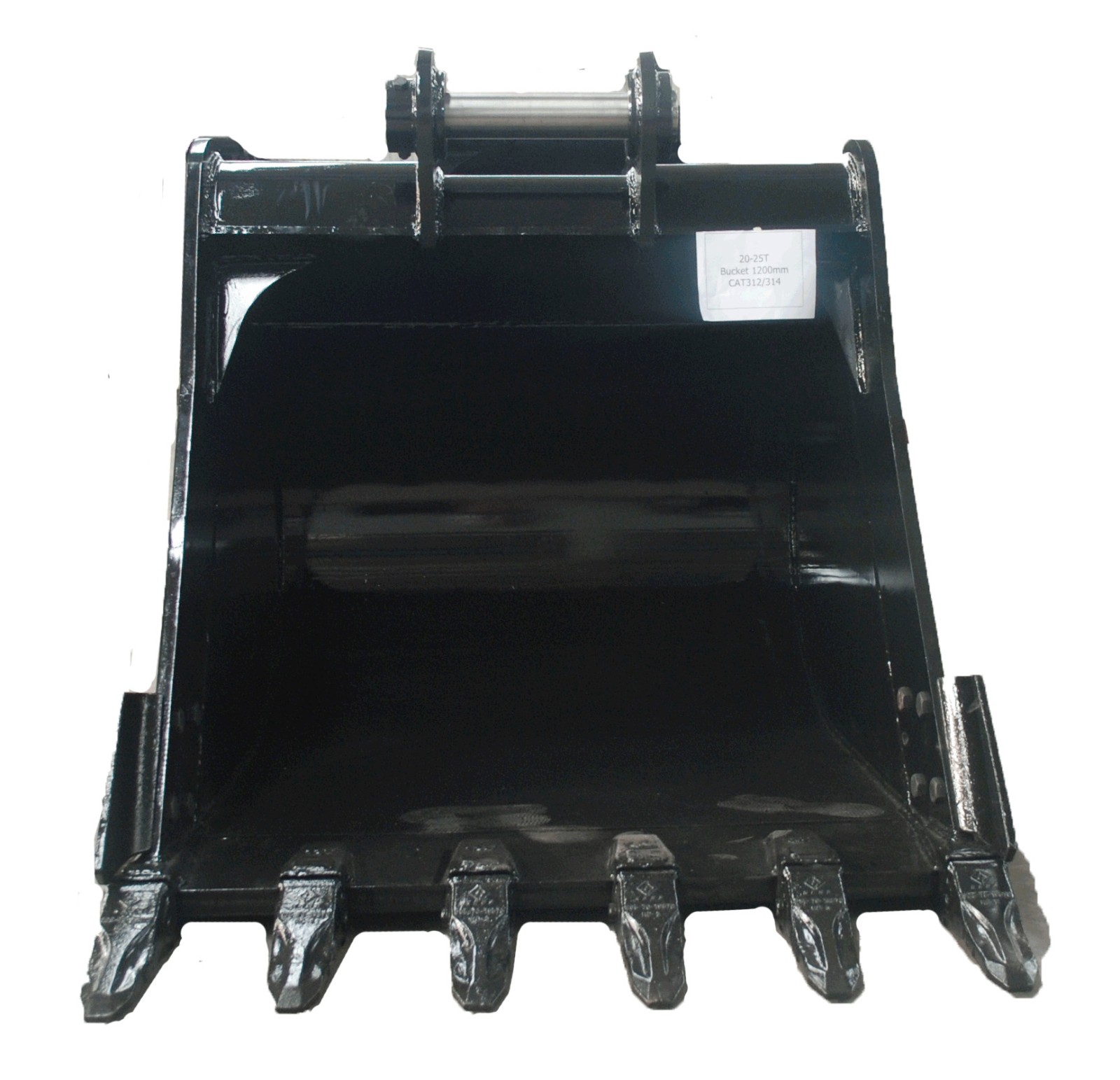

Excavator General Purpose Bucket
This general purpose bucket is designed for excavators for digging and loading applications. High strength steel increases stiffness and wear resistance ensuring a longer life.
Technical Specifications
Product Overview
General Purpose Excavator Bucket
This general purpose bucket is designed for durability and high performance in various digging applications. Constructed with high-strength steel and a diamond-folded top beam, it ensures structural integrity and a long service life. The design includes a dual-layer side wall and a hard-wearing cutting edge to protect against abrasion and damage in demanding soil conditions.
Performance Specifications
Machine Tonnage Range
0.8 Ton
Minimum Tonnage
48 Ton
Maximum Tonnage
- Custom Width Range
- 9 to 72 inches
Materials and Construction
- Cutting Edge Material
- HARDOX 400 or equivalent (HB400)
- Key Structural Features
- High strength steel baseDual layer side wallDiamond folded top beamOptional back wear strips
Compatibility and Options
Compatible Teeth Systems
- Kmax
- Usco
- Ultra Lock
