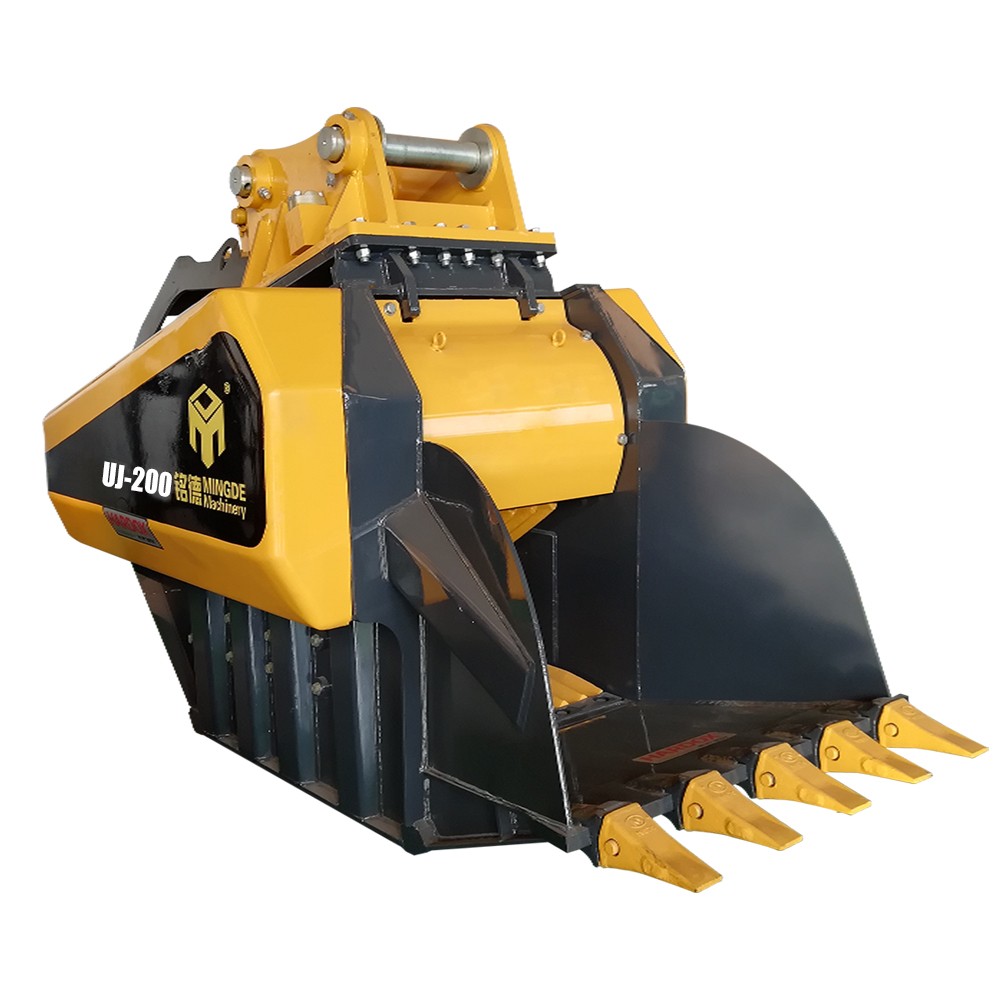

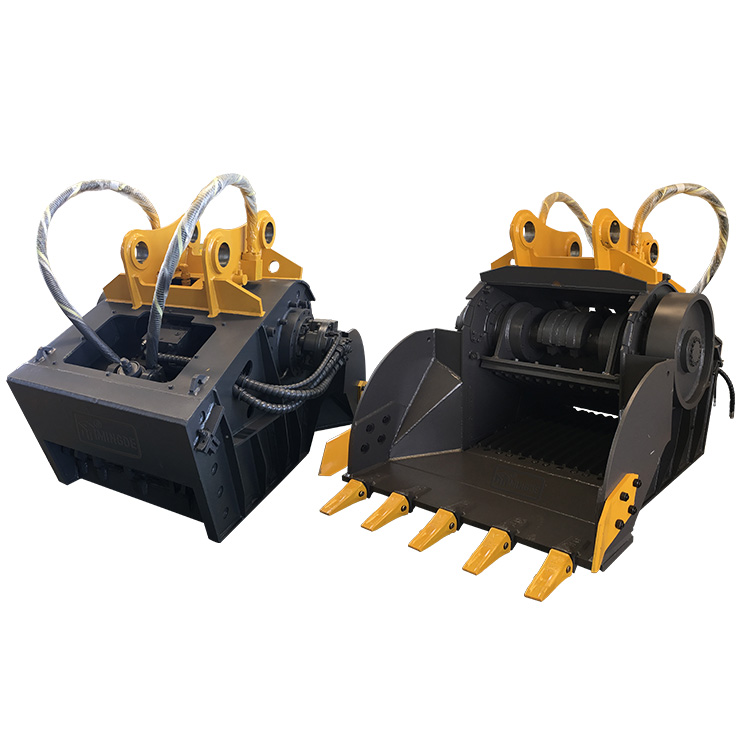

Excavator Crusher Bucket
This excavator attachment efficiently crushes concrete, rock, and other materials on-site. It features a direct drive system for simplified maintenance and easily releases clogged materials by reversing the rotation.
Technical Specifications
Overview
High-Efficiency Excavator Crusher Bucket
This hydraulic jaw crusher bucket is designed for on-site processing of mine rocks, granite, and construction waste, significantly reducing transportation and disposal costs. Featuring a design derived from Japan's Ueda Company, it utilizes high-quality imported hydraulic components to ensure stable and reliable performance in demanding demolition and recycling environments. The deep crushing chamber and adjustable discharge opening provide maximum flexibility and high output for various material sizes.
Key Features
Key Benefits
- Imported hydraulic motor and eccentric shaft mechanism
- Deep crushing chamber with no dead zones for improved feeding
- Gasket-type discharge opening adjustment device
- Adjustable output size ranging from 15mm to 120mm
- Robust construction featuring Hardox wear parts
Material Compatibility
- Processable Materials
- GraniteBluestoneRiver CobblestonesConstruction WasteCement BlocksConcreteDemolition Debris
Technical Specifications
Model Comparison
| Model | Excavator Weight (t) | Bucket Capacity (m³) | Oil Flow (l/min) | Feeding Size (mm) | Weight (kg) |
|---|---|---|---|---|---|
| UJ-120 | 10-18 | 0.45 | 180 | 400*550 | 1,359 |
| UJ-200 | 18-30 | 0.74 | 260 | 500*700 | 3,450 |
| UJ-300 | 30-45 | 1.15 | 260 | 500*1000 | 4,220 |
| UJ-670 | 50-70 | 1.47 | 450 | 670*1150 | 6,850 |
Performance Metrics
Discharge Adjustment Range
15 mm
Min Discharge
120 mm
Max Discharge
Durability
Wear Components
Hardox SteelReplaceable TeethHeavy-Duty Hydraulic Motor
